Description
Key Technical Specifications
- Product Model: ABB TP830
- Order Code: 3BSE018114R1
- Product Type: Processor Unit Baseplate
- System Platform: ABB AC800M / Advant OCS
- Compatible CPUs: PM851, PM856, PM860, PM861, PM864, PM865, PM866
- I/O Interface: Built-in Electrical ModuleBus (S800 I/O)
- Expansion Bus: CEX-Bus (Left Side)
- Power Input: 24V DC (Redundant Capable)
- Mounting: Standard 35mm DIN Rail
- Protection Class: IP20
- Status: Legacy / Discontinued (Surplus Only)
Product Introduction

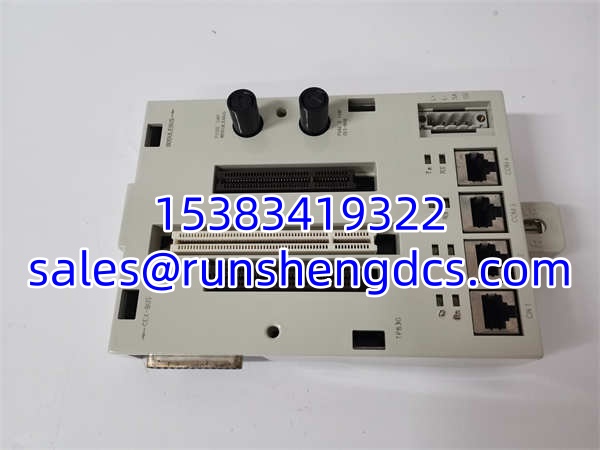

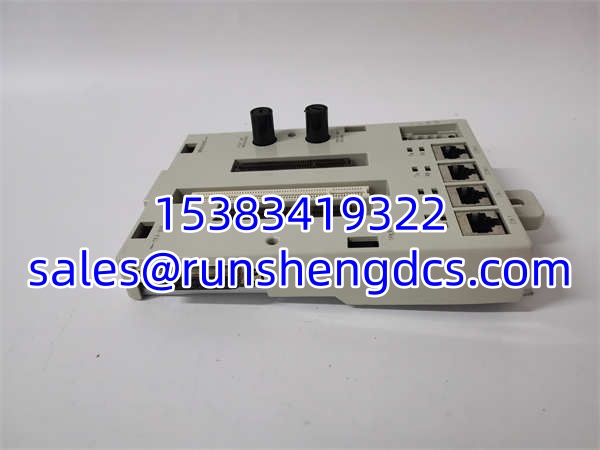

AC800M processors don’t just float in mid-air; they need a home. The ABB TP830 is that home. It’s the baseplate that bolts to the DIN rail, accepts the PM8xx CPU, and provides the screw terminals for 24V power, Ethernet, and the S800 I/O bus. You’re buying this because the old one cracked during a retrofit, or you’re building a new panel with legacy CPUs and need the correct mechanical interface.
Bottom line — it’s passive hardware, but it’s the foundation. The ABB TP830 routes the 24V DC to the CPU and the S800 I/O cluster. It also houses the CEX-Bus connector on the left for communication expansion. If you lose the locking tabs or the DIN rail clip breaks, the CPU will vibrate loose and trip a “Module Missing” fault. Don’t reuse a baseplate with damaged mechanical retention; it’s not worth the downtime risk.
QA/QC Transparency SOP
We don’t just clean these and ship them. Here’s the actual bench process for every ABB TP830:
- Intake & Origin Verification: Visual inspection for cracked DIN rail clips, damaged screw terminals, or corrosion on the backplane connector pins. We verify the 3BSE018114R1 code matches the physical label.
- Live Functional Testing: Seated in a verified AC800M test rack with a known-good PM861 CPU. We verify 24V pass-through, S800 I/O bus communication, and CEX-Bus connectivity.
- Electrical Parameter Tests: Continuity check on all power and signal paths. Megger test on 24V input to ground. If the backplane pins are bent or corroded, it fails.
- Mechanical Inspection: DIN rail clip tension test. Screw terminal torque verification. If the CPU doesn’t lock securely, it fails.
- Final QC & Anti-Static Packaging: Functional test report generated. Module sealed in ESD shielding. No bare-hand handling after testing.
Field Engineer Gotchas
- DIN Rail Clip Failure: The plastic clips on the ABB TP830 get brittle with age and heat. Risk: CPU vibrates loose during pump starts or compressor cycles. Fix: Inspect the clips before install. If they’re cracked or loose, replace the baseplate. I’ve seen a “bad CPU” diagnosis that was actually a broken clip letting the module bounce.
- S800 I/O Bus Termination: The right side of the ABB TP830 has the S800 electrical bus. Risk: Missing or failed termination causes intermittent I/O faults. Fix: Verify the TB850 (or equivalent) terminator is present and seated. Don’t assume the baseplate has internal termination; it doesn’t.
- CEX-Bus Pin Damage: The left-side CEX-Bus connector is fragile. Risk: Bent pins prevent communication expansion modules from working. Fix: Inspect with a flashlight before plugging in the CEX unit. If pins are bent, don’t try to straighten them; replace the baseplate.
- 24V Power Wiring: The ABB uses screw terminals, not spring clamps. Risk: Loose screws cause voltage drop and CPU resets. Fix: Torque to 0.5 Nm. Check with a torque screwdriver, not just a hand-tightened driver.

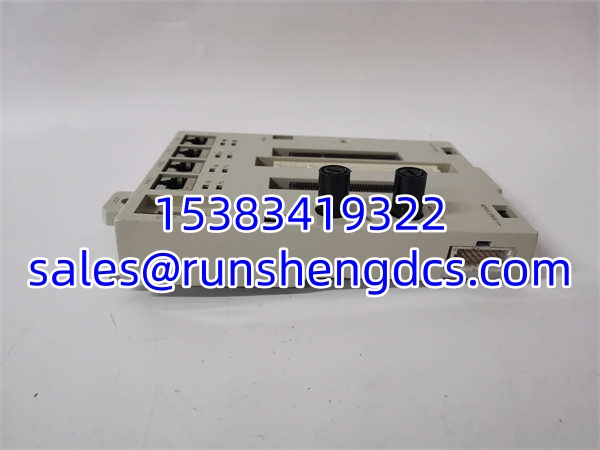

ABB TP830
Application Scenarios
- AC800M Controller Rebuilds: Replacing a failed CPU. The ABB is reused if mechanically sound, but verify the backplane pins first.
- Adding remote I/O to an existing AC800M system. The baseplate’s built-in electrical ModuleBus eliminates the need for a separate CI851 communication adapter for local I/O.
- Legacy Panel Upgrades: Migrating from Advant OCS to AC800M. The ABB fits the same DIN rail footprint as older Advant baseplates, simplifying mechanical retrofits.
FAQ
No. The baseplate carries 24V power and backplane signals. Pulling it while energized will arc and destroy the CPU and I/O modules. Power down the entire rack, wait for discharge, then replace.
No. The PM891 uses the H or V baseplate, which has a different backplane pinout. The standard ABB is for PM851/PM856/PM860/PM861/PM864/PM865/PM866. Check the CPU manual before ordering.
Does this include the CEX-Bus terminator?
No. The ABB has the CEX-Bus connector, but the terminator (TB850) is a separate part. If you’re not using CEX expansion, you must install the terminator.
What is the MTBF on these baseplates?
ABB doesn’t publish MTBF for passive baseplates. Field data suggests 15-20 years for mechanical clip failure or terminal corrosion. If your baseplate is >15 years old, inspect the clips and terminals closely during maintenance.
Yes. We connect a known-good I/O module and verify communication. If the bus is dead, the baseplate fails. No exceptions.
Yes, but you need two ABB baseplates (one per CPU) and the correct CEX-Bus cabling for redundancy. The baseplate itself doesn’t provide redundancy; it’s just the mechanical interface.
