Description
Key Technical Specifications
- Manufacturer: ABB
- Product Type: Microprocessor-based Differential Protection Relay
- Differential Protection Accuracy: 0.1%
- Rated Voltage: 100V to 600V AC
- Rated Current: 0.5A to 5A
- Communication Interfaces: RS-232, CAN
- Protection Level: IP65
- Dimensions: 220 x 160 x 80 mm
- Weight: 2.5 kg
- Mounting Style: Wall-mount / Panel Mount
- Core Protection Functions: Differential, Overcurrent, Earth Fault
Product Introduction

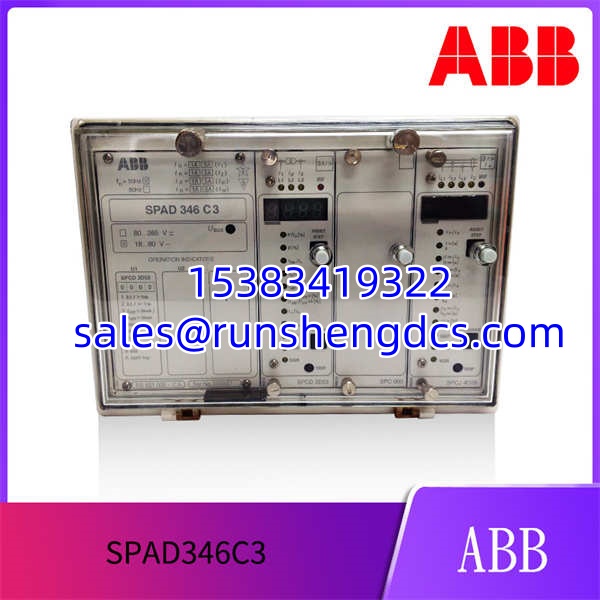

Internal winding faults in transformers or generators can cause catastrophic equipment damage in milliseconds. The ABB SPAD346C3 acts as a high-speed numerical differential relay, specifically designed to detect internal current imbalances and isolate faults before they destroy critical power assets.
This module utilizes advanced digital signal processing to achieve a 0.1% differential protection accuracy, effectively preventing both false trips and failure to operate. Encased in a rugged IP65 enclosure, it withstands harsh industrial and outdoor environments. Bottom line — it provides the exact, fast-acting internal fault protection that overcurrent relays simply cannot deliver.
QA/QC Transparency SOP
Surplus protection relays demand absolute certainty before field deployment. We validate every SPAD346C3 using this exact protocol:
- Intake & Origin Verification: We inspect the chassis for physical damage, verify terminal integrity, and confirm the SPAD346C3 nameplate matches our inventory records.
- Live Functional Testing: The relay is powered up on a dedicated test bench to validate microprocessor boot-up, self-diagnostics, and front-panel LED indicators.
- Electrical Parameter Tests: Input voltage tolerance and relay output contacts are verified using calibrated multimeters and signal injectors.
- Firmware/Config Verification: We read the internal memory to confirm the firmware revision and ensure no hidden configuration locks are active.
- Final QC & Anti-Static Packaging: Units are sealed in anti-static bags with rigid foam inserts to prevent transit damage to the internal PCBs.
Field Engineer Gotchas
- CT Burden & Ratio Mismatch: Differential relays are highly sensitive to Current Transformer (CT) sizing. War story: I’ve seen a relay nuisance-trip during motor startup because the secondary wiring run was too long for a 5A CT, causing excessive burden. Using a 1A secondary CT or upsizing the CT ratio solves this. Always calculate your CT burden before wiring.
- Fourier Filter Limitations: The SPAD346C3 uses a digital Fourier filter to extract the fundamental frequency. It will NOT work correctly if connected to the output side of a Variable Frequency Drive (VFD). Keep it strictly on the line side or standard grid frequency.
- Communication Wiring: The RS-232 and CAN ports require proper shielding. Unshielded cables in a high-voltage substation will corrupt data and cause communication timeouts.
- ESD Sensitivity: The microprocessor and DSP chips are highly susceptible to electrostatic discharge. Always wear a grounded wrist strap when handling the bare board or connecting test leads.
ABB-SPAD346C3
Application Scenarios
- Power Transformers: Protecting step-up/step-down transformers from internal winding short circuits and ground faults.
- Industrial Motors & Generators: Detecting stator winding faults in large synchronous motors and backup generators.
- Short Cable & Overhead Lines: Providing high-speed differential protection for critical short transmission lines where overcurrent grading is too slow.
FAQ
Q: Can I use this relay to protect a motor fed by a VFD?
No. The SPAD346C3 uses a Fourier filter that suppresses frequencies other than the set base frequency. It is not designed to measure VFD output. Use it on the line side or for standard grid-frequency equipment.
Q: What is the difference between SPAD346C1, C2, C3, and C4?
These suffixes denote specific hardware configurations, communication options, or input/output variations within the SPAD346 series. Always match the exact “C” suffix to your existing panel cutout and wiring diagram.
Q: Does this relay provide overcurrent protection as well?
Yes. While primarily a differential relay, the integrates overcurrent and earth fault protection functions, reducing the need for multiple standalone relays.
Q: How do I connect this to my SCADA system?
The unit features RS-232 and CAN communication interfaces. You may need a protocol gateway depending on whether your SCADA uses Modbus, DNP3, or another protocol. Verify the exact protocol supported by your specific C3 variant.
Q: What is the lead time for this surplus part?
We typically ship within 24-48 hours from our warehouse. Surplus inventory for specific protection relays fluctuates. If you need multiple units for a panel upgrade, confirm exact availability before placing the order.
