Description
Key Technical Specifications
- Manufacturer: ABB
- Module Type: Feeder and Motor Protection Relay
- Application: Medium Voltage Feeders and Industrial Motors
- Protection Functions: Overcurrent (50/51), Ground Fault (50N/51N)
- Motor Protection: Stall, Unbalance, Undercurrent, and Thermal Overload
- Communication: Built-in serial port for SCADA/DCS integration
- Input Signals: Requires external Current Transformers (CTs) and VTs
- Output Contacts: Multiple programmable relay outputs for tripping
- Mounting Style: Flush panel mount or DIN rail
- Operating Temperature: Standard industrial range (-20°C to +60°C)
- Power Supply: Auxiliary DC or AC supply required
- Standards Compliance: IEC 60255 protection standards
Product Introduction
You have a 6kV feeder or a critical 500HP motor, and a phase-to-ground fault just occurred. You need the circuit breaker to trip in milliseconds before the cable melts or the motor burns out. That is exactly what the ABB REX521GHHPSH07G is built for. It is a compact, microprocessor-based protection relay designed specifically for medium voltage feeders and industrial motors. Instead of relying on bulky, outdated electromechanical relays, this unit processes CT and VT signals digitally to make split-second tripping decisions.
Why does this specific relay matter for your switchgear? Because it consolidates multiple protection functions into one small footprint. It handles overcurrent, ground fault, and motor stall protection natively. The “GHHPSH07G” suffix dictates specific factory settings, like language (likely English/Chinese) and exact communication protocols. Bottom line—it acts as the digital brain of your switchgear cubicle, ensuring that when a fault happens, only the affected equipment trips, keeping the rest of your plant running.
Troubleshooting Quick Reference
- Relay is Completely Dead (No Display): No auxiliary power. Measure 24V DC or 110V AC at the auxiliary power terminals. 80% chance it’s a blown internal fuse or a tripped breaker in the control circuit.
- Display Works but Shows “Comm Fail”: Relay can’t talk to the DCS. Check the serial communication wiring (RS-485). Verify the baud rate and node ID match the SCADA configuration.
- Nuisance Tripping During Motor Start: Inrush current is exceeding the overcurrent setpoint. Check the motor stall and startup inhibit settings in the relay menu. You may need to adjust the time-dial curve.
- Relay Tripped but No Fault Recorded: Transient event or external manual trip. Check the binary inputs. Someone might have manually closed a trip contact, or a loose wire caused a momentary ground fault signal.
- Blank Screen After Power Cycle: Internal firmware glitch. Cycle the auxiliary power supply. If it fails to boot, the internal flash memory might be corrupted and the unit needs replacement.
Application Scenarios & Pain Points
- Industrial Motor Control Centers (MCCs): Protecting large induction motors from phase unbalance and thermal overload. The relay calculates thermal capacity based on actual current, preventing premature trips during heavy load cycles.
- Medium Voltage Distribution Feeders: Indoor substations where space is tight. The compact REX521 replaces older, larger relays while providing precise overcurrent and ground fault coordination.
- Petrochemical Pump Skids: Environments with high EMI from VFDs. The REX521 features robust internal filtering to prevent false tripping caused by variable frequency drive harmonics.

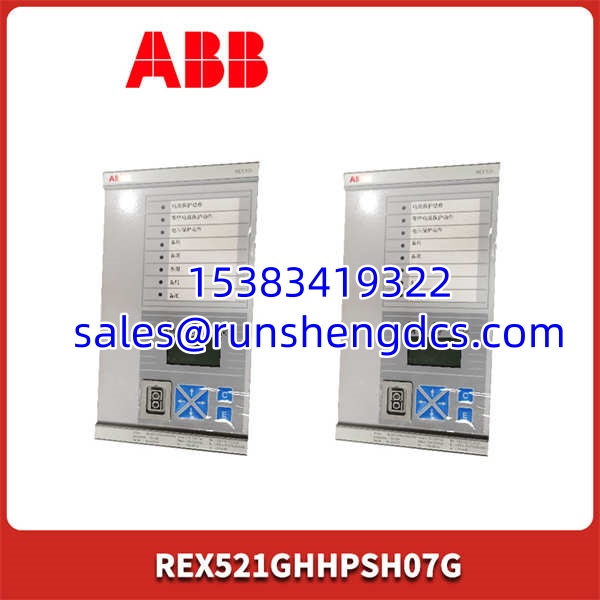

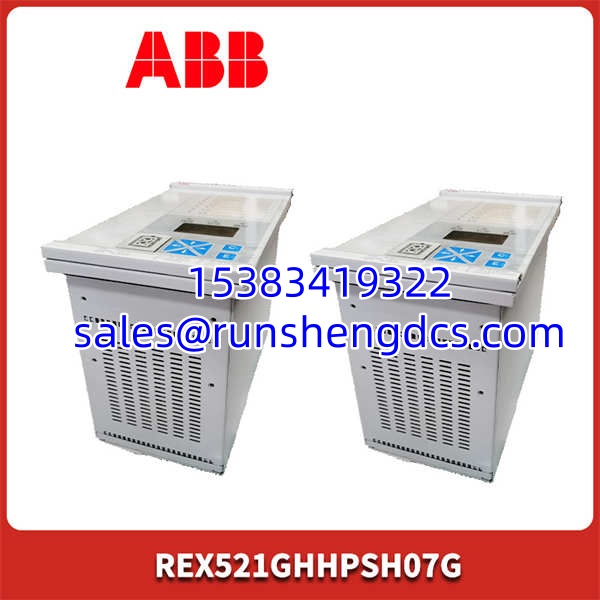

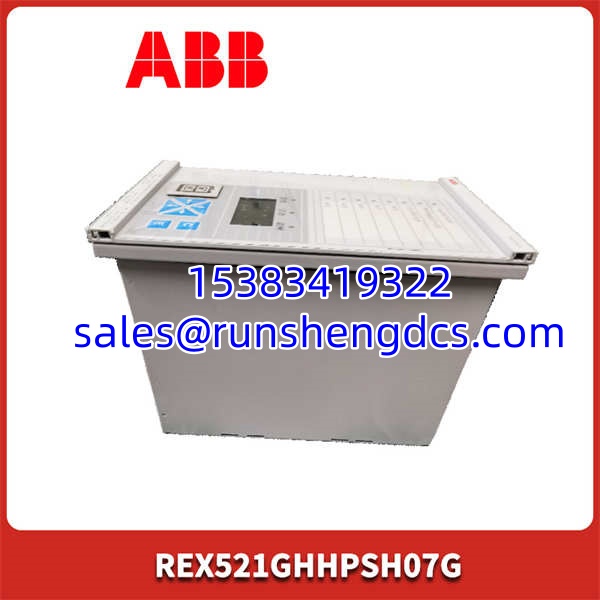

ABB-REX521GHHPSH07G
Compatible Replacement Models
- ✅ Drop-in Replacement: REX521GHHPSH07G. Exact match. Ensure the suffix matches precisely, as it dictates communication language and factory defaults.
- ✅ Drop-in Replacement: REX521GHHPSH50G / 51G. Same base model with different suffixes. These are functionally identical but may have different default language packs or minor hardware revisions. Verify wiring matches.
- ⚠️ Software Compatible (Hardware Upgrade): ABB REF610 Series. If you need IEC 61850 communication or advanced protection logic, the REF610 is the modern successor. Requires rewiring the CT/VT circuits and completely reprogramming the protection logic. Labor time: ~8 hours.
- ❌ Hardware Incompatible: ABB SPAJ140C. This is a generic overcurrent relay. Do not attempt to substitute if your application requires motor protection or ground fault logic. The SPAJ140C lacks the advanced motor stall and thermal overload algorithms.
