Description
Key Technical Specifications
- Product Model: PP846A / 3BSE042238R2
- Manufacturer: ABB
- Product Category: Control Display Panel / HMI
- Display Size: 10.4-inch TFT Color Screen
- Resolution: 800 × 640 pixels
- Signal Inputs: 36 channels (freely selectable types)
- Measurement Accuracy: 0.2%
- Communication Interfaces: RS-485, RS-232, Ethernet
- Supported Protocols: Modbus RTU
- Product Net Weight: 3.115 kg
- Input Capabilities: Temperature, Pressure, Liquid Level, Flow Rate
Product Introduction

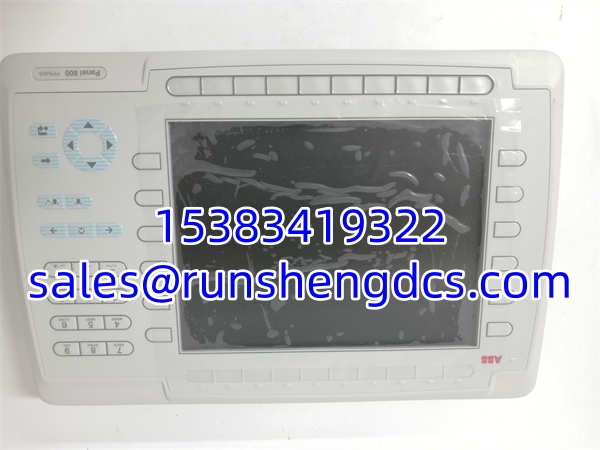

When a legacy control room display dies, you don’t have time to guess if the replacement will talk to your PLC. The ABB PP846A (3BSE042238R2) is a dedicated operator panel from the Panel 800 series, built specifically for human-machine interaction in industrial control systems. It features a 10.4-inch TFT color display (800×640 resolution) paired with physical function keys and a numeric keypad. Instead of relying solely on a touchscreen, this hybrid design ensures operators can safely start/stop equipment, switch modes, and set parameters even when wearing heavy gloves.
Why keep an ABB PP846A (3BSE042238R2) in your spare parts inventory? Because it acts as a standalone data concentrator. With 36 built-in signal input channels and a 0.2% measurement accuracy, it processes physical quantity signals (temperature, pressure, flow) directly before sending them via Modbus RTU over RS-485, RS-232, or Ethernet. It’s a workhorse for legacy DCS and PLC systems. Just remember, this is an older Panel 800 platform. Check your Panel Builder software version and backplane compatibility before ordering, as newer Panel 800 V6 variants have different firmware requirements.
Troubleshooting Quick Reference
- Fault: Black screen / No backlight | Cause: Failed inverter or power supply | Relevancy: High | Quick Check: Measure 24V DC at the terminal block | Fix: If power is good but screen is dark, the backlight inverter is dead. Requires board-level repair or replacement.
- Fault: Touchscreen unresponsive / Ghost touches | Cause: Digitizer calibration drift or glass damage | Relevancy: Medium | Quick Check: Run the built-in calibration utility | Fix: 80% chance it’s a calibration issue. If physical glass is cracked, replace the entire PP846A unit.
- Fault: Cannot communicate with PLC | Cause: Protocol mismatch or bad serial cable | Relevancy: High | Quick Check: Verify Modbus RTU settings and RS-485 termination | Fix: Check for swapped A/B wires. Ensure the 3BSE042238R2 baud rate matches the master controller.
- Fault: Intermittent signal readings | Cause: Ground loop or EMI on analog inputs | Relevancy: Medium | Quick Check: Check shield grounding at the 36-pin connector | Fix: Isolate the signal grounds. If noise persists across multiple channels, the internal ADC is failing.
Application Scenarios & Pain Points
- Legacy Power Plant Control Rooms: Original CRT monitors are failing, and modern touchscreens lack physical buttons. The PP846A provides a direct drop-in replacement with both a crisp TFT display and tactile keys for critical safety operations.
- Water Treatment Facilities: Harsh, humid environments destroy standard commercial tablets. The 3BSE042238R2 is built for industrial temperature ranges and can directly read 36 analog sensors (pH, flow, level) without needing a separate PLC.
- Manufacturing Machine Upgrades: Retrofitting old CNC or packaging lines with modern HMIs often requires rewiring entire panels. The PP846A retains the original footprint and Modbus communication, allowing a direct swap without reprogramming the main controller.
ABB 3BSE042238R2 PP846A
Compatible Replacement Models
- ✅ Drop-in Replacement: (Exact match. Ensure the hardware revision suffix matches to guarantee Panel Builder project compatibility).
- ⚠️ Software Compatible: PP874 or PP877 (Same Panel 800 family. May require recompile of the HMI project file and reconfiguration of Modbus mapping. Budget 4-8 hours of engineering time).
- ❌ Hardware Incompatible: PP882 or PP885 (High-performance Panel 800 V6 variants. Completely different mounting cutout, power requirements, and software. Do not attempt without a full panel redesign).
