ABB PMA323BE HIEE300308R1 | DCS Plug-In Control Board

Description

Key Technical Specifications

Product Introduction

You are looking at a board that has likely been sitting in a control cabinet for 15 to 20 years. The PMA323BE (HIEE300308R1) is a plug-in control board from ABB’s legacy Advant/Master-series DCS family. It does not have field wiring terminals on its faceplate — instead, it plugs directly into the rack backplane and communicates through proprietary ABB bus architecture. Field signals reach it indirectly, routed through companion I/O cards or system terminal units wired into the cabinet.

The board draws power from the backplane’s 5 VDC logic rail, so there is no separate external power connector to worry about during replacement. Operating temperature sits at 0 to 55°C, which covers typical enclosed control cabinet conditions. One maintenance lead at a chemical plant noted that swapping the HIEE board during a night shift allowed the controller to resume immediately with no rewiring — that kind of drop-in behavior is exactly what you need when a legacy system goes down at 2 AM.

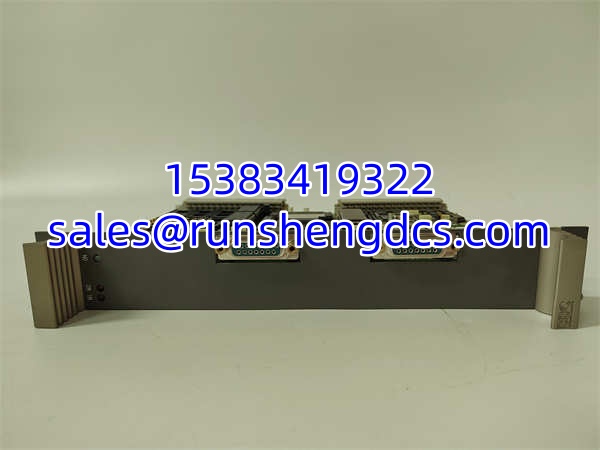

ABB PMA323BE HIEE300308R1

QA/QC Transparency SOP

Here is how a surplus or pulled PMA323BE should be verified before it ships:

1. Intake & Origin Verification — Confirm the board label reads PMA323BE with order code HIEE300308R1. Check the date code and any revision markings. Inspect the PCB for cracked solder joints, corrosion on the backplane edge connector fingers, or heat damage near voltage regulators.
2. Live Functional Testing — Install the board into a compatible ABB Advant/Master-series rack with a known-good backplane and power supply. Verify the board powers up, status LEDs illuminate correctly, and the controller recognizes the module without fault codes.
3. Electrical Parameter Tests — Measure the 5 VDC rail draw at the backplane connector. Verify continuity on all backplane contact fingers. Use a megger to check insulation resistance between power rails and chassis ground.
4. Firmware/Config Verification — Read the board’s firmware or configuration through the DCS engineering tool. Back up any existing configuration data. Confirm the firmware revision matches the target rack’s expected version — mismatches can cause communication failures or erratic controller behavior.
5. Final QC & Anti-Static Packaging — Clear test configurations if required. Install connector protectors if applicable. Package in anti-static shielding with foam cushioning to protect the backplane edge connector fingers during transit.

Field Engineer Gotchas

• Backplane Slot Addressing — The PMA323BE relies on its slot position for addressing within the ABB rack. If you drop it into a different slot than the original board without reconfiguring the rack, the controller may not recognize it or may map it to the wrong address. Check your rack documentation before pulling the old board.
• Firmware Revision Mismatch — A replacement board with a different firmware revision than the rest of the rack can cause communication timeouts or erratic behavior. The board may power up fine (LEDs look normal) but fail to sync with the controller. Always compare firmware revisions before installation.
• No Field Terminals — Do Not Force Wiring — This board has no direct field terminals. If someone tries to wire field signals directly to the board, they will damage the backplane interface. All field wiring goes through companion terminal units or I/O cards. If your cabinet looks like someone attempted direct wiring, inspect the backplane traces before powering up.
• Edge Connector Corrosion — These boards have been in service for years. The gold-plated edge connector fingers can develop oxidation or contamination that causes intermittent contact. A board that “works on the bench” may fail in the rack due to a marginal connection. Clean the edge connector fingers with appropriate contact cleaner before installation.
• Companion I/O Card Dependency — The PMA323BE does not operate in isolation. It depends on specific companion I/O cards and terminal units being present and correctly configured in the rack. Swapping just the control board without verifying the companion hardware is intact and matched can leave you with a board that powers up but passes no process data.

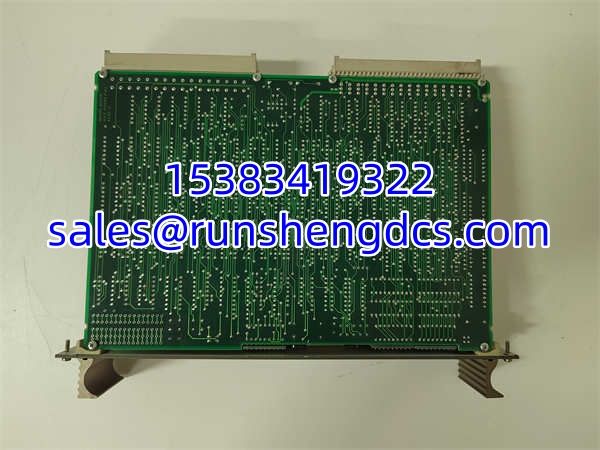

ABB PMA323BE HIEE300308R1

Application Scenarios

• Legacy Chemical Plant DCS Controller Replacement — A chemical processing facility running an ABB Advant DCS experiences a controller board failure. The is pulled from surplus stock, matched to the correct rack slot and firmware revision, and slid into the backplane. The controller resumes operation without rewiring field cables.
• Power Plant Boiler Control System Maintenance — In a thermal power plant using ABB Master-series DCS for boiler control, a failing control board is swapped during a planned outage. The replacement is verified against the rack’s firmware baseline before insertion.
• Pulp & Paper Mill Process Control — A paper mill’s legacy DCS rack loses a control board mid-production. A surplus is sourced, tested against the existing backplane configuration, and installed to restore process control within hours rather than waiting weeks for an OEM rebuild.

Field Case (Anonymized): A chemical plant’s night shift operator reported erratic controller behavior on a critical reactor loop. The DCS showed intermittent communication faults on the rack slot housing the . Maintenance pulled the board and found oxidation on several backplane edge connector fingers — likely from years of exposure to trace corrosive vapors that had migrated into the cabinet. After cleaning the connector and verifying the companion I/O cards, the replacement board was installed and the controller resumed normal operation. The root cause was not the board itself but the degraded physical connection to the backplane.

FAQ

Yes. is the model designation and HIEE300308R1 is the ABB order code. They refer to the same board.

Can I install this board in any ABB rack?
No. The is designed for ABB Advant/Master-series DCS racks with the proprietary backplane interface. It will not fit or function in AC 800M, S800, or other ABB platform racks. Verify your rack family before ordering.

Does this board need external power?
No. It draws power from the rack backplane’s 5 VDC logic rail. There is no external power connector on the board.

Can I wire field signals directly to this board?
No. The has no field terminals. Field signals are routed through companion I/O cards or system terminal units that connect to the backplane.

What firmware version do I need?
The firmware revision must match your existing rack’s expected version. A mismatch can cause communication failures even if the board powers up correctly. Check your rack documentation or read the firmware from a known-good board in the same rack before ordering a replacement.

Is this board still manufactured by ABB?
This is a legacy product from the Advant/Master-series DCS platform. Availability is primarily through surplus and aftermarket channels. For new installations, ABB’s current platforms (AC 800M, S800 I/O) are the modern equivalents, though they are not drop-in replacements.

What is the typical lead time from surplus suppliers?
Availability varies. Some distributors stock this board and can ship within days. Others may quote longer depending on condition and revision. Confirm the exact part number, revision markings, and condition (new surplus, pulled, or refurbished) before committing to a purchase.
