Description
Key Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PM861AK01 (3BSE018157R1) |
| Manufacturer | ABB |
| Product Type | Redundant Processor Unit |
| Processor | MPC860 @ 48MHz |
| Memory | 16MB Total (7.155MB App RAM) |
| Switchover Time | < 10ms (Bumpless) |
| Ethernet Ports | 2x RJ45 (CN1, CN2) |
| Serial Ports | 2x RJ45 (COM3 RS232, COM4 Config) |
| Power Supply | 24V DC (19.2–30V Range) |
| Battery Backup | 3.6V Lithium (Data Retention) |
| I/O Capacity | 96 Modules (Single) / 84 (Redundant) |
| Dimensions | 189mm x 135mm x 119mm |
Product Introduction
Legacy AC 800M systems often face a critical bottleneck when the primary CPU fails and the backup takes too long to sync, causing process bumps that trip sensitive equipment. The ABB PM861AK01 solves this with a dedicated hardware sync link and bumpless transfer logic that keeps the switchover under 10ms, invisible to the control loop. It’s not just a processor; it’s the heartbeat of your redundancy scheme, ensuring that when the primary dies, the plant doesn’t.
Engineers specify the ABB PM861AK01 because it balances raw processing power with industrial pragmatism. With 16MB of RAM and a 48MHz clock, it handles complex PID tuning and batch control without choking, while the integrated 3.6V lithium battery ensures your retentive data survives a total rack power loss. Bottom line — it’s a workhorse that’s been keeping refineries running for decades, and finding a verified spare is cheaper than a full system migration.
QA/QC Transparency SOP
We don’t trust “tested good” stickers from 2010. Every ABB PM861AK01 undergoes this exact protocol:
- Intake & Visual Inspection: We check for cracked solder joints on the RJ45 jacks and verify the 3BSE018157R1 revision matches the firmware database.
- Live Redundancy Test: Installed in a dual-CPU test rack; we force a primary failure and measure the actual switchover time to confirm it stays under the 10ms spec.
- Battery & Memory Check: We test the 3.6V lithium backup battery voltage and verify the 16MB RAM passes a full read/write stress test without bit errors.
- Firmware Verification: We read the flash to ensure no corruption and confirm the firmware version matches the requested configuration.
- Final QC & Packaging: Unit is cleaned, labeled with a test report, and sealed in anti-static shielding with port protectors for the RJ45 connectors.
Field Engineer Gotchas
- Battery Failure: The ABB PM861AK01 uses a 3.6V lithium cell for data retention. Risk: If the battery dies, you lose retentive variables and clock settings after a power cycle. Fix: Always check the battery voltage before installing a surplus unit. I’ve seen techs blame the CPU for “memory loss” when it was just a dead $2 battery.
- Port Confusion: COM3 and COM4 look identical but have different pinouts. Risk: Plugging a config tool into COM3 instead of COM4 can cause communication timeouts or damage. Fix: COM3 is RS232 with modem control; COM4 is isolated for configuration. Label your cables.
- Firmware Mismatch: Redundancy requires identical firmware. Risk: Mixing revisions causes “Version Mismatch” faults and disables hot standby. Fix: Always verify the firmware version on both CPUs before pairing. Don’t assume “PM861AK01” means the same software.

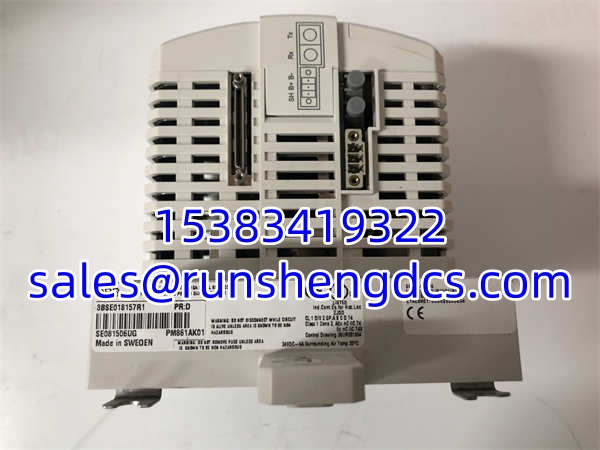

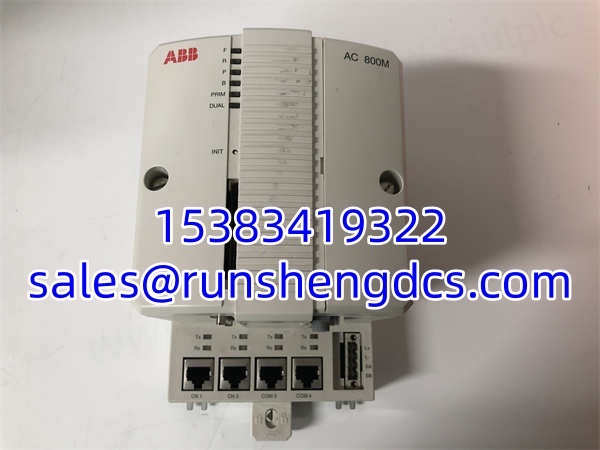

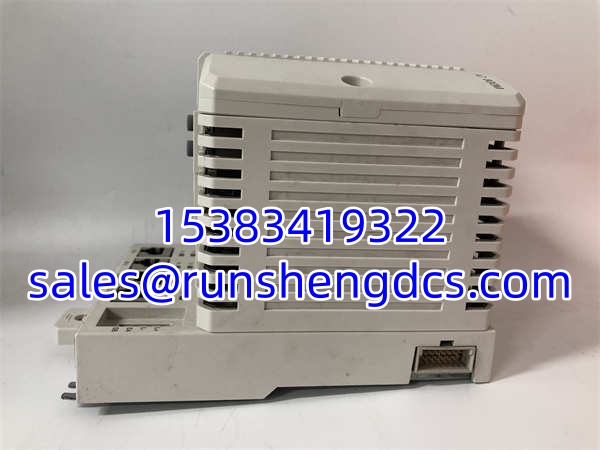

ABB PM861AK01
Application Scenarios
- Oil & Gas Separators: Managing high-pressure vessel levels where a 50ms delay in valve closure can cause a safety trip. The ensures the backup takes over instantly, maintaining control during power sags or primary CPU faults.
- Pulp & Paper Digesters: Controlling complex batch cooking cycles that require retentive data across power interruptions. The integrated battery backup on the preserves the recipe state, preventing ruined batches after a brownout.
- Water Treatment Plants: Balancing flow across multiple pumps with redundant control. The module’s dual Ethernet ports allow separate control and HMI networks, preventing operator traffic from interfering with critical control packets.
FAQ
Yes, but only if configured in a redundant pair and the standby is fully synchronized. Never hot-swap a single, non-redundant controller.
Yes. 3BSE018157R1 is the base ordering code; is the functional designation. Always verify the full suffix for firmware compatibility.
My standby controller keeps going to “Cold Standby.” What’s wrong?
Check the sync link first. Then verify the backplane voltage. If those are good, the module’s internal sync circuitry may have failed, and it needs replacement.
Does this module support IEC 61131-3 programming?
Yes, it is fully compatible with ABB Control Builder M and supports all standard IEC 61131-3 languages (LD, FBD, ST, SFC).
It features 16MB total RAM, with 7.155MB available for application use. Verify exact specs against your project’s memory map.
Can I mix different revisions in a redundant pair?
Generally, no. ABB requires matching firmware and hardware revisions for redundancy to function correctly. Mixing them often results in “Version Mismatch” faults.
