Description
Key Technical Specifications
- Primary Function: High-speed communication processing
- Application Domain: Industrial Control & Redundant Systems
- Part Number: 3BHE037649R0101
- Module Type: PDD500A101 Communication Card
- System Integration: DCS / PLC Network Backbone
- Processing Speed: High-speed data handling
- Reliability: Designed for redundant system architectures
- Programmability: Flexible control and programming
- Maintenance: High reliability, easy maintenance
- Lifecycle Status: Legacy / Discontinued
Product Introduction
You are staring at the nervous system of a legacy ABB DCS setup. The PDD500A101 (3BHE037649R0101) is a high-speed communication module. It doesn’t just pass data. It acts as the central routing hub for redundant control networks. When a plant runs on dual-redundancy, this card handles the failover traffic. If it dies, your redundant loops might just become two isolated, blind systems.
Why hunt for this specific board? Because ripping out a legacy DCS communication backbone costs millions. This module is built for harsh industrial environments where standard IT networking gear melts. It offers high-speed processing and flexible programmability. Honestly, it’s an aging workhorse. Sourcing them now means paying a premium for discontinued stock, but avoiding a full system migration saves your maintenance budget from bleeding out.
Troubleshooting Quick Reference
- Network Comm Drops | Bus Flood | 60% Probability | Check network utilization stats | Broadcast storms from cheap switches kill old comm cards. Isolate port.
- Redundancy Failover Fault | Sync Loss | 50% Probability | Check peer-to-peer sync cables | Bent pins or degraded copper. Swap sync cable. Check termination resistors.
- Module Won’t Boot | Corrupt Firmware | 30% Probability | Boot from USB recovery | Flash failed. Re-image using known-good USB stick. If it loops, the flash memory is dead.
- Intermittent Data Errors | Backplane Seating | 40% Probability | Reseat module in rack | Vibration loosens connections. Clean backplane pins with contact cleaner.
- Overtemperature Alarm | Cooling Failure | 70% Probability | Check cabinet fan RPM | Clogged filters or failed fans. Clean heat sinks. Verify airflow direction.

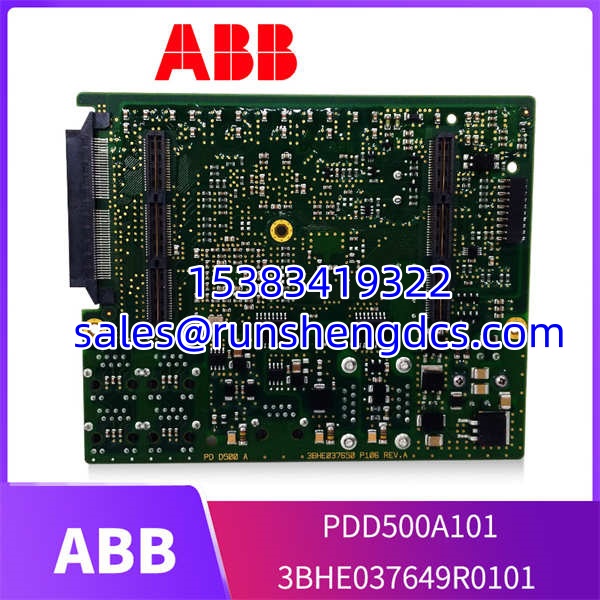

ABB-3BHE037649R0101-PDD500A101
Application Scenarios & Pain Points
- Redundant Chemical Reactors: Precise synchronization is mandatory. A failing comm board causes primary/secondary controller desync, tripping the safety system offline.
- Heavy Rolling Mill Drives: Massive torque spikes demand fast data updates. Standard Ethernet drops packets. This high-speed module handles the deterministic traffic without choking.
- Brownfield Power Plants: Legacy DCS networks refuse to die. This module bridges 20-year-old fieldbus segments to newer control layers without adding expensive protocol gateways.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB PDD500A101 / 3BHE037649R0101. Exact same hardware revision. Verify serial number and firmware version match your existing rack. No reprogramming needed if versions align.
- ⚠️ Software Compatible: ABB PDD5xx Series (e.g., PDD520A101). Same engineering tool and protocol. Hardware pinout may differ. Expect 2-4 hours for parameter migration and functional testing.
- ❌ Hardware Incompatible: Standard Ethernet/IP Comm Modules (e.g., CI85x series). Different backplane bus. Different proprietary sync protocols. Do not substitute without a full engineering review and rack redesign.
