Description
Key Technical Specifications
- Product Model: PCD235A101 / 3BHE032025R0101
- Manufacturer: ABB
- Product Type: Exciter Control Module / Programmable Logic Controller
- Target System: Generator Excitation Systems
- Measurement Capabilities: High-precision voltage and current measurement
- Protection Features: Built-in overload and short-circuit protection
- Input Range: Wide voltage input range
- Dimensions (L x H x W): 142 mm x 373 mm x 73.5 mm
- Weight: 1.53 kg
- Control Architecture: Advanced digital control with programmable logic
Product Introduction
Maintaining stable grid voltage during sudden load drops is a constant battle for power plant operators. The ABB PCD235A101 (3BHE032025R0101) acts as the brain of the excitation system, dynamically adjusting the generator’s field current to prevent voltage collapse. Utilizing advanced digital control algorithms, this module processes high-precision voltage and current measurements to ensure deterministic response times. It also features programmable logic, allowing it to adapt to specific generator tuning requirements rather than relying on rigid, one-size-fits-all parameters.
Why trust this specific controller in your turbine hall? It is engineered with wide voltage input tolerance and built-in overload/short-circuit protection to survive harsh electrical transients. Weighing just 1.53 kg with a compact footprint (142 x 373 x 73.5 mm), it integrates easily into existing panels. Bottom line — it provides the exact, reliable voltage regulation needed to keep your generator synchronized with the grid without tripping the entire unit.

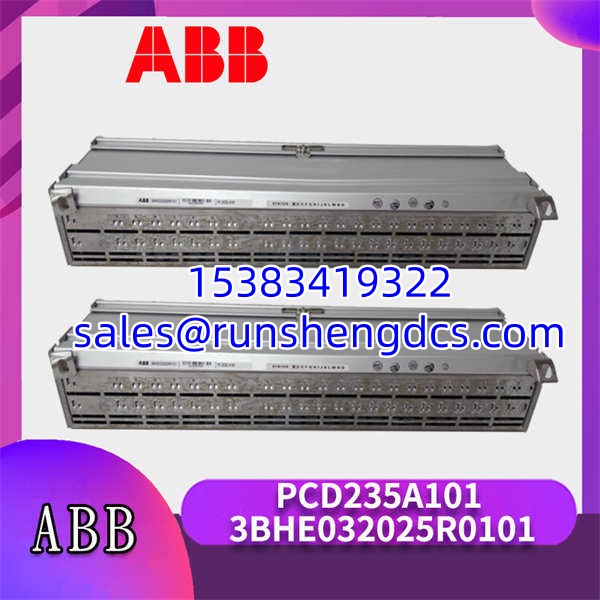

ABB-PCD235A101-3BHE032025R0101
QA/QC Transparency SOP
Trust is earned through testing, not marketing. Here is exactly how we validate surplus ABB excitation hardware before it ships:
- Intake & Origin Verification: We inspect the PCB for heat damage, trace corrosion, and verify the PCD235A101 label against ABB date codes to rule out counterfeit pulls.
- Live Functional Testing: The module is seated in a dedicated test setup. We inject simulated V/I signals to confirm the digital control algorithms scale the data and trigger logic accurately.
- Electrical Parameter Tests: Using calibrated Fluke multimeters, we verify power rail voltages and test the internal overload/short-circuit protection thresholds against OEM tolerances.
- Firmware/Config Verification: We read the programmable logic configuration to confirm the control parameters match the 3BHE032025R0101 specification and back up the baseline data.
- Final QC & Anti-Static Packaging: Passed units receive a QC sign-off sticker, are wrapped in industrial-grade anti-static shielding, and packed with foam inserts to prevent transit damage.
Field Engineer Gotchas
- ESD Sensitivity: The high-precision measurement circuits are highly susceptible to electrostatic discharge. Never touch the board without a grounded wrist strap. A static zap can silently degrade the voltage measurement accuracy, leading to erratic AVR behavior weeks later.
- Wiring & Terminal Compatibility: Exciter systems operate with high field currents. Ensure your field wiring matches the exact terminal block pinout for the 3BHE032025R0101 revision. Reversed CT/PT wiring will cause the module to fight the generator’s magnetic field instead of supporting it.
- Programmable Logic Mismatch: Because this module supports programmable logic, a replacement unit might have different factory default parameters. Always verify the DIP switches and internal configuration against your legacy module before applying power.
- Real-World Warning: I’ve seen a hydro plant swap a failed exciter controller without checking the programmable logic parameters. The new module’s default ramp rates were too aggressive for their specific generator, causing a massive voltage spike during startup that blew the rotating diodes. Always verify parameters first.

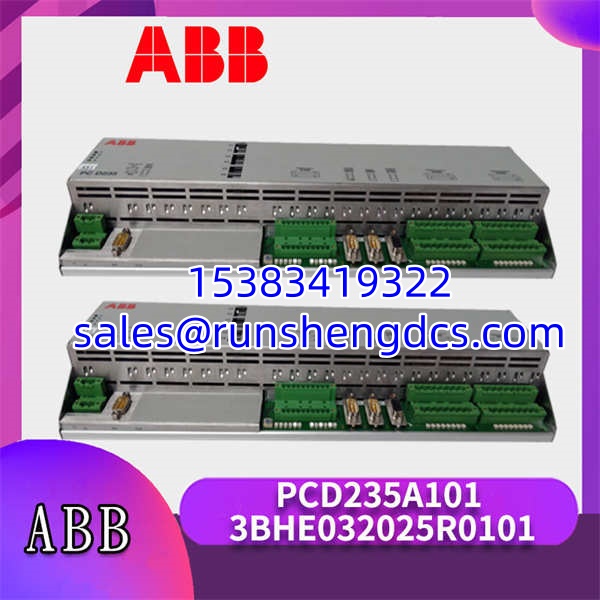

ABB-PCD235A101-3BHE032025R0101
Application Scenarios
- Hydroelectric Power Stations: Regulates field current during rapid load changes and water hammer events, relying on the module’s fast digital response to maintain grid frequency.
- Thermal Power Plants: Maintains synchronous generator voltage during boiler pressure fluctuations, utilizing the built-in short-circuit protection to survive grid faults.
- Wind Turbine Generators: Adapts to variable rotor speeds by dynamically adjusting excitation parameters through the programmable logic architecture.
FAQ
Does this module support hot-swapping?
No. Excitation control modules are not designed for hot-swapping. You must take the generator offline or safely transfer the load before replacing this module. Attempting a hot-swap can cause a loss of field and severe generator damage.
Can I mix this with older ABB exciter boards in the same panel?
Generally, no. Excitation systems require matched hardware revisions. Mixing incompatible revisions can cause communication failures on the internal bus. Always match the exact suffix (e.g., 3BHE032025R0101) to the rest of the system.
How do I test this board offline?
Use the built-in diagnostic functions. The module includes self-test routines for the high-precision measurement circuits. You can also inject known reference voltages and currents to verify the digital control output before installing it in the generator panel.
Is this module still supported by ABB?
The PCD235 series is legacy, but ABB continues to support it through authorized spare parts channels. The PCD235A101 remains a valid spare for many installed bases. For new builds, verify current OEM recommendations, but for maintaining existing generators, this board is fully compliant.
What is the return policy if it doesn’t fit my system?
We offer a 1-year warranty and a 30-day compatibility check window. If you provide your excitation system revision and wiring diagram before ordering, we will confirm fitment. If it arrives and doesn’t work in your specific configuration, contact us immediately for an RMA. We test every unit, but field conditions vary.
Will the programmable logic wipe if power is lost?
No. The programmable logic and configuration parameters are stored in non-volatile memory. However, always maintain a backup of your control parameters before swapping modules to avoid extended commissioning downtime.
