Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Model Numbers | NDCU-12C, NDCU-12CK |
| Reference Part | 64804031 (verify on nameplate) |
| Manufacturer | ABB |
| Product Type | NDCU drive control unit for ACS600 multi-drives |
| Compatible Drive Family | ABB ACS600 multi-drive system |
| Internal Architecture | NAMC application/motor control board + NIOC I/O board within NDCU frame |
| Control Modes | Speed, torque, position (verify with OEM manual) |
| Communication Interfaces | DDCS fiber link; RS-485; optional fieldbus adapters |
| I/O Interfaces | Digital inputs, analog outputs, relay outputs (configuration-dependent) |
| Mounting | Installed inside ACS600 drive cabinet/module |
| Origin | Switzerland (per third-party listings) |
| Application | Process drives, material handling, machine drives using ACS600 |
| Status | Discontinued/legacy ACS600 spare |
Product Introduction

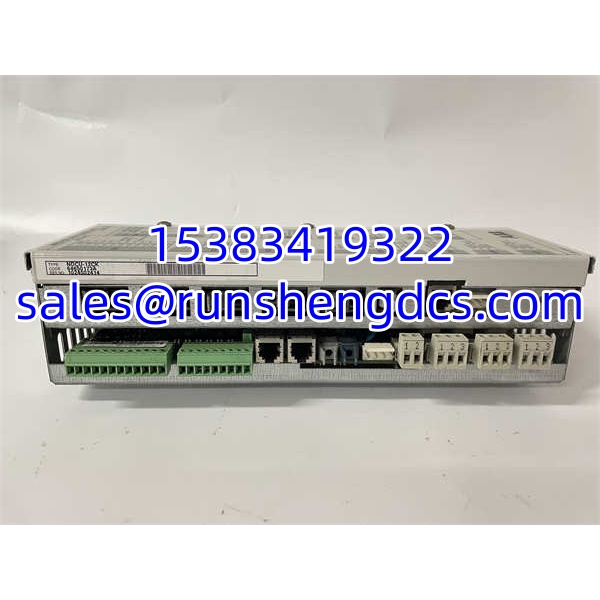

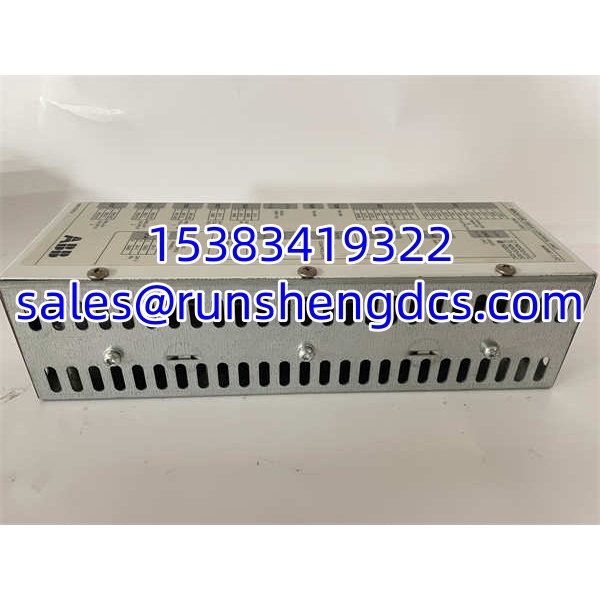

Drive control units are the most commonly mis-specified spare because the NDCU label looks generic until you open the cabinet. The NDCU-12C / NDCU-12CK is not a standalone PLC or general servo controller. It is the multi-drive control unit, built around a NAMC application/motor control board and a NIOC I/O board, and it manages regulation, I/O handling, DDCS fiber communication, and drive-level diagnostics.
This unit becomes critical when an drive faults on control-board failure, DDCS loss, I/O mismatch, or parameter corruption. Because it sits inside the drive cabinet and talks directly to power modules, gate drivers, and field signals, a wrong suffix, firmware level, or option configuration can create a physically compatible board that still will not commission. Bottom line — match the full label, 64804031 reference, and installed configuration before ordering.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm NDCU-12C or NDCU-12CK labeling, 64804031 reference, revision code, serial number, NAMC/NIOC board presence, connector condition, and PCB damage. Reject units with burnt components, cracked DDCS/optical connectors, or mismatched suffixes.
- Live Functional Testing — Install in a compatible test frame where available. Verify power-up, control-board self-test, DDCS link status, RS-485 communication, digital input recognition, and analog output response.
- Electrical Parameter Tests — Check terminal continuity, RS-485 interface integrity, I/O voltage levels, and insulation between control and power sections using a calibrated multimeter. Look for abnormal leakage or shorted I/O channels.
- Firmware/Config Verification — Read NAMC firmware revision, drive parameter set, DDCS addressing, and option-board recognition where accessible. Back up drive parameters before returning the unit to service.
- Final QC & Anti-Static Packaging — Package in ESD bags with a test tag showing model, suffix, firmware revision, DDCS/RS-485 test results, test date, and technician ID.
Field Engineer Gotchas
- Suffix mismatch (NDCU-12C vs NDCU-12CK) — The “CK” variant may carry different firmware, I/O mapping, or option configuration. Solution: match the exact suffix on the failed unit. Do not assume interchangeability.
- — This board belongs to the multi-drive family. It is not a drop-in for ACS800, ACS880, or other ABB drives. Solution: confirm the installed drive model before procurement.
- DDCS addressing errors — A failed DDCS link can look like a bad NDCU when the real issue is node addressing, fiber patching, or a faulty SFP/connector. Solution: verify DDCS topology and addressing before replacing the unit.
- Firmware/parameter mismatch — Even a correct NDCU-12C / NDCU-12CK may carry different firmware or saved parameters. Solution: back up existing drive parameters before swapping, and reload them after installation.
- Internal drive fault masking — A failed control board can be secondary to a power-module, gate-driver, cooling, or DC-bus fault. Solution: check the full drive fault log and power section before replacing only the DCU.
ABB NDCU-12C NDCU-12CK
Application Scenarios
- — Keeping an existing drive running when the original NDCU fails and a full drive replacement is not justified.
- Steel mill roller-table drives — Supporting speed/torque control on older -driven rollers where downtime is costly and spare boards are scarce.
- Paper machine sectional drives — Maintaining coordinated speed control on legacy sections where migration to ACS880 has not yet occurred.
- Water/wastewater pump drives — Replacing a failed control unit on pump drives that still perform adequately but lack OEM-new spare availability.
FAQ
No. It is a drive control unit for the ABB multi-drive family, installed inside the drive cabinet.
Can I use it on ACS800 or ACS880 drives?
No. / is specified for drives. ACS800 and ACS880 use different control units and are not cross-compatible.
The exact difference depends on firmware, option configuration, or production revision. Always match the suffix on the installed unit.
Does 64804031 replace both models?
64804031 appears as a reference part number in third-party listings, but it does not guarantee automatic interchangeability between C and CK variants. Verify with the installed label and ABB documentation.
What is the role of NAMC and NIOC in this unit?
NAMC handles application and motor control; NIOC handles standard I/O. Together they form the NDCU drive control unit inside multi-drives.
Can I hot-swap this board?
No. This is an internal drive control board. The drive must be safely de-energized and discharged before removal or replacement.
Is this available as OEM-new?
is a legacy drive family. Most stock circulates as surplus, refurbished, or unused surplus. Specify condition and test status during procurement.
