Description
Key Technical Specifications
- Material Code: HIEE300766R0001
- Product Type: Generator Synchronizer Module
- Primary Function: Automatic Synchronization & Grid Interlock
- Control Logic: Closed-Loop, PID, Cascade Control Options
- Monitored Parameters: Voltage, Frequency, Phase Angle
- System Integration: PLC / DCS Signal Processing
- Application Domain: Power Plants, Substations, Large Industrial Drives
- Safety Feature: Anti-Islanding & Breaker Interlock
- Form Factor: Modular Rack-Mounted Board
- Cross-Reference: Often associated with DB021BE / GDB021BE series
Product Introduction
Closing a generator breaker at the wrong phase angle doesn’t just trip a relay; it can twist a turbine shaft into scrap metal. The ABB GDB021BE01 (HIEE300766R0001) is the dedicated synchronizer module that prevents that catastrophe. It continuously monitors the generator’s voltage, frequency, and phase against the live grid, calculating the exact slip frequency to predict the perfect closure window.
Why is this board non-negotiable for power generation? Because manual synchronization is a liability. This module automates the entire process, executing the close command only when all parameters are within strict tolerance. It integrates directly with your PLC or DCS for signal processing and supports flexible control loops (PID/Cascade) to handle varying load conditions. Keeping a tested spare on the shelf ensures that a failed sync board doesn’t turn a routine startup into a multi-day outage while you wait for shipping.
Troubleshooting Quick Reference
- Sync Lockout / No Close Command | Voltage or Frequency out of tolerance | 70% chance it’s field sensor/input | Verify PT and CT secondary signals at module | Check slip frequency calculation in HMI
- Premature Breaker Close | Phase angle threshold too wide or noisy signal | 60% chance it’s setting/noise | Review sync check relay settings | Inspect shielded cable routing near VFDs
- Module Fails to Power Up | Backplane seating or 24V supply issue | 50% chance it’s power/connector | Measure 24VDC at module terminals | Reseat module and check backplane pins
- Hunting / Oscillating Output | PID gains too aggressive or deadband too tight | 40% chance it’s tuning | Check PID parameters against generator inertia | Widen deadband slightly and retest

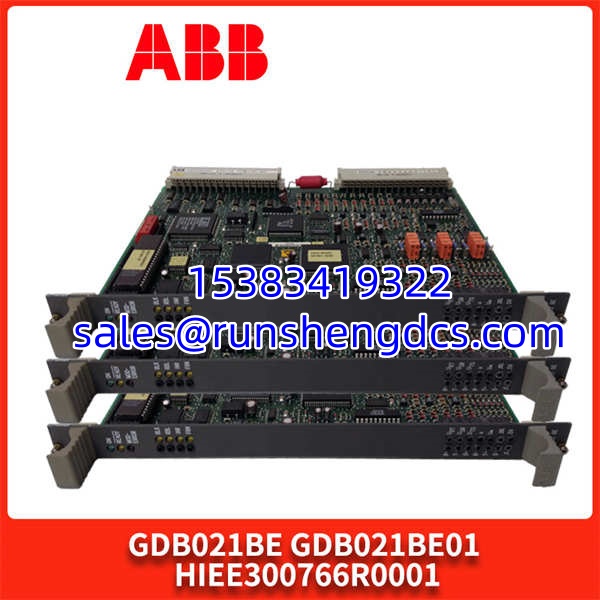

ABB-DB021BE-GDB021BE01-HIEE300766R0001
Application Scenarios & Pain Points
- Thermal Power Plants: Boiler-turbine startups require precise synchronization; a failed sync module forces operators into risky manual paralleling or delays revenue generation by hours.
- Hydroelectric Stations: Variable water head causes frequency drift; the synchronizer must adapt PID loops dynamically to catch the narrow sync window without overshooting.
- Industrial Cogeneration: Parallel operation with utility grid demands strict anti-islanding protection; a faulty sync module can backfeed a de-energized line and endanger line workers.
Compatible Replacement Models
- ✅ Drop-in Replacement: GDB021BE01 HIEE300766R0001 — Exact match. Verify hardware revision suffix before racking. No parameter migration needed.
- ⚠️ Software Compatible: GDB021BE05 HIEE300766R0005 — Same synchronizer family but different revision. Requires sync parameter verification and potential PID retuning. Budget 2-4 hours for validation.
- ❌ Hardware Incompatible: GDC801B101 3BHE051592R0101 — This is a digital I/O module, NOT a synchronizer. Do NOT attempt to swap. Completely different function, pinout, and logic.
