Description
Key Technical Specifications
- Product Type: Pulse Encoder Input Module
- Order Number: 57160001-GF
- Channel Count: 12 independent pulse inputs
- Max Frequency: 10 kHz per channel
- Logic Voltage: 5 VDC, 12 VDC, or 24 VDC (selectable/configurable)
- Input Impedance: 5.6 kΩ (typical for 24V config)
- Cable Interface: DSTK 225SL series (10m or 3m kits available)
- System Compatibility: Advant OCS, MasterPiece 200/200/1, MOD 300
- Mounting: S100 I/O Rack / DIN Rail
- RoHS Status: Exempt (Legacy industrial equipment)
- Weight: ~0.91 kg (module + cable kit)
Product Introduction

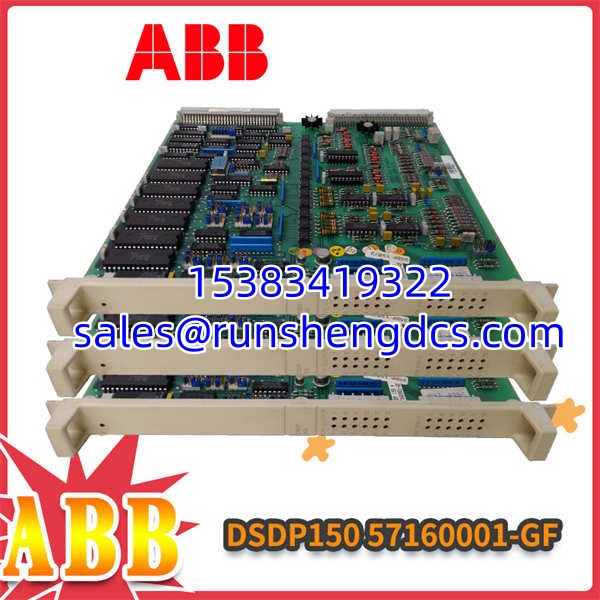

Motion control loops go unstable when encoder feedback gets noisy. The DSDP150 (57160001-GF) is the dedicated pulse input module in the S100 I/O family that grabs position and speed data directly from incremental encoders. It sits in your Advant OCS or MasterPiece 200 rack, converting raw pulse trains into precise process variables for the controller.
You need this specific board because it handles 12 channels at up to 10 kHz without missing counts. The 5.6 kΩ input impedance and selectable voltage logic (5/12/24 VDC) make it compatible with a wide range of industrial encoders, even in electrically noisy environments. Bottom line: if your position control is drifting, this is likely the sensor interface you need to replace.
Troubleshooting Quick Reference
- Erratic Position Values: 80% chance it’s cable shielding or grounding. Pulse signals are high-impedance and pick up VFD noise instantly. Verify the DSTK cable shield is grounded at the module end only.
- Channel Not Counting: Check the logic voltage jumper or DIP switch. A 24V encoder on a 5V setting (or vice versa) will read zero. Measure voltage at the terminal block under load.
- Intermittent Count Loss: Inspect the connector pins. The 57160001-GF uses a specific cable interface; bent pins or oxidation on the DSTK connector cause micro-interruptions. Reseat and clean with contact cleaner.
- Module Not Recognized: Verify the rack slot assignment. S100 I/O modules have specific slot rules in Advant OCS. Check the hardware configuration in Control Builder/Advant Soft.

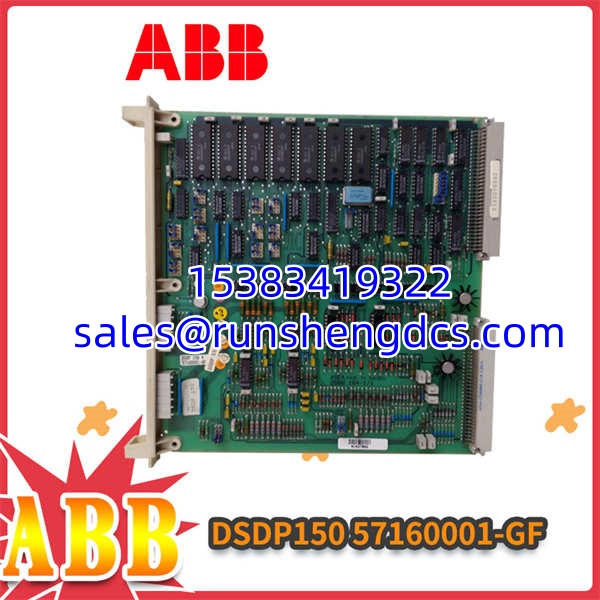

ABB-DSDP150-57160001-GF
Application Scenarios & Pain Points
- Paper Machine Drives: Massive rollers require precise speed synchronization. Encoder noise from nearby 600V drives corrupts standard digital inputs. This module’s filtered inputs and shielded cable kits reject the interference.
- Cement Kiln Rotation: Slow, high-torque rotation demands accurate position feedback for burner control. Mechanical vibration loosens connectors. The press-fit cable interface on the DSDP150 resists vibration better than screw terminals.
- Crane Positioning: Overhead cranes face extreme EMI from hoist motors. The 10 kHz bandwidth ensures you catch every encoder edge during rapid acceleration/deceleration cycles.
Compatible Replacement Models
- ✅ Drop-in Replacement: DSDP150 / 57160001-GF (Exact match. Verify the cable kit part number—DSTK 225SL10 vs DSTK 225SL3. No config changes needed.)
- ⚠️ Software Compatible: DSDP150K07 / DSDP150K10 (Kit versions including cable and hardware. Functionally identical but includes accessories. Budget 1 hour for physical installation.)
- ❌ Hardware Incompatible: DSDP130 / DSDP140 (Different channel count or voltage logic. Requires rewiring and configuration changes. Do not attempt as a direct swap.)
