When integrating legacy drives or remote I/O into an AC450 system, the communication backbone has to handle cyclic bursts without jitter. That’s the specific gap the ABB DSDP140B fills in the Symphony Plus ecosystem.
It sits as the workhorse Profibus DP master interface, handling up to 12 Mbit/s data transfer. For the control engineer, this means deterministic response times for critical process variables. It’s been logging field hours in harsh industrial plants for over a decade, proving its tolerance to EMI noise.
Key Technical Specifications
- Communication Protocol: Profibus DP (DIN 19245 / IEC 61158)
- Data Transfer Rate: 9.6 kbit/s to 12 Mbit/s (auto-sensing)
- Max Nodes: 126 slave devices per segment
- Interface: 9-pin Sub-D (RS-485), galvanically isolated
- Power Supply: 24 VDC (Backplane)
- Current Consumption: < 500 mA (typical)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5 % to 95 % (non-condensing)
- EMC Immunity: Compliant with IEC 61000-6-2
- LED Indicators: RUN, ERR, BF (Bus Fault), SF (System Fault)

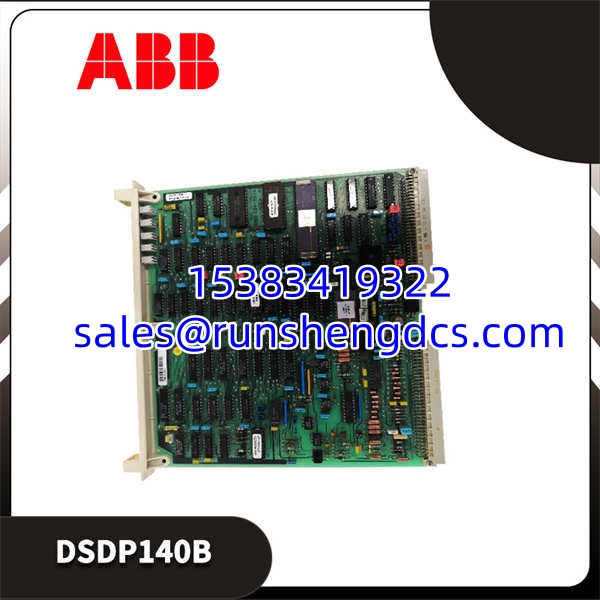

ABB DSDP140B
Compatibility & Replacement Matrix
- ABB DSDP140 → ABB DSDP140B: Direct Replacement — Identical footprint and firmware compatibility.
- ABB DSDP140A → ABB DSDP140B: Direct Replacement — B version is the standard upgrade path.
- ABB DSDO110 → ABB DSDP140B: Incompatible — Different protocol stack (Profibus DP vs. Profibus PA).
- Siemens IM153-1 → ABB DSDP140B: Needs Adaptation — Protocol conversion gateway required.
Quality Inspection & SOP Transparency
Incoming Inspection
Every unit arrives with traceable origin documentation. We verify the serial number against ABB’s public databases to flag grey-market risks immediately. Visually, we check the molding seams of the plastic housing—grey-market clones often have rough ejector pin marks here, while genuine OEM units are smooth. The label font and holographic foil are compared against our master sample library.
Live Functional Test
Modules are seated in an AC450 rack powered by a 24 V TDK-Lambda PSU. On power-up, we observe the boot sequence: the SF and BF LEDs should flash simultaneously, then settle to a steady RUN light within 3 seconds. We then establish a connection via Control Builder Plus, forcing the module online. A 24-hour soak test runs at 45 °C ambient, monitoring the bus statistics for CRC errors.
Electrical Parameter Test
Using a Fluke 1587 insulation tester, we verify >10 MΩ isolation resistance between the data lines and the protective earth. A Rigol DS1054Z oscilloscope checks the signal rise time on the RS-485 lines to ensure it meets the Profibus profile class 1 specs.
Firmware Verification
The firmware version is read via the engineering station. The DSDP140B typically ships with firmware v2.1 or v3.0. We note the exact version in our test report, as mixing v2.1 and v3.0 in the same project can cause configuration mismatches.
Final QC & Packaging
After the test report is signed, the module is bagged in a pink anti-static pouch. We include a desiccant pack for山西’s humid summers. The outer box gets a “QC Passed” label with the test date.
ABB DSDP140B
Common Replacement Pitfalls
Firmware Revision Mismatch
The has two distinct firmware eras: pre-v3.0 and v3.0+. The v3.0 update changed the way it handles “Slave Not Ready” states. If you pull a v2.1 module from the rack and drop in a v3.0 unit without updating the entire controller’s firmware, you’ll get intermittent bus faults that clear randomly. Always match the firmware version of the module to the rest of your rack.
DIP Switch / Jumper Misconfiguration
This module uses a 6-pin terminal block for the bus connection. The critical trap is the termination resistor. Unlike newer modules that auto-terminate, the requires a physical jumper (X2) to enable the 220 Ω termination. If you’re installing it at the end of the line and forget the jumper, the bus signal will reflect, causing data corruption at high speeds.
Connector / Terminal Incompatibility
The 9-pin Sub-D connector is standard, but the pinout for the external 24 V auxiliary supply (if used) differs between the DSDP140 and the in rare early batches. Cross-check the wiring diagram on the module’s side label before crimping the cable. I’ve seen a tech fry the receiver stage because he relied on memory instead of the label.
Power Budget Shortfall
While the backplane draws ~400 mA, if you’re daisy-chaining 30 Profibus slaves off this module, the external 24 V feed to the Sub-D connector needs to handle 1.5 A peak. Don’t tap this into your control cabinet’s lighting circuit; use a dedicated power supply.
ESD Damage
The RS-485 transceivers inside are sensitive.山西 in June can be dry. If you touch the connector pins before grounding yourself, you can degrade the input protection diodes. It might work for a week, then fail during a thunderstorm. Wrist strap. Every time.
FAQ
Q: Can I just swap this in directly if my old one says “DSDP140” (no B suffix)?
A: Yes, it’s a direct physical replacement. However, check the firmware version in your controller. If the old module was v2.1, ensure the new is also v2.1, or you’ll need to upgrade the entire rack’s firmware to match v3.0.
Q: Does this module support Profibus PA devices?
A: No. The is strictly a Profibus DP (Decentralized Peripherals) master. For Profibus PA (Process Automation), you need a link coupler (like the FF Link) or a different I/O module specific to PA.
Q: My system runs AC450 V6.0 – will this module work?
A: It depends on the firmware. AC450 V6.0 engineering software can download to a , but the module’s internal firmware must be v3.0 or higher to be recognized properly. If you receive a v2.1 unit, you’ll need to flash it first.
Q: Is this unit factory sealed or tested surplus?
A: We list the exact condition. If it’s factory sealed, it will have the original ABB anti-static bag and foam. If it’s tested surplus (most common), it will be in a new anti-static bag with our test report and warranty sticker.
Q: What’s the max cable length I can run with this?
A: At 12 Mbit/s, the maximum is 100 meters (per Profibus standard). If you need longer, you’ll need a repeater. At lower speeds (19.2 kbit/s), you can stretch to 1200 meters.
Q: Do you offer a warranty on this item?
A: Yes. We provide a 12-month return-to-base warranty. If it fails our incoming test, we don’t ship it to you—so the odds of failure are low, but we’ve got you covered if it happens.
