Description
Key Technical Specifications
| Parameter | Typical Value / Note |
|---|---|
| Model | DSDO115A |
| Order Number | 3BSE018298R1 |
| Brand | ABB |
| Product Type | Digital output module (DO) |
| Platform | ABB S800 I/O; referenced with AC 450, Advant OCS, 800xA |
| Output Channels | 32 independent digital outputs |
| Output Type | Transistor source output, 24 V DC |
| Per-Channel Current | 0.5 A maximum (vendor-reported; verify on nameplate) |
| Supply Voltage | 19.2–30 V DC (vendor-reported) |
| Isolation | Channel-to-channel and channel-to-bus isolation (vendor-reported) |
| Diagnostics | LED indicators for module status and channel faults (vendor-reported) |
| Hot Swap | Supported in S800 I/O stations where configured (vendor-reported) |
| Protection Rating | IP20 — cabinet installation only (vendor-reported) |
| Mounting | DIN-rail mounted via S800 I/O station / termination base (vendor-reported) |
| Dimensions / Weight | 324 × 234 × 22.5 mm / 0.32 kg (vendor-reported; verify physically) |
| Environmental | Operating temperature varies by source; confirm on nameplate |
Product Introduction

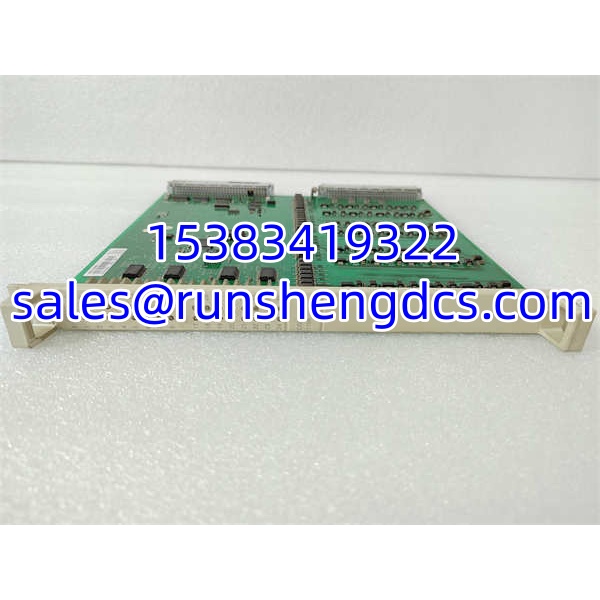

The ABB DSDO115A 3BSE018298R1 is a 32-channel 24 V DC digital output module used to drive discrete field devices from ABB control systems. It belongs to the S800 I/O family and is referenced in documentation for AC 450, Advant OCS, and 800xA environments.
This module is not a CPU, not a communication gateway, and not a motion controller. Its job is straightforward: take logic outputs from the controller and switch 24 V DC loads — solenoid valves, relay coils, pilot lights, small contactors, and similar devices. The 32-channel density makes it useful where cabinet space is limited and many discrete outputs must be managed from a single I/O station. Electrical isolation between channels and the backplane bus helps prevent field-side noise from propagating into the control system.
For maintenance teams, the key point is platform confirmation. The DSDO115A must match the S800 termination base, slot configuration, and software definition. If your existing module is reporting channel faults, short-circuit alarms, or communication errors, a verified replacement can restore output integrity — provided the order number, revision, and host configuration are correct.
QA/QC Transparency SOP
- Intake & Origin Verification
Confirm full designation DSDO115A 3BSE018298R1, serial label, hardware revision, and country-of-origin marking. Reject units with mismatched order numbers or evidence of non-OEM repair. - Live Functional Testing
Install the module in a compatible S800 test station. Verify module recognition, channel switching, LED diagnostics, and communication with the host controller. - Electrical Parameter Tests
Measure supply voltage behavior within the 19.2–30 V DC range. Test representative channels with 24 V DC loads. Check short-circuit protection, isolation resistance, and output voltage drop under load. - Configuration Verification
Confirm slot assignment, channel diagnostics settings, fail-safe output state, and engineering software mapping. Back up the I/O configuration before swapping the module. - Final QC & Anti-Static Packaging
Inspect termination base connectors, module locking mechanism, LED indicators, and PCB condition. Package in ESD-safe materials with part number, revision, test date, and condition clearly marked.
Field Engineer Gotchas
- It is not a communication or motion-control module.
Risk: Expecting Profibus, Modbus, or servo functions from this part number.
Fix: Treat those claims as unverified. This is a 24 V DC digital output module. - 0.5 A per channel is a hard limit.
Risk: Driving large contactor coils or multiple loads from one channel.
Fix: Use external interposing relays where load current exceeds 0.5 A. - Transistor source output means 24 V DC only.
Risk: Connecting AC loads or reverse-polarity wiring.
Fix: Confirm load type and polarity before energizing. Do not apply AC voltage. - Hot swap is not universal.
Risk: Pulling the module from a non-redundant or unsupported station.
Fix: Confirm station configuration and OEM guidance before hot-swapping. - Termination base compatibility matters.
Risk: Forcing the module into an incompatible base.
Fix: modules use hardware and software locking to prevent mismatches — respect them. - Vendor dimensions vary widely.
Risk: Ordering based on inconsistent surplus listings.
Fix: Measure the physical unit and confirm fit within the existing I/O station.

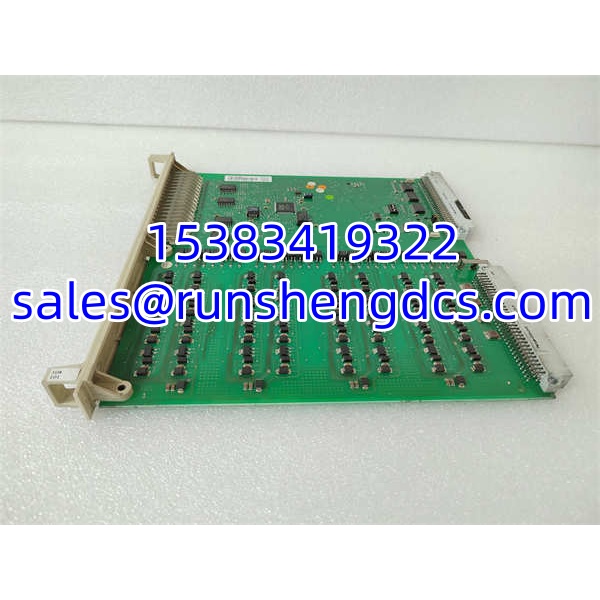

ABB DSDO115A 3BSE018298R1
Application Scenarios
- where an existing DSDO115A shows channel short-circuit faults or communication errors.
- Process plant discrete control for solenoid valves, pump start/stop commands, and damper position signals.
- Packaging and assembly lines requiring high-density 24 V DC output switching from an ABB controller.
- Power and utility systems using AC 450 or 800xA architectures with legacy digital output racks.
FAQ
No. It is a 32-channel digital output module for ABB I/O stations.
Can it drive AC loads?
No. It is a 24 V DC transistor source output module. AC loads require external relays.
How many channels does it have?
32 independent digital output channels.
What is the maximum current per channel?
0.5 A per channel, vendor-reported. Confirm against the OEM nameplate.
Does it support hot swap?
Hot swap is supported in I/O stations where configured, but should not be assumed without OEM confirmation.
Is this still produced by ABB?
Treat it as legacy/discontinued. Stock is typically surplus, refurbished, or remaining inventory.
Can I substitute a different DO module?
Not without confirming termination base, software configuration, and channel mapping. Match exactly.
