Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product model | DSAO120A |
| Order number | 3BSE018293R1 |
| Product type | 8-channel analog output board |
| Typical system | ABB Advant Master / Advant Controller 450, S100 I/O |
| Output channels | 8 analog outputs |
| Output type | Voltage / current, channel-configurable |
| Typical output ranges | ±10 V, 4–20 mA (verify per cabinet configuration) |
| Module supply | 24 V DC |
| Resolution | Typically 12-bit; some listings claim 16-bit and should be verified against OEM documentation |
| Accuracy | Approximately ±0.1% FS typical; confirm from OEM data |
| Mounting | S100 I/O rack / Advant I/O assembly |
| Net dimensions | 324 × 234 × 27 mm |
| Net weight | 0.372 kg |
| Typical application | Process control, valve positioning, VFD speed reference, actuator control |
Product Introduction
The DSAO120A 3BSE018293R1 is a classic Advant Master S100 analog output module. In older AC 450 / Advant Controller 450 racks, it is the bridge between the controller’s digital output values and the analog signals that field devices actually understand. A 4–20 mA valve positioner, a ±10 V speed reference or a proportional actuator command usually passes through a module like this.
Its practical value today is lifecycle support. Many plants still run Advant Master or AC 450 systems where replacing the entire I/O architecture is not justified. A verified DSAO120A can restore analog output capability without forcing an immediate migration. The key risk is not the module itself but the configuration: channel ranges, scaling, fail-safe behavior and cabinet wiring must all match the existing application.
QA/QC Transparency SOP
- Identity Verification — Confirm model DSAO120A and full order number 3BSE018293R1. Reject units mislabeled as digital I/O, communication modules, AC 800M cards or S800 I/O.
- Visual Inspection — Check front connector pins, ModuleBus contacts, PCB condition, corrosion, burn marks and mechanical damage. Inspect the nameplate for revision and serial number.
- Power-Up Test — Apply 24 V DC in a controlled test rack. Verify module initialization, LED status and absence of supply faults.
- Channel Output Test — Use a calibrated multimeter or signal recorder to verify voltage and current output per channel. Check zero offset, span accuracy and channel-to-channel consistency.
- Configuration & Documentation — Record channel range settings, scaling data and any recoverable configuration. Pack with anti-static protection, connector caps, nameplate photos and test results.
Field Engineer Gotchas
- It is not an AC 800M / S800 module. Some surplus listings place DSAO120A in the S800 or AC 800M family. It belongs to the Advant Master / AC 450 S100 I/O architecture.
- Output range must match the loop. Swapping a ±10 V channel for a 4–20 mA channel without updating scaling will drive the wrong signal to the field device.
- Resolution claims vary online. Listings quoting 12-bit and 16-bit both exist. Do not assume; verify against the OEM manual and the installed cabinet.
- Fail-safe behavior matters. After replacement, confirm whether outputs go to zero, hold last value or follow a defined safe state.
- Base rack and power matter. A failed S100 backplane contact or unstable 24 V DC supply can look like an AO module fault.
- Application backup is mandatory. Pull the controller configuration and I/O mapping before removing the failed module.

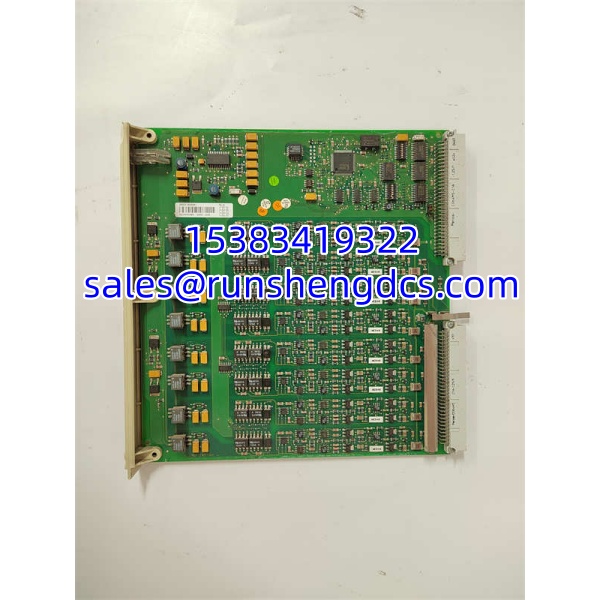

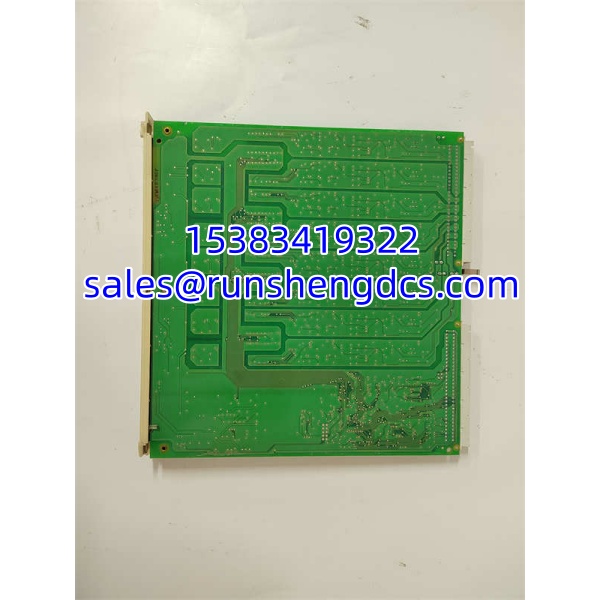

ABB DSAO120A 3BSE018293R1
Application Scenarios
- Advant Controller 450 AO channel failure. One or more analog outputs drift or fail. The DSAO120A restores valve, VFD or actuator control while the application remains unchanged.
- Legacy process control maintenance. Older chemical, power, pulp and paper or water treatment systems still depend on Advant Master S100 I/O for analog regulation.
- Planned outage spare provisioning. Keeping a verified on site reduces mean time to repair for racks that no longer have easy access to new stock.
- Migration bridge. During phased replacement of an Advant Master system, the module helps maintain existing analog output loops until the new I/O architecture is commissioned.
FAQ
No. It is an Advant Master / AC 450 analog output module. Listings describing it as S800 or AC 800M I/O are misleading.
How many channels does it have?
8 analog output channels.
What output signals does it support?
Typically ±10 V and 4–20 mA, with channel-level configuration. Exact ranges must be confirmed from the cabinet configuration and OEM documentation.
Can I substitute it with another ABB AO module?
Not automatically. Channel count, resolution, accuracy, rack type and configuration must match. Advant modules are not directly interchangeable with S800 or AC 800M I/O.
What should I check before buying?
Full order number 3BSE018293R1, physical condition, nameplate photos, channel configuration, test records and confirmation that it is an Advant AO module.
Does it support hot swapping?
Do not assume. Follow the OEM cabinet manual and plant maintenance procedures before removing or inserting I/O modules.
Is this still in production?
It is considered legacy hardware. Most available stock comes from surplus, refurbished or decommissioned systems.
