Description
Key Technical Specifications
| Parameter | Typical Value / Note |
|---|---|
| Model | DSAI130D |
| Order Number | 3BSE003127R1 |
| Brand | ABB |
| Product Type | Analog input module |
| Platform | ABB Advant OCS / S100 I/O; also referenced in S800 I/O contexts |
| Analog Inputs | 16 channels, differential |
| Input Ranges | ±10 V, ±10 mA; vendor pages also mention 0–10 V / 4–20 mA compatibility |
| Resolution | 12-bit |
| Accuracy | 0.03% (vendor-reported; verify with OEM datasheet) |
| Conversion Time | 20 ms (vendor-reported) |
| Filter Options | 10 Hz / 30 Hz / 100 Hz / 300 Hz (vendor-reported) |
| System Supply | 24 V DC (vendor-reported) |
| Communication / Bus | RJ45-style interface reported in some listings; S800 ModuleBus referenced in other sources — confirm against actual hardware |
| Operating Temperature | -20°C to +70°C or 0°C to 55°C depending on source; verify on nameplate |
| Dimensions / Weight | Vendor figures vary widely; do not rely on them without physical verification |
| Country of Origin | Sweden / Switzerland reported by vendors; confirm on label |
Product Introduction
The ABB DSAI130D 3BSE003127R1 is a 16-channel analog input module used to bring field process signals into ABB control systems. It accepts multiple analog signal types — typically voltage and current inputs — and converts them into digital values for monitoring, control, and interlocking.
This module is most commonly associated with the ABB DSAI130 family and legacy Advant OCS / S100 I/O architectures, but some vendor documentation also references it in S800 I/O environments. That cross-reference is exactly why platform confirmation matters. The DSAI130D is not a thermocouple-specific module like the DSAI155; it is a general-purpose analog input card suited for mixed voltage/current/RTD-type signal collection, provided the termination unit, backplane, and software configuration match.
For maintenance teams, the practical value is simple: if an existing DSAI130D card is reporting channel faults, drift, or communication errors, a verified replacement with the correct order number can restore analog input integrity without changing field wiring — assuming the host system, termination unit, and slot configuration are compatible.
QA/QC Transparency SOP
- Intake & Origin Verification
Confirm full designation DSAI130D 3BSE003127R1, hardware revision, serial label, and country-of-origin marking. Reject units with relabeled housings or mismatched order numbers. - Live Functional Testing
Install the module in a compatible ABB test rack or termination unit. Verify channel recognition, analog scaling, diagnostic flags, and bus communication with the host controller. - Electrical Parameter Tests
Measure 24 V DC system supply behavior. Test representative channels with known ±10 V and ±10 mA sources. Check insulation resistance, channel isolation, and short-circuit protection. - Firmware / Configuration Verification
Confirm slot assignment, channel type settings, filter configuration, and engineering unit scaling. Back up the existing I/O configuration before swapping the module. - Final QC & Anti-Static Packaging
Inspect connectors, flat-cable interface, DIN-rail clips, and PCB condition. Package in ESD-safe materials with part number, revision, test date, and condition clearly marked.
Field Engineer Gotchas
- Platform confusion is the biggest risk.
Risk: Assuming it fits any ABB rack because “DSAI130” looks generic.
Fix: Confirm whether your system is Advant OCS / S100 I/O or S800 I/O, and match the termination unit. - It is not a thermocouple-specialist module.
Risk: Using it for direct thermocouple input without cold-junction compensation.
Fix: For pure thermocouple applications, DSAI155/DSAI156 may be more appropriate; DSAI130D is a general-purpose AI module. - RJ45-style port does not mean Ethernet.
Risk: Treating the RJ45 connector as a network port.
Fix: On many ABB I/O modules, RJ45-style connectors carry field wiring or module bus signals — verify with the OEM manual. - Vendor dimensions are inconsistent.
Risk: Ordering based on 365 × 261 × 20 mm or similar figures found online.
Fix: Measure the physical unit and confirm slot compatibility before installation. - Channel scaling must be verified after replacement.
Risk: Swapping the card and assuming engineering units are correct.
Fix: Recheck scaling, filter settings, and alarm limits in the control software.

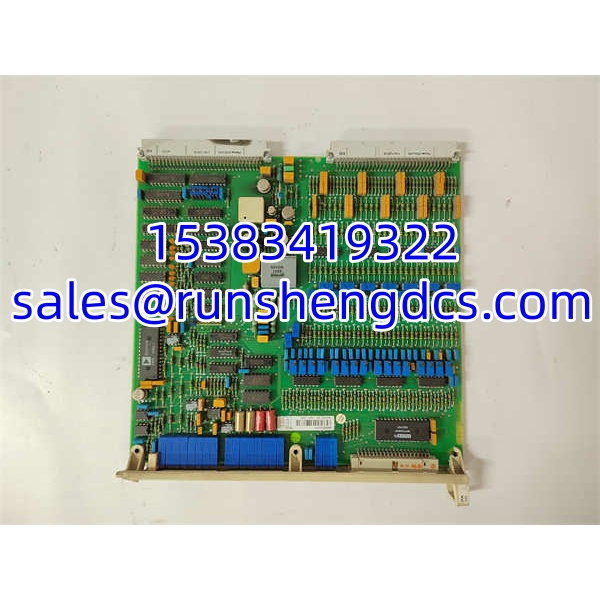

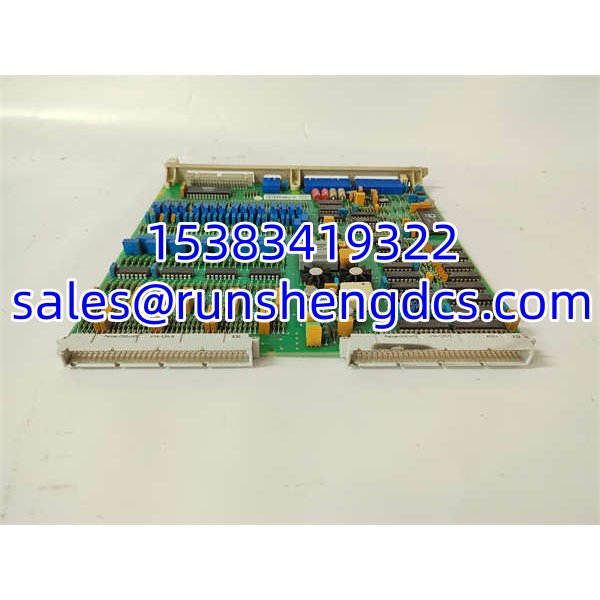

ABB DSAI130D 3BSE003127R1
Application Scenarios
- Legacy Advant OCS station maintenance where an existing card shows channel drift or communication faults.
- Process control panel retrofits that retain existing field wiring but require a verified analog input replacement.
- Power plant, chemical, or water treatment systems using older ABB DCS hardware with limited OEM availability.
- S800 I/O brownfield sites where the module is referenced as part of an AC 800M-based analog input segment — subject to termination unit confirmation.
FAQ
No. It is a general-purpose analog input module. Thermocouple-specific modules such as DSAI155 provide built-in cold-junction compensation.
Can I use this in both Advant OCS and S800 I/O?
The part number appears in both contexts, but they are not automatically interchangeable. Confirm the host controller, backplane/termination unit, and software configuration before purchase.
How many channels does it have?
16 analog input channels, differential.
What input signals does it support?
Vendor documentation cites ±10 V and ±10 mA, with some sources also mentioning 0–10 V and 4–20 mA. Confirm per-channel configuration in the control software.
What is the resolution and accuracy?
12-bit resolution and 0.03% accuracy are commonly cited, but these should be verified against the OEM datasheet.
Is this still produced by ABB?
Treat it as legacy/discontinued. Stock is typically surplus, refurbished, or remaining inventory.
Can I hot-swap this module?
Only if the OEM manual and system configuration explicitly allow it. Otherwise, isolate the I/O segment before replacement.
