Description
Key Technical Specifications
- Model Number: DSAI130-57120001-P5
- Manufacturer: ABB
- Series: Advant OCS / Master
- Channel Count: 16 analog inputs
- Resolution: 12-bit ADC
- Signal Types: ±10V DC, ±10mA DC
- Input Type: Differential input
- Accuracy: 0.03% conversion accuracy
- Filter Options: 4 programmable filter times (10Hz, 30Hz, 100Hz, 300Hz)
- Conversion Time: 20 ms
Functional Role & Application Analysis
The ABB DSAI130-57120001-P5 is a high-precision analog input module designed for the Advant OCS platform. It solves the challenge of acquiring multiple process variables (temperature, pressure, flow) with high accuracy while rejecting electrical noise common in industrial environments. The differential input design and programmable filtering allow engineers to tailor signal conditioning to specific process dynamics, eliminating the need for external signal conditioners.
Typical use cases include:
- Process Control: Acquiring temperature, pressure, and flow signals in chemical and petrochemical plants
- Power Generation: Monitoring boiler parameters, turbine temperatures, and cooling water systems
- Water Treatment: Measuring pH, dissolved oxygen, and turbidity in municipal and industrial facilities
- Legacy System Maintenance: Replacing failed AI modules in existing Advant OCS installations without system redesign
Our Quality Standard & Testing Process
We understand that an unreliable analog input module can cause process deviations and product quality issues. We have established a rigorous, multi-stage testing process to ensure every ABB DSAI130-57120001-P5 we ship is 100% functional and field-ready.
- Visual & Component Inspection: All units undergo professional cleaning and microscopic inspection to ensure no physical damage, capacitor bulging, or compromised solder joints.
- Live Rack Test: The module is installed in a live Advant OCS test rack and run for 24-48 hours to verify continuous operation and communication stability.
- Full Channel Accuracy Test: We apply precision voltage and current sources to all 16 channels, verifying accuracy across the full ±10V and ±10mA ranges.
- Filter Response Verification: Each programmable filter setting is tested to confirm correct cutoff frequency and signal attenuation characteristics.
- Noise Rejection Test: Common-mode and differential-mode noise rejection is validated to ensure signal integrity in electrically noisy environments.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty and lifetime technical support.

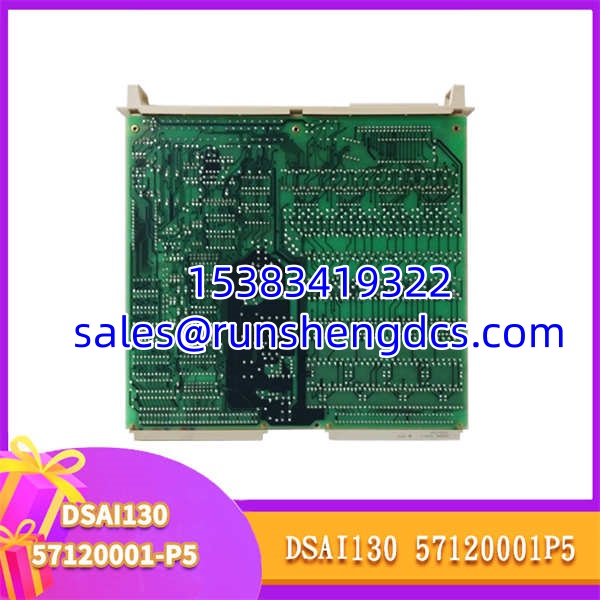

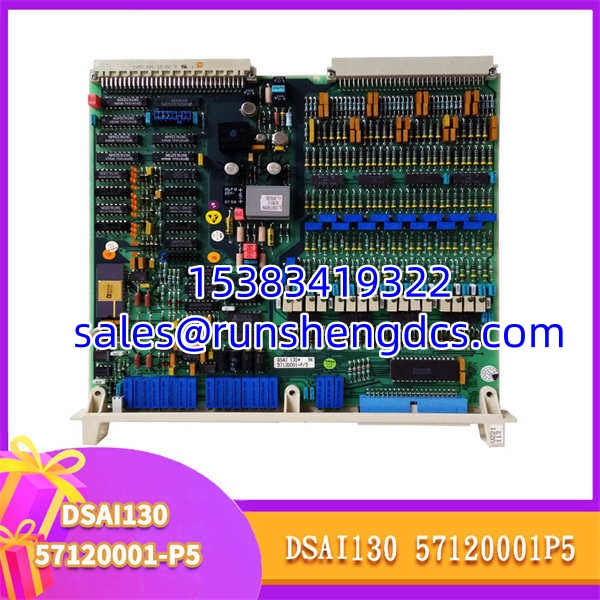

ABB DSAI130-57120001-P5
Compatibility & Migration Paths
To ensure this ABB DSAI130-57120001-P5 is 100% compatible with your Advant OCS system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly commissioning delays.
- Hardware Revision Match: Confirm the revision suffix (-P5) matches your existing module. Different revisions may have different firmware or calibration data.
- Terminal Block Compatibility: Verify your terminal block model matches the DSAI130 pinout. Older terminal blocks may not be mechanically or electrically compatible.
- Controller Compatibility: Confirm your Advant controller (e.g., AC 160, AC 280) supports this module in the designated slot position.
- Signal Range Configuration: Verify your application uses ±10V or ±10mA signals. This module does not support 4-20mA directly without external shunt resistors.
- Get Expert Help: Unsure about your Advant OCS configuration? Contact our technical team today for a free compatibility check and migration assessment.
