Description
Key Technical Specifications
- Order Code: 3BSE008508R1 (Alt: 3BSE008507R1)
- Channel Count: 16 Isolated Digital Inputs
- Nominal Input Voltage: 24 V DC
- Input Logic: Type 1/3 (IEC 61131-2), Sink (NPN compatible)
- ON/OFF Thresholds: ON ≥15V DC, OFF ≤5V DC
- Input Current: ~3.5 mA to 6 mA (at 24V)
- Isolation: 500 V RMS (Channel-to-backplane)
- Filter Time: Configurable (0, 1, 5, 10, 20 ms)
- Diagnostics: Per-channel LED indicators, wire break/short detection
- Hot Swap: Supported (with compatible TU810/TU846 terminal units)
- Operating Temp: 0°C to +60°C (derating above 50°C)
Product Introduction
Field switches and limit sensors generate messy, noisy signals, and the ABB DI810 is built to clean them up. This 16-channel digital input module acts as the frontline defender for your S800 I/O rack, converting raw 24V DC field states into reliable digital data for your AC 800M controller. It features configurable input filters (0-20 ms) specifically designed to suppress contact bounce and electrical noise in harsh environments.
Why keep this specific board in your spares cabinet? High density and fast maintenance. Packing 16 channels into a single ~35mm width saves valuable rack real estate. When a channel fails, the module supports hot-swapping, allowing you to replace it without powering down the I/O station. Bottom line—it gives you high-density signal acquisition with built-in diagnostics that make 3 AM troubleshooting significantly less painful.
Troubleshooting Quick Reference
- Fault: Single channel reads OFF when switch is closed | Cause: Blown internal channel fuse or field wiring break | Relevancy: High (85%) | Quick Check: Measure 24V at the terminal block, check green LED | Fix: Trace field wire, replace module if terminal voltage is good
- Fault: Multiple channels erratic / bouncing | Cause: EMI or filter time too low | Relevancy: Medium (70%) | Quick Check: Check Control Builder filter config, inspect cable shielding | Fix: Increase filter time to 10/20 ms, re-terminate shield
- Fault: Module fault LED (Red) solid | Cause: Backplane communication failure or internal fault | Relevancy: High (90%) | Quick Check: Reseat module on TU810/TU846 base, check ModuleBus | Fix: Clean backplane pins, replace module if fault persists
- Fault: Wire break diagnostic alarm | Cause: Open circuit or missing field power | Relevancy: Medium (60%) | Quick Check: Verify 24V field supply, check termination | Fix: Restore field power, clear diagnostic in software

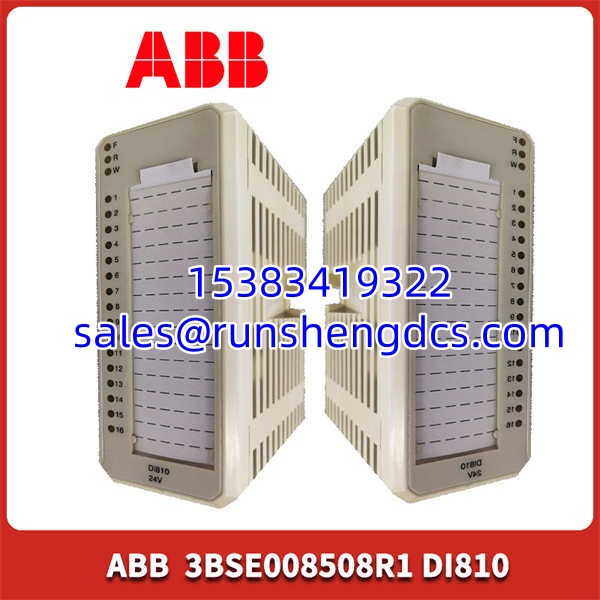

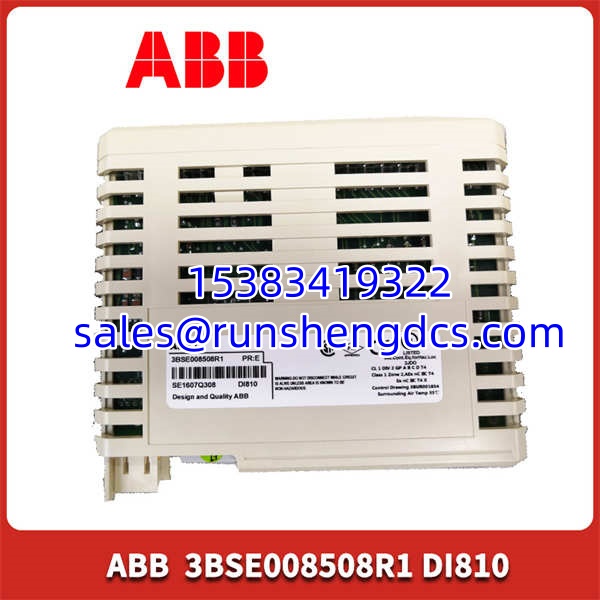

ABB-DI810
Application Scenarios & Pain Points
- Motor Control Centers (MCCs): High electrical noise from contactors and VFDs corrupts standard inputs. The DI810’s 500V isolation and configurable filters reject this noise, preventing false trips.
- Power Generation: Switchgear status monitoring requires absolute reliability. Per-channel diagnostics instantly pinpoint a failed limit switch in a massive turbine hall.
- Water Treatment: Remote pump stations face harsh conditions and require fast maintenance. Hot-swap capability means replacing a fried input board takes minutes, not hours of downtime.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for DI810 (3BSE008508R1). Verify your terminal unit (TU810 or TU846) is present and properly seated. The module won’t function without the correct base.
- ⚠️ Software Compatible: DI811 or DI814. Same physical S800 footprint, but different channel counts or input types (e.g., source vs. sink). Requires Control Builder hardware config update. Budget 1-2 hours of engineering time.
- ❌ Hardware Incompatible: S600 series modules or non-ABB digital inputs. Completely different backplane bus and terminal pinouts. Do not attempt to force fit.
