Description
Product Introduction
The ABB DI581-S (Order Code: 1SAP284000R0001) is the frontline sensor interface for your AC500-S safety system. Think of it as the nervous system’s reflex arc: it doesn’t just read a signal; it actively verifies it.
This module gives you 16 safety digital inputs, but here’s the catch: you can configure them as 16 channels at SIL2/PL d or 8 channels at SIL3/PL e. It’s not a static piece of hardware; it’s a flexible safety building block. The “B1” designation and the 8 built-in test pulse outputs are key. These pulses actively cycle your safety contacts (like E-stops or door switches) to detect welded contacts or short circuits before a real emergency happens. If your safety circuit fails a diagnostic test, this module knows it and forces a safe state.
Key Technical Specifications
| Parameter | DI581-S (1SAP284000R0001) Specification |
|---|---|
| Input Channels | 16 x SIL2 / PL d OR 8 x SIL3 / PL e |
| Test Pulse Outputs | 8 Channels (For active contact monitoring) |
| Supply Voltage | 24V DC (Internal power supply included) |
| Safety Rating | SIL 3 (IEC 61508), PL e (ISO 13849-1), Cat. 4 |
| Input Delay | Configurable: 1ms to 500ms |
| Cable Length | Up to 1000m (Shielded, dependent on config) |
| Protection | Short circuit, Reverse polarity, Overvoltage (30V DC) |
| Communication | I/O Bus (Local) or PROFIsafe (Remote via CI5xx) |
| Base Unit | Requires TU582-S Terminal Unit |
| Certifications | CE, cUL, UL, C-Tick |
Compatibility & Replacement Matrix
| Your Current Model | Direct Replacement / Variant | Notes |
|---|---|---|
| DI581-S | DI581-S | Exact match. Verify order code 1SAP284000R0001. |
| 1SAP284000R0001 | ✅ Same Hardware | The official ordering number for DI581-S. |
| DI581-S B1 | ✅ Same Hardware | “B1” is a hardware revision/designator. Fully compatible. |
| DX581-S | ⚠️ Different Module | This is a Digital Input/Output Mixed module. Not a drop-in for pure DI. |
| AI581-S | ❌ Wrong Type | Analog Input module. Completely different function. |
| TU582-S | 🔧 Required Base | The is just the electronic module. You must have the TU582-S terminal base. |
Quality Inspection & SOP Transparency
Safety modules are non-negotiable. Here’s our validation process:
- Visual & Base Inspection: We verify the “” label and check the 40-pin connector for bent pins. The TU582-S base is inspected for spring terminal tension.
- Power & Diagnostic Test: We apply 24V DC and verify the module powers up without internal faults. The “Process Power” diagnostic bit is checked.
- Test Pulse Verification: We trigger the internal test pulse generator and verify the output voltage on the test pulse terminals. A dead test pulse = a silent safety failure.
- Input Channel Injection: We simulate a 24V signal on each channel and verify the status bit changes in the safety CPU. We also test the discrepancy time monitoring by pulsing one channel of a dual-channel pair.
- Final QC & Packaging: Anti-static bag, rigid foam protection (to protect the 40-pin connector), and a test report. If the test pulse output is weak, it’s rejected.

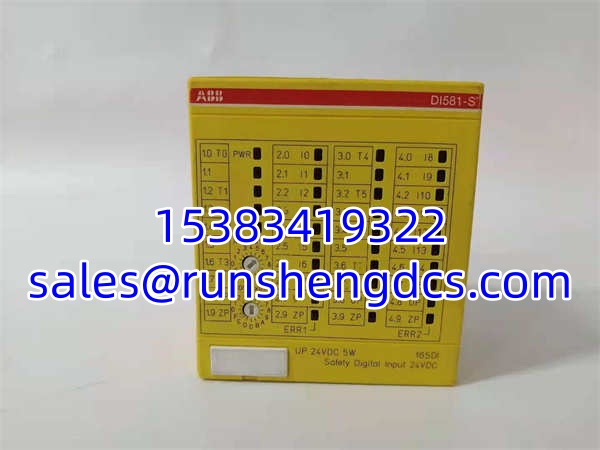

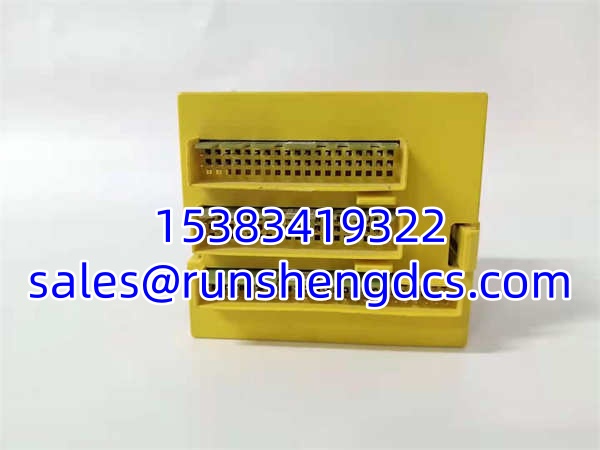

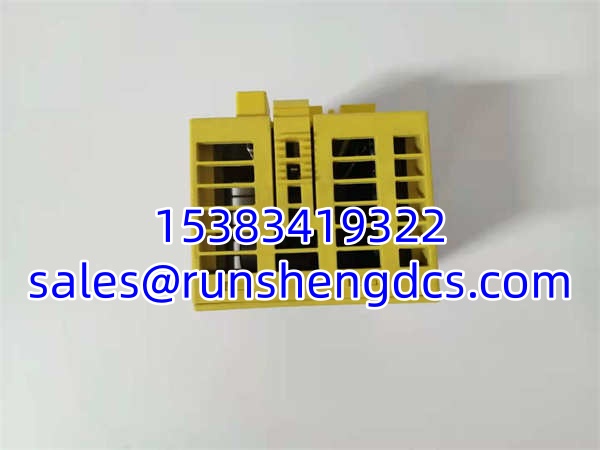

ABB DI581-S B1 1SAP284000R0001
Common Replacement Pitfalls
- Missing the Base Unit: Ordering just the electronic module and expecting it to work. You need the TU582-S terminal base to connect field wires. They are sold separately.
- Ignoring Test Pulse Wiring: For SIL3/PL e applications, the test pulse outputs must be wired to the safety contacts. Leaving them floating disables the welded contact detection and degrades the safety level.
- Wrong Input Delay: The default input delay is 5ms. If your safety light curtain has a fast response, 5ms might be too long. Conversely, a noisy mechanical switch might need 50ms. Always match the delay to your sensor’s specs in Automation Builder.
- Discrepancy Time Mismatch: In dual-channel mode, the “discrepancy time” (default 50ms) defines how long two channels can disagree before a fault. If your E-stop contacts bounce, set this higher. If it’s too low, you get nuisance faults.
- Firmware Updates: Safety module firmware updates can only be performed by qualified ABB factory personnel. Do not attempt to flash it in the field. If you suspect a firmware issue, contact ABB support.
FAQ
A: Yes. The can be freely mixed with non-safety I/O in the AC500 system. However, any channel configured as a safety input must follow safety wiring rules. You can’t mix safety and non-safety on the same physical channel.
Q: What does “16SDI / 8SDI” mean on the label?
A: It means the module has 16 physical input terminals. You can use all 16 as SIL2 inputs, or pair them up (using the test pulse outputs) to get 8 SIL3 inputs. The configuration is done in software, not hardware.
Q: My module shows a “Test Pulse Fault”. What’s wrong?
A: This means the module detected an open circuit or short on the test pulse output line while trying to verify a safety contact. Check the wiring from the test pulse terminal to the E-stop/door switch. Also, verify the contact isn’t welded shut.
A: Yes. It can be used in a remote configuration via PROFIsafe over PROFINET, using a CI501/CI502/CI504/CI506 communication interface. The safety protocol is handled transparently.
Q: How do I know if my module is SIL3 capable?
A: The is always capable hardware-wise. The achieved SIL level depends entirely on your application configuration (single vs. dual channel, test pulse usage, discrepancy time). A single-channel E-stop on this module is only SIL1/SIL2. Dual-channel with test pulses is .
