Description
Key Technical Specifications

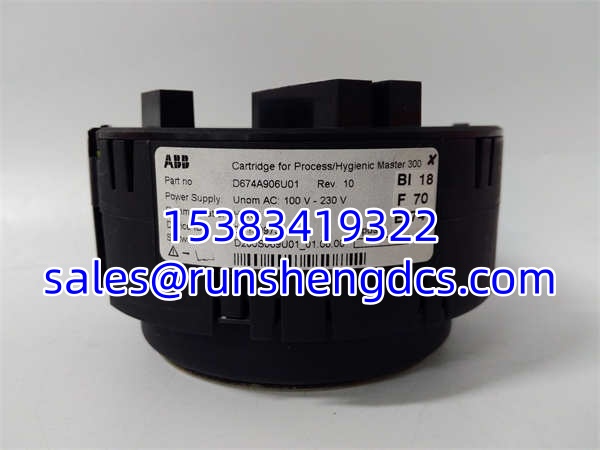

- Product Model: D674A906U01
- Manufacturer: ABB
- Product Type: Electromagnetic Flow Transmitter Head / Converter Module
- Power Supply: AC 220V (Typical for this suffix)
- Output Signal: 4-20 mA with HART Protocol
- Measurement Principle: Electromagnetic Induction
- Compatible Sensors: ABB FEP300 Series Flow Tubes
- Protection Rating: IP67 / IP68 (Depending on enclosure assembly)
- Operating Temperature: -20°C to +60°C (Electronics)
- Form Factor: Compact Flowmeter Head / Wall-Mount Converter
Product Introduction
Flow measurement drift doesn’t happen overnight; it creeps in as converter electronics age and capacitors dry out. The ABB D674A906U01 is the transmitter head that bolts directly to your electromagnetic flow sensor, converting raw electrode signals into a stable 4-20mA output for your DCS or PLC. It’s the brain of the FEP300 series, handling excitation control, signal amplification, and HART communication in a single, sealed package.
When this module fails, you don’t just lose a reading; you lose custody transfer accuracy or process control stability. The ABB D674A906U01 is engineered to handle the electrical noise of pump stations and the thermal cycling of outdoor installations. Bottom line — it’s a critical spare for any plant running legacy ABB magmeters. Verify your power supply voltage before ordering; the D674A family has AC and DC variants, and swapping them without checking will fry the board.
QA/QC Transparency SOP
We don’t just check for continuity; we verify flow accuracy. Here’s the test protocol for every ABB D674A906U01:
- Intake & Origin Verification: Visual inspection for moisture ingress, corroded terminals, or UV damage on the housing. We verify the D674A906U01 suffix matches the AC220V specification to prevent voltage mismatch failures.
- Live Functional Testing: Powered up on a calibrated test bench with a simulated flow signal. We verify the 4-20mA output tracks linearly across the range and that HART communication responds to device ID queries.
- Electrical Parameter Tests: Insulation resistance test on the AC input terminals to ensure isolation from the signal ground. We also check the internal DC rail stability under load to catch failing smoothing capacitors.
- Firmware/Config Verification: Read the HART device tag and calibration constants. We confirm the module isn’t locked out or corrupted from a previous power surge event.
- Final QC & Anti-Static Packaging: Sealed in an ESD-safe bag with desiccant. Shipped with a test report confirming output linearity and communication status.
Field Engineer Gotchas
AC vs. DC Voltage Mismatch: The D674A906U01 is typically an AC220V unit. If you install this on a 24VDC loop without a transformer, you’ll destroy the power supply section instantly. Always verify the nameplate voltage against your field wiring. I’ve seen techs assume “all flow heads are 24V” and turn a $3k spare into a paperweight in seconds.
HART Communication Ground Loops: If your HART communicator won’t talk to the , check your grounding. Electromagnetic flowmeters are notoriously sensitive to ground loops. A 2V potential difference between the flow tube ground and the control system ground can corrupt HART signals. Isolate the signal ground at the transmitter if possible.
Moisture Ingress in Aging Units: These modules have been in service for decades. Even IP68 ratings degrade over time. If you’re replacing a failed , inspect the cable gland and O-ring seal on the flow tube. If the sensor is waterlogged, the new transmitter will fail too. Dry out the sensor or replace the entire assembly.
Calibration Constants: The stores sensor-specific calibration data. If you swap it to a different flow tube without re-calibrating, your flow reading will be wrong by the mismatch factor. Always copy the calibration constants from the old unit or perform a zero/span calibration after installation.

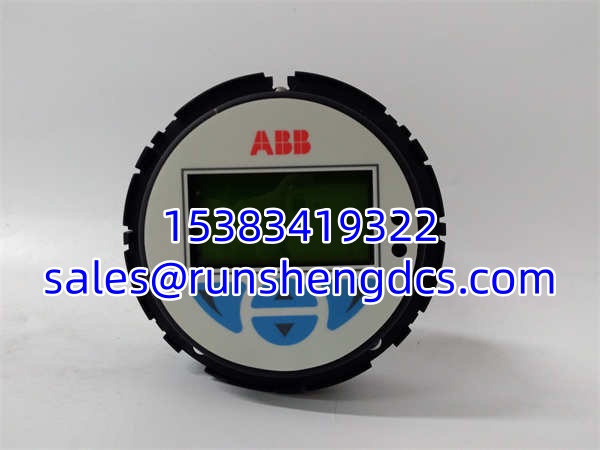

ABB D674A906U01
Application Scenarios
Custody Transfer in Water Utilities: Municipal water plants rely on modules for billing accuracy. When these fail, revenue is lost. The module’s HART capability allows technicians to verify calibration without pulling the flow tube, minimizing disruption to critical water supply.
Chemical Dosing Control: Precise chemical dosing requires stable flow feedback. The provides the 4-20mA signal that modulates dosing pumps. A drifting transmitter leads to over/under-dosing, risking regulatory violations or product quality issues.
Wastewater Treatment Plants: Harsh environments with high humidity and corrosive gases accelerate electronics failure. The ’s sealed enclosure protects internal circuitry, but regular inspection of cable glands is essential. I’ve seen plants replace three transmitters in a year before realizing the conduit was acting as a water funnel.
Real-World Failure: A power plant had an that kept blowing its internal fuse. Maintenance replaced the module twice. Root cause: a failing excitation coil in the flow tube was drawing excessive current. The transmitter was protecting itself, but the real fix was replacing the flow tube. Always check the sensor side when transmitters fail repeatedly.
FAQ
Yes, but you must re-calibrate. The stores sensor-specific K-factors. Swapping to a different size or serial number without updating the calibration will give incorrect flow readings.
Is this compatible with PROFIBUS or Modbus?
The standard supports HART over 4-20mA. For native fieldbus protocols, you typically need a different converter model or an external gateway. Check the exact suffix; some variants have built-in fieldbus, but this one is primarily HART.
What is the lead time for new units?
This is a discontinued/legacy part. Availability is from new surplus stock only. Lead times depend on current inventory. We recommend securing spares now rather than waiting for a failure.
Can I repair this module in-house?
Not recommended. The contains high-voltage AC circuitry and precision analog components. Repairs require specialized calibration equipment and factory-certified procedures. Replace, don’t repair.
Does this support bidirectional flow?
Yes. The measures flow in both directions and can output separate totals or a signed 4-20mA value. Verify the configuration parameter for bidirectional mode is enabled.
What if the display is blank but output is good?
The display and output circuits are separate. A blank display with valid 4-20mA output usually indicates a failed LCD or backlight, not a total module failure. The can still function for control purposes.
Is there a modern replacement?
ABB’s current FEP300/FEP500 series offers improved diagnostics and connectivity. However, mechanical mounting and electrical interfaces may differ. Retrofitting requires careful planning. For immediate restoration, the is the correct drop-in spare.
