Description
Key Technical Specifications
| Parameter | Specification | Field Note |
|---|---|---|
| Part Number | 3DDE300412 | Core ABB identifier |
| Module Type | CMA132 | Generator Relay Terminal Board |
| System Platform | Synpol D | Legacy generator control system |
| Core Function | Synchronization & Load Sharing | Controls M.Breaker & Sync On |
| Outputs | ±10V / 4-20mA | Active Power Output |
| Protection | Short Circuit / Diff. Protection | Internal fault detection |
| Dimensions | 13 x 20 x 8 cm | Standard rack module |
| Weight | 0.57 kg | Lightweight control card |
| Status | Obsolete / Legacy | No new OEM support |
| Condition | Refurbished | Tested on Synpol D bench |
| Warranty | 12 Months | Standard surplus warranty |
| Origin | ABB | Original manufacturer |
Product Introduction

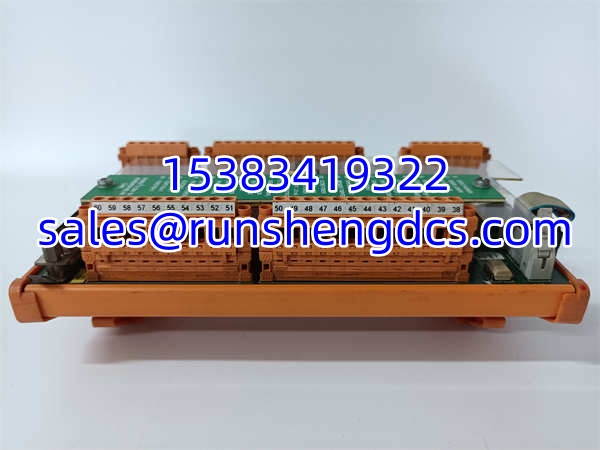

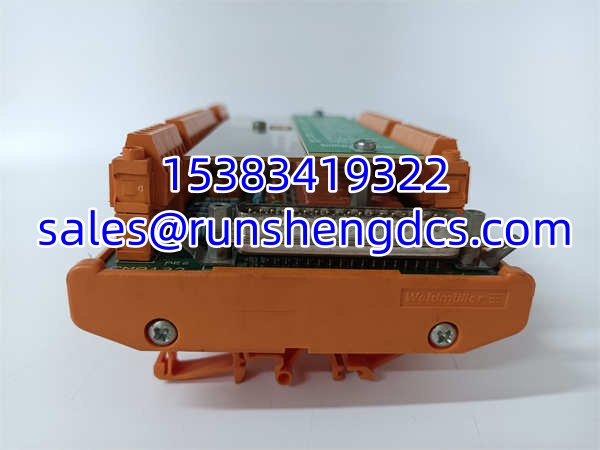

When a Synpol D generator controller throws a sync fault at 2 AM, the ABB CMA132 3DDE300412 is usually the first card you pull. This isn’t a generic PLC module; it’s a dedicated generator relay terminal board handling synchronization, load sharing, and breaker control. The ABB CMA132 3DDE300412 manages the critical handshake between your generator and the bus, including active power output signaling and reverse power protection.
You spec the ABB CMA132 3DDE300412 because your Synpol D panel is 20+ years old and ABB has moved to newer platforms. This card keeps your existing generator paralleling system running. Expect aging components; the analog output stages and relay drivers are the usual failure points. It’s not about new features anymore; it’s about keeping the lights on until the next capital project. Bottom line — it works, but treat it like a vintage generator controller, not a modern digital one.
QA/QC Transparency SOP
- Intake & Origin Verification: We verify the ABB CMA132 3DDE300412 serial number against known Synpol D production batches to identify revision-specific issues, specifically checking for aging electrolytic caps on the analog output stage.
- Live Functional Testing: Units are powered up on a Synpol D test bench with simulated generator signals. We verify the ABB CMA132 3DDE300412 can execute sync-on commands and output correct 4-20mA active power signals without drift.
- Electrical Parameter Tests: All DC rails and analog outputs are checked with a Fluke 87V for accuracy and ripple. We verify the ±10V and 4-20mA outputs are within 1% tolerance under load.
- Firmware/Config Verification: Internal jumpers and DIP switches are documented. We verify the configuration matches common Synpol D defaults to prevent “Sync Fail” or “Reverse Power” trips on install.
- Final QC & Anti-Static Packaging: Connectors are inspected for pin damage, conformal coating is checked for moisture, and the is sealed in static-shielding bags with desiccant.
Field Engineer Gotchas
- Analog Output Drift: The uses older DAC circuits that drift over time. Risk: Active power output reads 5% off, causing load sharing issues. Fix: Calibrate the 4-20mA output against a precision meter before putting the generator online. Don’t trust the factory calibration.
- Sync-On Relay Sticking: The internal sync-on relay on the can weld contacts after years of high-cycle operation. Risk: Generator closes to bus out of phase. Fix: Listen for the relay click during testing. If it sounds mushy or doesn’t click, replace the card immediately. This is a safety-critical failure.
- Jumper Configuration Hell: The has jumpers for voltage scaling, frequency range, and protection settings. Risk: Swapping a card from Generator A to Generator B without checking jumpers = false trip or no sync. Fix: Photograph the old card’s jumpers BEFORE pulling it. Label everything.
- Power Supply Sag: The is sensitive to 24VDC ripple. Risk: Card resets during generator startup when starter motors load the battery. Fix: Check the 24V supply with an oscilloscope. If ripple exceeds 5%, add a filter cap or upgrade the PSU.
ABB CMA132 3DDE300412
Application Scenarios
- Emergency Generator Paralleling: Hospital or data center backup power systems where the handles the critical sync-to-bus sequence during utility failure.
- Industrial Cogeneration: Combined heat and power plants where multiple generators share load. The provides the active power output signal for droop control.
- Marine Power Systems: Shipboard generators where the manages synchronization in harsh vibration environments.
FAQ
Technically yes, but practically no. The Synpol D panel wiring and I/O are designed for this card. Retrofitting would require rewiring the entire generator control panel and reprogramming the protection logic. For most legacy systems, the engineering cost exceeds the machine’s value.
Is the 3DDE300412 compatible with the 3DDE300411?
Usually, but verify the revision. ABB changed some analog scaling in later revisions. If your Synpol D panel is pre-2000, confirm the hardware revision matches your system’s age.
Does this card support hot-swapping?
Absolutely not. The controls live generator synchronization. Pulling it while the generator is running can cause a catastrophic out-of-phase closure. LOTO first, shut down the generator.
These are older analog cards. The DAC and op-amp circuits drift with temperature and age. If the drift exceeds 2%, the card needs recalibration or replacement. Don’t try to compensate in the PLC; fix the root cause.
Can you repair the original board instead of replacing it?
Yes, but lead times are 3-6 weeks for obsolete components. A refurbished from stock gets you running in 24-48 hours. For critical generators, buy the spare now and send the old one for repair later.
What is the output signal for active power?
The provides both ±10V analog and 4-20mA current outputs. Use the 4-20mA for long cable runs to avoid voltage drop errors. The ±10V is for short-distance panel meters.
We provide a pinout sheet with every shipment. Don’t trust internet PDFs; ABB changed pin assignments between Synpol D revisions. Verify against the physical label and jumper settings on your .
