Description
Key Technical Specifications
- Product Model: CI867K01
- Order Code: 3BSE043660R1
- Manufacturer: ABB
- Product Category: Communication Processor Module
- Communication Protocol: Profibus DP V1
- Max Baud Rate: 12 Mbps
- Slave Capacity: Up to 70 slaves per channel
- Master Capacity: Up to 8 masters per channel
- Isolation: Galvanic isolation between channels and backplane

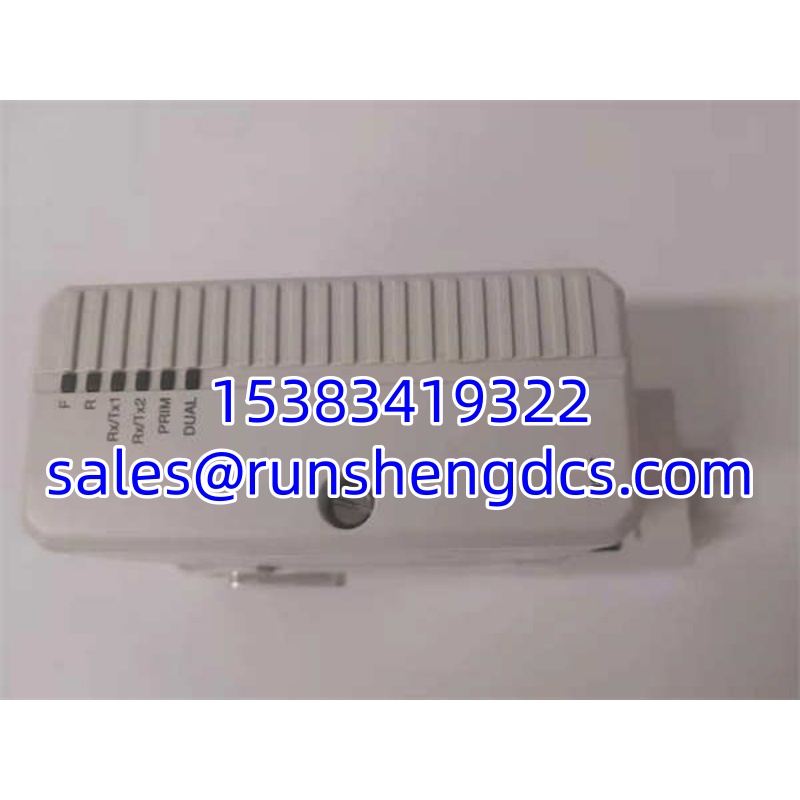

- LED Indicators: 6 status LEDs for diagnostics
- Power Consumption: Typical 160 mA at 24V DC
- Operating Temp: -20°C to +55°C
Product Introduction
Profibus networks in aging AC800M systems are notorious for intermittent faults, and the CI867K01 is often the first suspect when the bus goes silent. This module isn’t just a passive adapter; it’s an active Profibus DP master that manages token passing and cycle timing for up to 70 field devices. When this card starts failing, you see it as scattered I/O faults or complete bus drops, not a simple “card dead” alarm.
Engineers specify the CI867K01 because it handles the heavy lifting of Profibus protocol management, offloading the main AC800M CPU. It supports 12 Mbps speeds, but in practice, most plants run it at 1.5 or 3 Mbps to maintain signal integrity over long cable runs. Bottom line: if your System 800xA is losing Profibus slaves, verify the termination and cabling first, but keep a tested CI867K01 on the shelf. It’s a known wear item in high-noise environments.
QA/QC Transparency SOP
- Intake & Origin Verification: We verify the 3BSE043660R1 is genuine ABB hardware, checking the PCB revision and component date codes to ensure it matches the CI867K01 specification.
- Live Functional Testing: The module is installed on an AC800M test rack with active Profibus slaves to confirm it establishes a bus token, reads slave diagnostics, and passes cyclic data.
- Electrical Parameter Tests: Using a Fluke multimeter, we check the Profibus A/B line impedance and verify the internal 5V/3.3V regulators are within tolerance under load.
- Firmware/Config Verification: We read the module’s internal configuration to ensure the firmware revision is compatible with the target AC800M controller version.
- Final QC & Anti-Static Packaging: After passing all tests, the CI867K01 is packed in an anti-static bag with desiccant to protect the sensitive transceiver ICs during shipping.
Field Engineer Gotchas
- Termination Resistor Confusion: The has internal termination, but it’s not always enabled by default. If this is the last device on the bus, you must verify the DIP switch or software setting enables the 110-ohm termination. I’ve seen entire weekends wasted chasing “bus short” faults that were just missing termination.
- Baud Rate Mismatch: The module auto-detects baud rate, but if the bus is noisy, it can lock onto the wrong speed. Always hard-set the baud rate in the hardware configuration to match your physical layer. Don’t rely on auto-detect for critical loops.
- Backplane Seating: The uses a high-density backplane connector. If you force it in at an angle, you will bend pins. Always use the extraction tool and seat it perfectly straight. A bent pin here can short the backplane and kill the CPU.
- ESD Sensitivity: The Profibus transceivers are highly susceptible to ESD. I’ve seen a “new surplus” fail instantly because a tech handled it without a wrist strap in a dry control room. Ground yourself before touching the board.

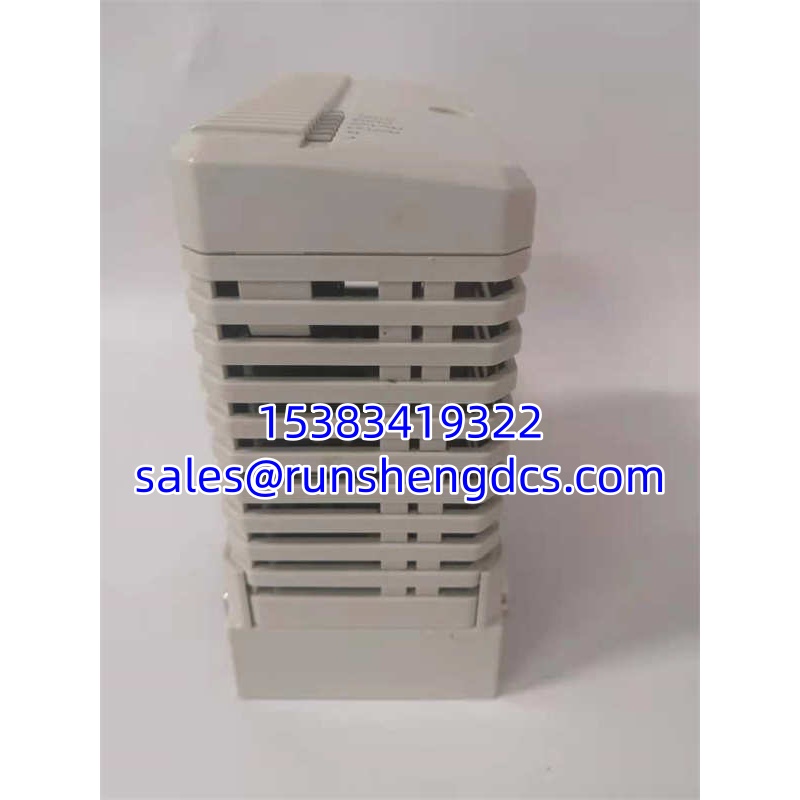

ABB 3BSE043660R1 CI867K01
Application Scenarios
Chemical Reactor Control: ABB AC800M controllers use the to manage Profibus-connected valve positioners and flow meters on critical reactors. When the module fails, the reactor defaults to a safe state, but production stops until the bus is restored.
Power Plant Auxiliaries: Coal and gas plants use the to communicate with motor control centers and pump drives via Profibus. A failed module here can cause auxiliary system trips, leading to unit derates or shutdowns.
Water Treatment Filtration: Municipal water plants rely on the to manage backwash valves and chemical dosing pumps. A bus fault here means dirty water or chemical overfeed, making immediate replacement critical for public health compliance.
Case Study: A regional chemical plant experienced intermittent Profibus faults on a reactor feed system. The HMI showed scattered I/O faults, but no single slave was consistently bad. Maintenance replaced cabling and terminators, but the faults persisted. A senior tech swapped the with a verified surplus unit, and the bus stabilized immediately. Post-mortem analysis revealed the original module’s internal transceiver had degraded, causing timing errors under load. The fix took 30 minutes and saved a $200k reactor shutdown.
FAQ
Is the compatible with newer AC800M High Integrity controllers?
No. The is designed for standard controllers. High Integrity (HI) controllers require specialized safety-rated communication modules. Verify your controller type before ordering.
Can I hot-swap this module while the rack is powered?
No. The backplane is not designed for hot-swapping communication modules. Pulling the under power will likely corrupt the backplane data bus or damage the replacement card. Always lock out and tag out the rack power.
My system has a CI866K01. Can I use the as a drop-in?
Generally, yes. The is a direct replacement for the CI866K01 with improved firmware and diagnostics. However, always verify the firmware revision in your hardware configuration matches the new module’s capabilities.
What does the red “SF” LED on the mean?
The System Fault (SF) LED indicates a bus-level error, such as a short, open circuit, or excessive noise. Check your Profibus cabling, termination, and slave diagnostics first. If the SF LED stays solid red after a power cycle, the module’s internal transceiver is likely damaged.
Is this module repairable in the field?
No. The is a sealed, multi-layer PCB with BGA components. Field repair is impossible. Your only options are verified surplus replacement or sending it to a specialized component-level repair shop with ABB schematics.
