Description
Key Technical Specifications
- Product Type: PROFIBUS-DP/V1 Communication Interface
- Order Number: 3BSE030220R1
- Protocol: PROFIBUS-DP Master Class 1 & 2
- Communication Speed: 9.6 kbit/s up to 12 Mbit/s
- Node Capacity: Max 32 nodes per segment (126 with repeaters)
- Physical Ports: 2x DB9 Sockets (located on TP854 base)
- Power Supply: 24 V DC via CEX-Bus (190 mA typical, 240 mA max)
- Power Consumption: 4.6 W typical
- Redundancy Support: Master redundancy and slave redundancy
- Protection Level: IP20 (EN 60529, IEC 529)
- Dimensions: 59 mm x 185 mm x 127.5 mm (W x H x D)
- Weight: ~0.7 kg (including TP854 base)
Product Introduction
DCS systems go blind when fieldbus comms drop. The CI854AK01 (3BSE030220R1) is the PROFIBUS-DP/V1 master module that bridges your AC 800M controller to the plant floor. It sits on the CEX-Bus and translates controller commands into DP-V1 cyclic and acyclic telegrams for your drives, valves, and remote I/O.
You need this specific board because it handles redundancy natively. With dual DB9 ports, it supports both line redundancy and master redundancy without external hardware. It also supports online replacement, meaning you can swap a failed module without shutting down the AC 800M rack. Bottom line: it is the critical communication artery between your DCS brain and your field devices.
Troubleshooting Quick Reference
- Red LED Fault Light: 80% chance it’s a bus termination or wiring issue. Verify that both ends of the PROFIBUS segment have active terminators. Check for reversed A/B lines at the DB9 connector.
- Intermittent Comm Drops: Inspect the CEX-Bus seating. Voltage drop on the 24 V CEX-Bus causes module resets. Measure the 24 V rail directly at the module pins under load.
- Master Redundancy Failover Not Working: Check the redundancy coupling cable. The CI854A requires proper coupling between primary and secondary modules. Verify the redundancy parameters in the hardware configuration.
- Module Not Detected by Controller: Inspect the TP854 base. Bent pins on the CEX-Bus connector or a damaged code-locking mechanism prevent proper seating. Reseat firmly and check for physical damage.

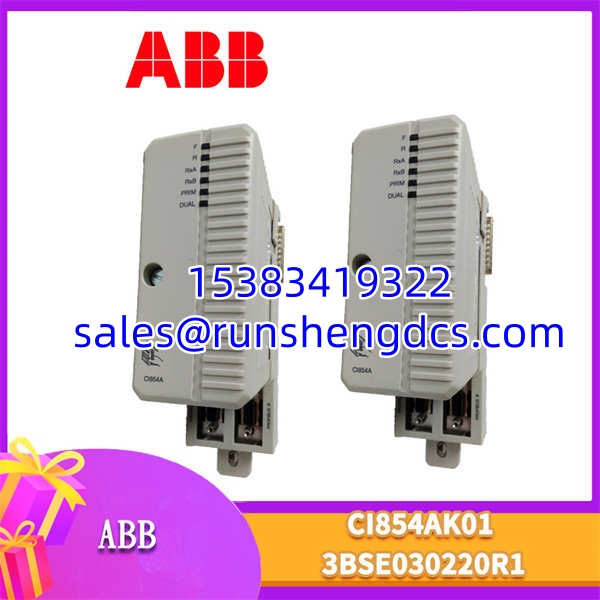

ABB-CI854AK01-3BSE030220R1
Application Scenarios & Pain Points
- Pulp & Paper Mills: Massive PROFIBUS networks with hundreds of drives face constant EMI from VFDs. The CI854A’s galvanic isolation and dual-port redundancy keep the network alive during electrical noise storms.
- Oil & Gas Refineries: Safety-critical valve positioners demand zero communication loss. DP-V1 acyclic messaging allows real-time diagnostics without interrupting cyclic control data.
- Water Treatment Plants: Distributed pump stations span kilometers of cable. The 12 Mbit/s speed and repeater support (up to 126 nodes) ensure fast scan times across the entire facility.
Compatible Replacement Models
- ✅ Drop-in Replacement: CI854AK01 / 3BSE030220R1 (Exact match. Verify the TP854 base is included. No configuration changes needed if replacing identical hardware.)
- ⚠️ Software Compatible: CI854BK01 / 3BSE069449R1 (Newer generation DP-V1 master with FPGA-based processing. Requires hardware configuration update in Control Builder. Budget 4-6 hours for re-download and testing.)
- ❌ Hardware Incompatible: CI853K01 (RS-232 interface, completely different protocol and pinout. Do not attempt as a PROFIBUS replacement.)
