Product Introduction

Integrating third-party devices into an ABB AC 800M DCS environment requires a reliable communication bridge. The ABB CB801 (3BSE042245R1) serves as that bridge — a PROFIBUS DP slave communication module that connects Panel 800 HMIs, external PLCs, variable frequency drives, and field instruments to the AC 800M controller architecture.

Its value lies in protocol interoperability. Rather than requiring a separate gateway or custom serial interface, the CB801 provides native PROFIBUS DP slave connectivity at speeds up to 12 Mbps with configurable node addressing from 0 to 255. The DB9 female connector is industry-standard, simplifying cable termination. Beyond external device integration, this module also functions as a high-speed communication baseboard between AC 800M CPUs and CI-series communication cards, enabling redundant configurations that support bumpless failover — critical for continuous process applications in power generation, petrochemical, and metallurgical environments.

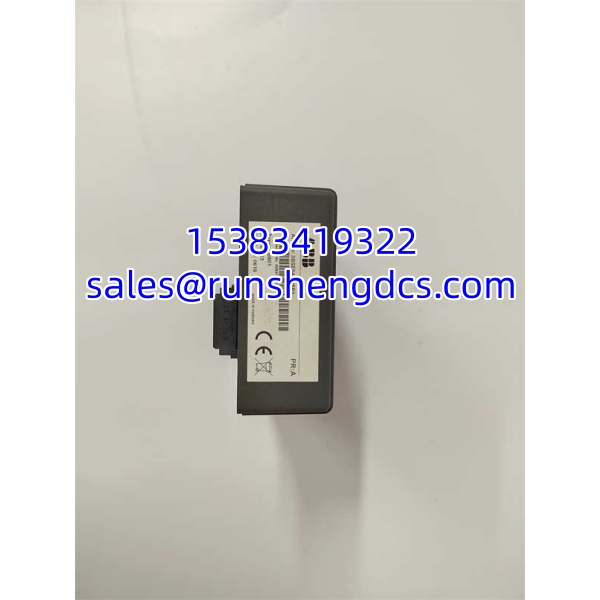

ABB CB801 3BSE042245R1

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm the model CB801 and order code 3BSE042245R1 on the module label. Verify physical condition: no cracked housing, intact DB9 connector pins, and undamaged mounting clips.
2. Live Functional Testing — Install in a compatible AC 800M rack with an appropriate CPU. Configure as a PROFIBUS DP slave node and connect to a DP master (e.g., Panel 800 or third-party PLC). Verify successful bus participation, correct node address recognition, and data exchange at multiple baud rates.
3. Electrical Parameter Tests — Measure 24VDC supply current draw to confirm <10W consumption. Check DB9 pin continuity and signal integrity. Verify ground isolation between the PROFIBUS interface and the backplane.
4. Redundancy Verification — If configured for redundant operation, simulate a primary module failure and confirm bumpless switchover to the secondary unit without process interruption.
5. Final QC & Anti-Static Packaging — Inspect all connectors, verify label accuracy, and test mechanical seating. Package in anti-static material with rigid corner protection. Include a test report documenting baud rate, node address, and redundancy test results.

Field Engineer Gotchas

• Not a DP master. The CB801 operates exclusively as a PROFIBUS DP slave. If your application requires the AC 800M to act as a DP master, you need a CI854 or CI864 communication card instead.
• Baud rate mismatch. Both ends of the PROFIBUS segment must agree on baud rate. A mismatch between the CB801 and the DP master will prevent communication entirely — the node simply will not appear on the bus.
• Node address conflict. Each PROFIBUS DP slave on a segment must have a unique address (0–255). Duplicate addresses cause intermittent communication failures that are notoriously difficult to diagnose.
• Termination resistor placement. The first and last nodes on a PROFIBUS segment require active bus termination. Forgetting to enable the termination resistor on the (if it is the last node) causes reflection errors and data corruption.
• Redundancy configuration complexity. While the supports redundant operation, the switchover logic must be properly configured in the AC 800M engineering tool. An incorrect redundancy setup can cause process trips during failover instead of bumpless transfer.

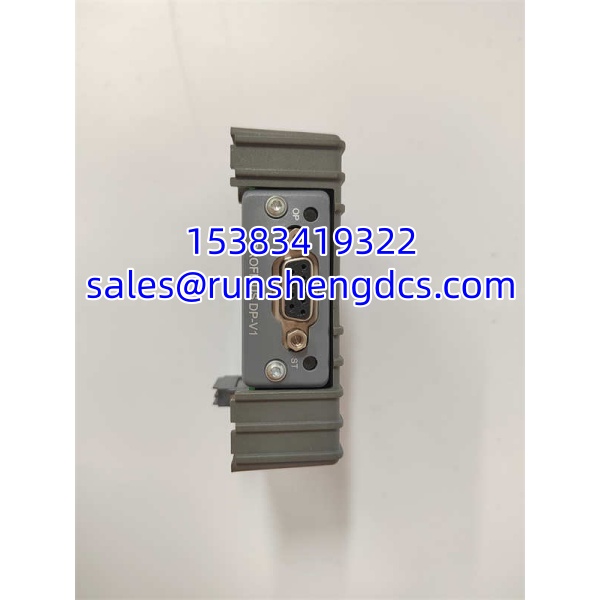

ABB CB801 3BSE042245R1

Application Scenarios

• Power plant auxiliary system integration. Connecting third-party boiler feed pump VFDs and fan drives to the AC 800M DCS via PROFIBUS DP, eliminating the need for hardwired analog I/O.
• Panel 800 HMI connectivity. Providing the communication link between AC 800M controllers and Panel 800 operator interfaces in local control panels.
• Legacy system migration. Serving as the standard communication baseboard during MOD 300/200 to AC 800M migration projects, maintaining continuity with existing PROFIBUS field devices.
• Redundant process control loops. In critical applications such as cement kiln control or water treatment plants, dual modules provide bumpless redundancy for uninterrupted communication with field instrumentation.

FAQ

It is a PROFIBUS DP slave only. For master functionality, use a CI854 or CI864 communication card with the AC 800M CPU.

Yes. It supports redundant configuration with bumpless switchover when properly set up in the AC 800M engineering environment.

What is the maximum baud rate?
12 Mbps, which is the standard maximum for PROFIBUS DP.

Does it work with non-ABB devices?
Yes. As a standard PROFIBUS DP slave, it can communicate with any PROFIBUS DP master, including Siemens PLCs, third-party HMIs, and other DP-compatible devices.

Is this module still available from ABB?
The AC 800M platform remains an active ABB product line. However, specific module availability and lead times should be confirmed with ABB or an authorized distributor before procurement planning.

What CPU models is it compatible with?
It interfaces with AC 800M CPUs including PM851, PM856, PM864, and PM865, either directly or as a baseboard for CI-series communication cards.

Can I hot-swap this module?
The AC 800M system supports hot-swapping of many modules, but replacing a communication module while the system is live should be done with caution. If the module is part of a redundant pair, verify the secondary unit is healthy before removing the primary. Consult the ABB OEM procedure before performing live swaps.
