Description
Key Technical Specifications
- Part Number: 3BSE092695R1 (Alternative: 3BHT300036R1)
- Channel Count: 16 Differential Inputs
- Input Signals: 4-20 mA, 0-20 mA, ±10 V DC
- Basic Accuracy: ±0.1%
- Resolution: 12-bit
- Max Sampling Rate: 10 samples/sec/channel
- Isolation Voltage: 1500 V AC (Channel-to-channel / Channel-to-ground)
- Input Impedance: >1 MΩ (Voltage), 250 Ω (Current)
- Overload Protection: ±30 V (Voltage), ±40 mA (Current)
- Operating Temp: -25°C to +70°C
- Mounting: S800 Series DIN Rail (Requires SD821/SD822 base)
Product Introduction
Field sensors are only as good as the hardware reading them. The ABB AI625 acts as the eyes and ears of your S800 DCS rack, grabbing 16 channels of analog data from pressure transmitters, thermocouples, and flow meters. It takes the messy, noisy 4-20 mA or 0-10 V signals from the plant floor and digitizes them with a tight ±0.1% accuracy.
Why trust this specific board? Industrial environments are electrically hostile. Ground loops and EMI will fry lesser cards, but the AI625 boasts 1500 V AC isolation and a 120 dB common-mode rejection ratio. It essentially acts as a shield for your control system. Plus, with built-in overload protection, a field wiring mistake won’t instantly brick the module.
Troubleshooting Quick Reference
- Fault: Channel reads zero / open wire | Cause: Broken field wire or blown internal fuse | Relevancy: High (85%) | Quick Check: Measure 24V loop supply at the sensor, check LED diagnostics | Fix: Trace wiring, replace module if loop power is good
- Fault: Erratic / noisy readings | Cause: Ground loop or unshielded cable | Relevancy: High (80%) | Quick Check: Verify single-point grounding, inspect cable shielding | Fix: Re-terminate shield, isolate sensor ground
- Fault: Module fails to communicate | Cause: Loose backplane connection or missing base | Relevancy: Medium (70%) | Quick Check: Reseat module, verify SD821/SD822 base is locked | Fix: Clean backplane pins, replace locking mechanism
- Fault: Over-voltage fault LED | Cause: Field short or power supply spike | Relevancy: Medium (60%) | Quick Check: Measure input terminals for >30V DC | Fix: Isolate field device, replace module if permanently latched

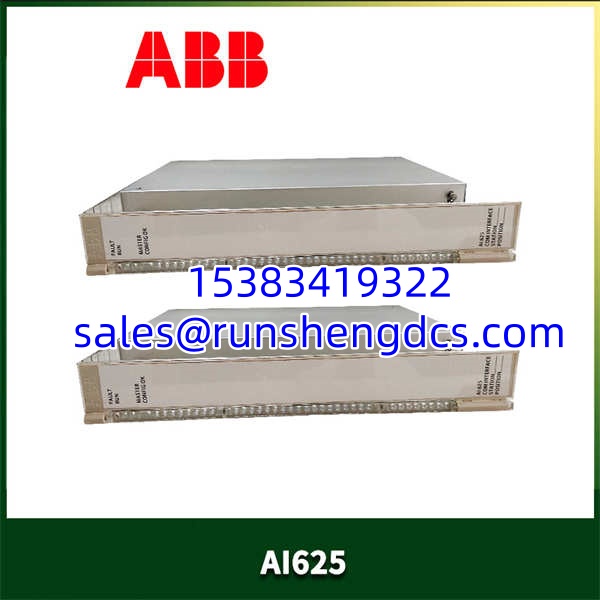

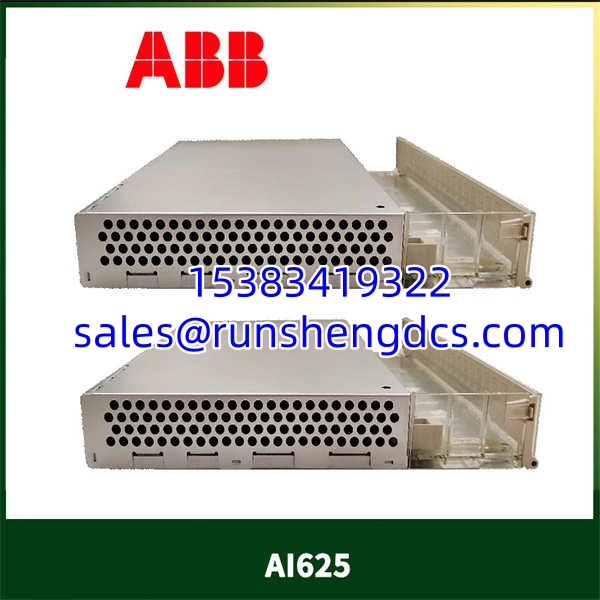

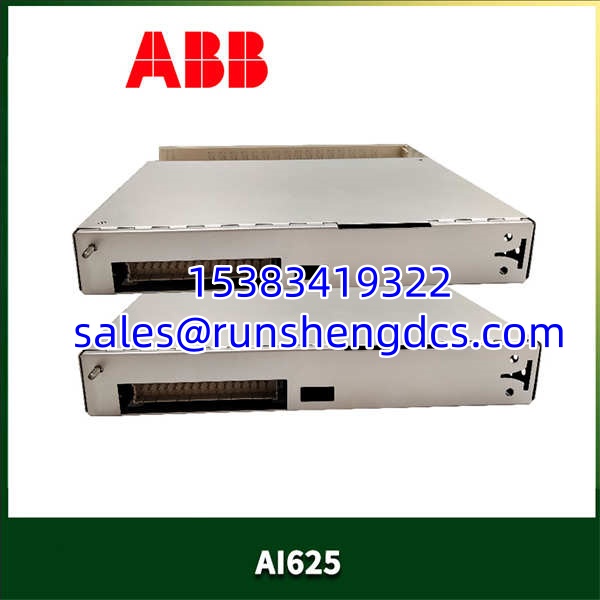

ABB-AI625
Application Scenarios & Pain Points
- Oil & Gas Refining: High EMI from massive VFDs corrupts standard analog signals. The AI625’s 120 dB CMRR filters out the noise, keeping reactor pressure readings stable.
- Water Treatment: Remote lift stations suffer from terrible grounding. 1500 V isolation prevents ground loops from frying the entire I/O rack during lightning storms.
- Power Generation: Boiler control demands extreme precision. ±0.1% accuracy ensures steam temperature stays within safe limits, preventing tube failures.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for AI625 (3BSE092695R1). Verify your S800 base unit (SD821 or SD822) is present. The module itself won’t work without the proper base.
- ⚠️ Software Compatible: AI615 or AI620. Same physical footprint, but different channel counts or signal ranges. Requires Control Builder hardware config update. Budget 1-2 hours of engineering time.
- ❌ Hardware Incompatible: S600 series modules or non-ABB analog cards. Completely different backplane bus and terminal pinouts. Do not attempt to force fit.
