Description
Key Technical Specifications
- Brand: ABB
- Model Number: 83SR04C-E
- Alternative Part Numbers: GJR2390200R1411, GJR2390211R45
- Operating Voltage: 24 VDC
- Interface Voltages: US11, US21, US31, US41 (Short-circuit-proof)
- Binary Control Capacity: Up to 4 binary function group controls
- Analog Control Capacity: Max 4 analog control loops (3-step controllers)
- Memory Type: Non-volatile EEPROM
- Operating Modes: Binary, Analog, Signal Conditioning
- Communication: Station-bus with parity bit error checking
- Addressing: Automatic via module plugging
- Target Levels: Drive, group, and unit control
Product Introduction
Legacy DCS systems in heavy industry are the backbone of plant operations, but finding replacement parts for older platforms like PROCONTROL P14 is a nightmare. The ABB 83SR04C-E (GJR2390200R1411 / GJR2390211R45) is a specialized control module designed to handle stored-program binary and analog control tasks at the drive, group, and unit levels. It acts as the brain for unidirectional drives, actuators, and solenoid valves, processing sequential logic and 3-step control loops without missing a beat.
Bottom line—this module is built for operational flexibility and fault tolerance. It features four hardware interfaces and can operate in binary, analog, or signal conditioning modes depending on your process needs. Data transfers over the station-bus are constantly checked for parity errors, ensuring reliable communication. Plus, the user program is stored in non-volatile EEPROM, meaning you won’t lose your logic during a power outage. If your P14 station is failing, this exact-match board gets your plant back online fast.
Troubleshooting Quick Reference
- Fault: ST or SG LED illuminated | Cause: Module disturbance or bus communication error | Relevancy: 80% chance of bus parity failure | Quick Check: Read ST/SG LEDs, check station-bus cabling | Fix: Reseat module, verify bus termination and parity settings
- Fault: Drive/Actuator not responding | Cause: Invalid user list or mode mismatch | Relevancy: 70% chance of configuration issue | Quick Check: Verify TXT1 function block settings via PDDS | Fix: Reload valid user list, confirm operating mode
- Fault: Intermittent I/O failures | Cause: Interface voltage drop or short | Relevancy: 60% chance of field wiring issue | Quick Check: Measure US11-US41 supply voltages | Fix: Check field wiring for shorts, verify 24 VDC supply
- Fault: Module fails to initialize | Cause: Corrupted EEPROM or backplane issue | Relevancy: 50% chance of memory corruption | Quick Check: Attempt PDDS download via station-bus | Fix: Re-download firmware/config, replace if unresponsive

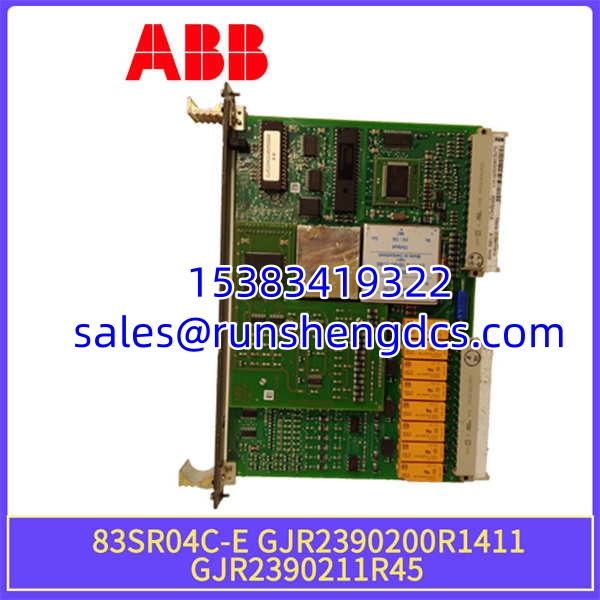

ABB-83SR04C-E-GJR2390200R1411-GJR2390211R45
Application Scenarios & Pain Points
- Cement & Mining Mills: Massive unidirectional drives and actuators require precise 3-step analog control. This module handles the sequential logic without dropping bus communications.
- Chemical Processing Plants: Solenoid valves and binary function groups demand fault-tolerant parity checking. A single bus error here can cause a batch loss.
- Aging Power & Water Facilities: PROCONTROL P14 systems are decades old. Finding an exact GJR2390200R1411 prevents a million-dollar DCS migration project.
Compatible Replacement Models
- ✅ Drop-in Replacement: 83SR04C-E / GJR2390200R1411 (Exact Match). Hardware identical. Zero reprogramming required. Address is set automatically by plugging into the P14 station.
- ⚠️ Software Compatible: 83SR04C-E / GJR2390211R45. Same core module family, but requires parameter verification. Budget 2-4 hours of engineering labor to ensure TXT1 function blocks and bus configurations match.
- ❌ Hardware Incompatible: Generic PLC I/O cards or newer ABB AC800M modules. Do not attempt to adapt these. Different backplane pinouts, missing P14 station-bus protocol, and incompatible TXT1 logic. Will not communicate.
