Product Introduction

When an IGCT in a medium-voltage drive stack fails, the entire converter leg goes down — and the process stops. The ABB 5SHY5055L0002 is a high-power IGCT module from ABB’s 5SHY family, used in medium-voltage variable-speed drives, static VAR compensators (SVC), STATCOM systems, and large industrial rectifier/inverter bridges. It is paired with the GVC736BE101 gate drive unit (part number 3BHE019719R0101), which provides the trigger pulses, gate supply monitoring, and fault protection required to switch the IGCT reliably.

The 5SHY family covers a wide range of current and voltage classes. The “5055” designation indicates a specific current/voltage rating within the 5SHY lineup, and it is not interchangeable with other 5SHY variants (e.g., 5SHY3545L0014, 5SHY35L4520) without verifying gate unit compatibility, clamping force, and cooling requirements. The GVC736BE101 gate unit is designed for specific IGCT types within the 5SHY/5SNA families — the gate unit code must match the power module revision.

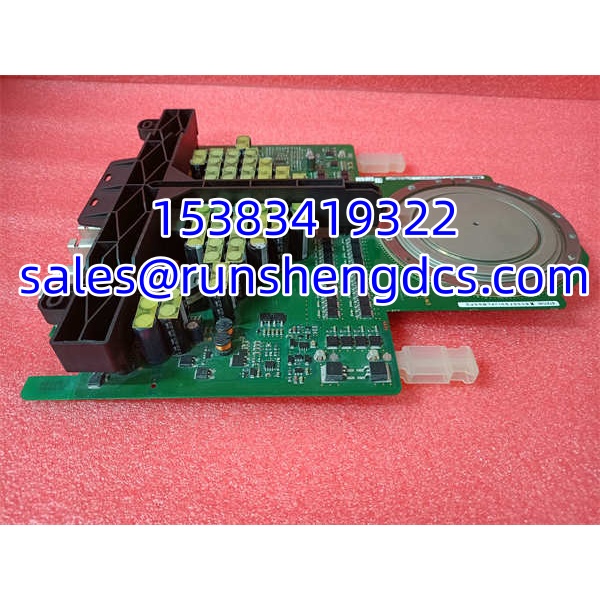

ABB 5SHY5055L0002 3BHE019719R0101 GVC736BE101

QA/QC Transparency SOP

Every 5SHY5055L0002 + GVC736BE101 assembly goes through a structured pre-shipment check:

1. Intake & Origin Verification — Confirm power module marking 5SHY5055L0002 and gate unit marking 3BHE019719R0101 / GVC736BE101. Inspect for physical damage, press-pack surface integrity, fiber connector condition, and label authenticity.
2. Visual & Connector Inspection — Check the IGCT press-pack contact surfaces for pitting or corrosion. Verify fiber-optic connectors are clean and undamaged. Inspect the gate unit PCB for burnt components or capacitor swelling.
3. Gate Unit Bench Test — Apply 24 V DC to the gate unit supply connector (X1). Verify start-up sequence completes within ~3 seconds. Check fiber-optic output pulses with an oscilloscope or fiber receiver. Verify no fault LEDs are active.
4. Insulation & Continuity Tests — Measure insulation resistance between gate unit housing and power terminals. Verify gate supply input continuity and check for short circuits on the gate output.
5. Final QC & Anti-Static Packaging — Document test results, photograph labels and connectors, then pack in anti-static material with protective caps on fiber connectors and press-pack surfaces.

Field Engineer Gotchas

Power module and gate unit are a matched pair.
The 5SHY5055L0002 is the IGCT; the GVC736BE101 is the gate unit. You cannot substitute a GVC736CE101 or GVC750BE101 gate unit without verifying compatibility with the specific 5SHY revision. The gate drive timing, current levels, and protection thresholds are tuned to the IGCT type.

Gate supply voltage dip at start-up is critical.
The IGCT gate unit draws a high peak current during start-up (~3 seconds). The supply voltage VGIN at connector X1 may dip below 28 V momentarily. If the dip exceeds the mask requirement in the ABB datasheet, the IGCT can be damaged or malfunction. Measure VGIN directly at X1 with a scope using a low-pass filter (≥1.5 kHz -3 dB).

Parasitic displacement currents can trip the gate unit.
Insulated power supplies have parasitic capacitance between input and output, which produces common-mode displacement currents during voltage jumps. The gate unit is robust but not immune. Mitigation: minimize power supply parasitic capacitance, feed the supply line through a ferrite core, or use transformers with shielded windings. The gate unit supply connector has a pin directly connected to the housing (cathode) for bypassing displacement current.

Press-pack clamping force matters.
IGCT modules use a pressure-contact (press-pack) mechanical interface. Incorrect clamping force leads to thermal runaway or contact failure. If you are replacing the IGCT in the field, verify the stack clamping procedure and torque specifications with the ABB hardware manual. Do not overtighten.

Fiber-optic trigger links are fragile.
The gate unit communicates with the controller via fiber-optic cables. Contaminated or bent fibers cause intermittent triggering failures that look like gate unit faults. Always inspect and clean fiber connectors before concluding the gate unit is bad.

Surplus market listings conflate part numbers.
Some sellers list 5SHY5055L0002 as a generic “thyristor module” or “servo drive.” It is neither. It is an IGCT power module for medium-voltage power conversion. Always verify the physical label matches 5SHY5055L0002 and 3BHE019719R0101 / before purchasing.

ABB 5SHY5055L0002 3BHE019719R0101 GVC736BE101

Application Scenarios

Medium-voltage variable-speed drives.
The 5SHY5055L0002 is commonly deployed in ABB ACS1000-class and similar MV drives for oil & gas, mining, cement, and water treatment applications. When a single IGCT in a multi-level converter leg fails, the entire drive trips. Replacing the matched IGCT + gate unit assembly restores operation without a full stack rebuild.

SVC and STATCOM systems.
Static VAR compensators use series-connected thyristor/IGCT valves for reactive power control. The 5SHY family is well-suited for these applications due to low conduction loss and fast switching. Gate unit reliability is critical — a missed trigger pulse can cause unequal voltage distribution across series devices.

Marine propulsion and large test benches.
High-power marine drives and motor test facilities use IGCT-based converters for their robustness under harsh electrical conditions. The press-pack construction and gate unit isolation make the 5SHY series suitable for these demanding environments.

Legacy converter maintenance.
Facilities running ABB IGCT-based converters that are no longer in active production need replacement modules from surplus channels. The 5SHY5055L0002 with gate unit is a direct replacement for failed assemblies in existing installations.

Case note: A cement plant reported that a replacement gate unit tripped repeatedly after installation on a 5SHY-series IGCT stack. The gate unit tested fine on the bench. The root cause was a contaminated fiber-optic connector — the trigger pulses were attenuated below the IGCT’s minimum gate current threshold. Cleaning the fiber connector and verifying optical power levels resolved the issue. The gate unit was not faulty; the fiber link was.

FAQ

Is 5SHY5055L0002 the same as 3BHE019719R0101?
No. 5SHY5055L0002 is the IGCT power module. 3BHE019719R0101 () is the gate drive unit that mounts to the IGCT. They are two separate components that work together as an assembly.

Not without verification. The and GVC736CE101 are different gate unit revisions designed for different IGCT types or current classes. Check the ABB hardware manual for your specific converter to confirm compatibility.

What is the gate supply voltage?
The gate unit requires a regulated 24 V DC supply. Measure at connector X1 directly on the gate unit. During start-up (~3 seconds), the voltage may dip — ensure the power supply can handle the peak current without dropping below the minimum threshold specified in the datasheet.

Does this module include the IGCT and gate unit together?
That depends on the seller. Some listings include both the 5SHY5055L0002 IGCT and the gate unit as an assembly; others sell them separately. Always confirm what is included before purchasing.

Is the 5SHY5055L0002 still available new from ABB?
Availability varies by region and product lifecycle status. The 5SHY family remains in use in many installed MV drive and SVC systems, but specific variants may only be available through surplus or refurbished channels. Verify current availability with ABB or an authorized distributor.

What are common failure symptoms?
IGCT failure: converter leg trip, DC link overcurrent, asymmetric phase currents. Gate unit failure: no fiber output, gate supply fault LED, IGCT fails to trigger. Always test the gate unit on the bench before installing it on a live stack.

Can I test the gate unit without the IGCT installed?
Yes. Apply 24 V DC to connector X1 and verify the start-up sequence completes (~3 seconds). Check fiber-optic output with a receiver or oscilloscope. Verify no fault LEDs are active. Do not apply high voltage to the IGCT terminals during bench testing.
