Description
Key Technical Specifications
- Material Code: 3BHB021400R0002
- Semiconductor Technology: IGCT (Insulated Gate Composite Thyristor)
- Working Voltage: 650 V
- Output Current Rating: 2645 A
- Cooling Method: Wind or Liquid Cooled (Flexible selection)
- Operating Temperature: -40 °C to +85 °C
- Protection Features: Over-current, Over-voltage, Over-temperature
- Communication Interface: RS-485 / Modbus RTU
- Typical Applications: HVDC, Wind Turbines, Traction Converters
- Form Factor: Compact Modular Enclosure
Product Introduction
Power conversion at this level isn’t about standard switching; it’s about managing massive energy flows without melting the hardware. The ABB 5SHY4045L0004 (3BHB021400R0002) is a high-power IGCT module engineered specifically for heavy-duty electrical systems. It combines the high-current carrying capacity of a traditional thyristor with the rapid switching speeds of a MOSFET, making it the primary switching element in high-voltage direct current (HVDC) transmission and large industrial motor drives.
Why do engineers rely on this specific IGCT? Thermal stability and switching efficiency. Rated to handle up to 2645 A and operating safely across a brutal -40 °C to +85 °C temperature range, it is built for harsh industrial environments. Whether it is regulating reactive power in a FACTS device or converting wind turbine power for grid synchronization, this module minimizes switching losses while providing built-in protection against over-current and over-temperature faults.
Troubleshooting Quick Reference
- Module Over-Temperature Fault | Cooling failure or thermal paste degradation | 80% chance it’s cooling system | Check liquid coolant flow rate or fan RPM | Clean heatsink fins and reapply thermal compound
- Gate Drive Communication Error | RS-485 wiring fault or EMI noise | 60% chance it’s signal integrity | Measure RS-485 termination resistance | Shield gate drive cables away from high-power busbars
- Unexpected Over-Current Trip | Snubber circuit failure or load short | 50% chance it’s external load | Inspect snubber capacitors for bulging | Megger test the load side for ground faults
- Complete Switching Failure | Blown internal gate fuse or driver board | 40% chance it’s gate drive circuit | Check gate drive supply voltage | Replace the IGCT module if gate drive tests pass

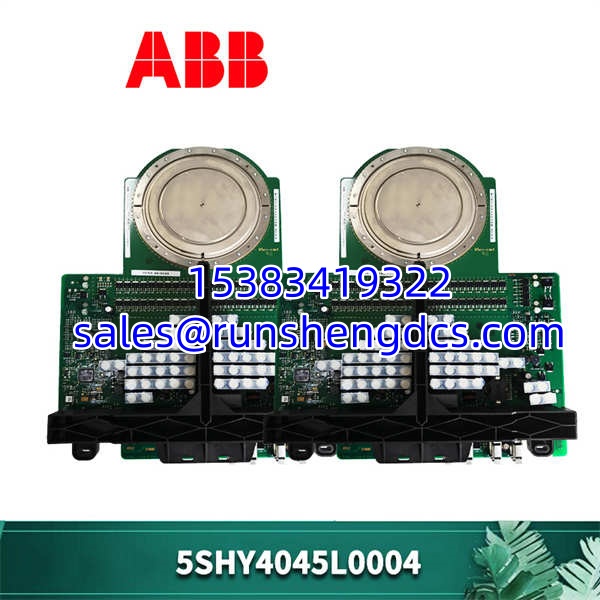

ABB-5SHY4045L0004
Application Scenarios & Pain Points
- High-Voltage Direct Current (HVDC): Transmitting power over long distances requires flawless commutation; a single IGCT failure can cause a complete converter station blackout.
- Wind Power Inverters: Grid-tied wind turbines demand precise reactive power control to meet strict utility interconnection standards during voltage sags.
- Electric Traction Systems: Train propulsion converters face constant vibration and thermal cycling, requiring modules that won’t fatigue mechanically or electrically.
Compatible Replacement Models
- ✅ Drop-in Replacement: 5SHY4045L0004 3BHB021400R0002 — Exact match. Verify cooling method (air vs. liquid) before ordering. No gate drive tuning needed.
- ⚠️ Software Compatible: 5SHY3545L0014 3BHE023784R0001 — Same IGCT family but different current rating. Requires gate drive parameter adjustment and thermal limit reconfiguration. Budget 4-6 hours for commissioning.
- ❌ Hardware Incompatible: 5SHY6545L0001 AC10272001R0101 — Different voltage class and physical footprint. Do NOT attempt to swap. Requires new heatsink and gate drive recalibration.
