ABB 5SHY4045L0001 | IGCT Power Semiconductor, 3BHB018162R0001

Description

Key Technical Specifications

Product Introduction

An IGCT failure inside a medium-voltage converter stack does not always look like a dead semiconductor. It can show up as repeated desaturation trips, fiber-optic trigger faults, or uneven current sharing until someone pulls the stack and checks both the disc device and the gate unit. The 5SHY4045L0001 sits at the heart of that problem.

It is an ABB 5SHY-series IGCT, a press-pack power switch that combines low conduction loss with hard gate-drive turn-off. The associated 3BHE009681R0101 / GVC750BE101 designation refers to the gate unit assembly that drives and monitors the IGCT. Together they form the switching stage in MV converters where IGBTs become expensive to series-connect and GTOs are too slow. The 4500 V class and press-pack construction make this a serious power-stage component, not a PLC card or small driver module.

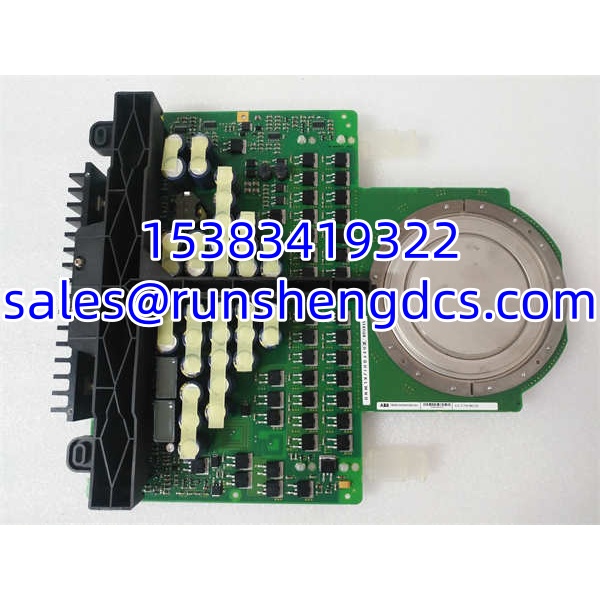

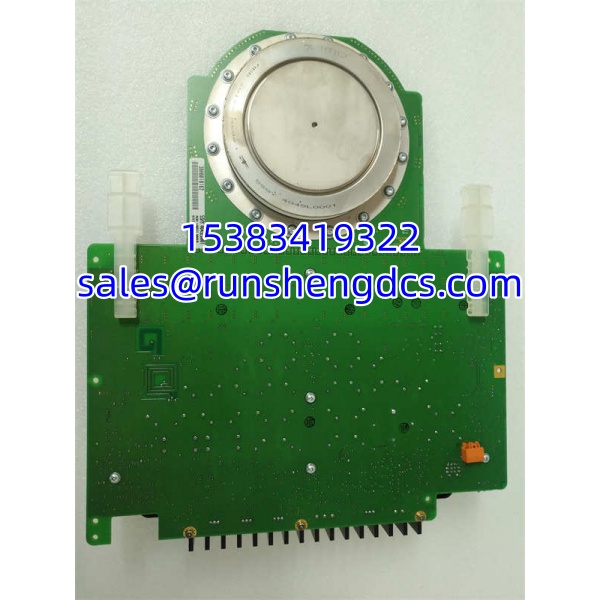

ABB 5SHY4045L0001 3BHB018162R0001 3BHE009681R0101 GVC750BE101

QA/QC Transparency SOP

1. Intake & Origin Verification: Confirm IGCT marking 5SHY4045L0001 and order code 3BHB018162R0001. Verify the gate unit reads 3BHE009681R0101 / GVC750BE101. Check for cracked ceramic, contact erosion, burnt gate terminals, or fiber-optic port damage.
2. Visual & Mechanical Inspection: Inspect disc flatness, surface finish, and edge integrity. Press-pack devices depend on uniform clamping; even small surface damage can create hot spots under load.
3. Electrical Parameter Tests: Measure anode-cathode forward voltage drop, reverse blocking leakage, and gate-cathode resistance. Check fiber-optic transmit/receive paths on the gate unit. Do not apply full MV voltage without OEM test procedures.
4. Gate Unit Functional Check: Power the GVC750BE101 gate unit with rated auxiliary supply. Verify trigger pulse output, fault feedback signals, and fiber-optic communication with the controller. Record any firmware or hardware revision labels.
5. Final QC & Anti-Static Packaging: Protect both disc faces with non-abrasive covers. Bag the IGCT and gate unit separately in ESD packaging. Photograph all markings and include test readings. No internal gate-unit calibration is performed without OEM guidance.

Field Engineer Gotchas

• Mixing up the IGCT and the gate unit. 5SHY4045L0001 / 3BHB018162R0001 is the press-pack IGCT. 3BHE009681R0101 / GVC750BE101 is the gate unit assembly. Ordering the wrong one means the stack stays down. Verify which component actually failed.
• Wrong voltage class from third-party listings. Some sellers describe as a 600–1200 V SCR module. That does not match the 4500 V-class IGCT family. Treat those listings as unverified.
• Clamping force errors. Too little force causes thermal cycling failure; too much can crack the ceramic. Follow the OEM clamping force specification for the specific stack assembly.
• Fiber-optic contamination. Dust or oil on the fiber tip increases attenuation and can cause intermittent trigger faults. Clean with proper fiber tools, not shop air.
• Gate unit revision mismatch. The must match the converter OEM configuration. A different gate unit revision may change trigger timing, fault thresholds, or connector pinout.

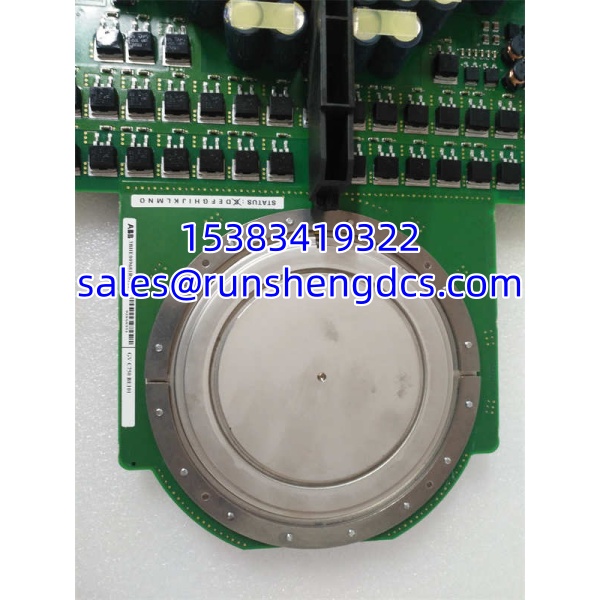

ABB 5SHY4045L0001 3BHB018162R0001 3BHE009681R0101 GVC750BE101

Application Scenarios

• MV drive phase fault: A medium-voltage drive trips repeatedly on one phase. The IGBTs are not present — this is an IGCT stack. One 5SHY4045L0001 shows elevated leakage, and the gate unit reports intermittent trigger loss. Replacing both the IGCT and verifying the gate unit clears the fault.
• SVC/STATCOM refurbishment: During a planned outage, aged IGCTs and gate units are replaced. The replacement 5SHY4045L0001 units must match the original voltage class, and the gate units must match the fiber-optic interface and fault logic.
• Excitation converter maintenance: A generator excitation system shows uneven bridge arm current. One IGCT gate unit has degraded trigger output. Swapping the and retesting fiber attenuation restores balanced firing.
• HVDC or large rectifier overhaul: A converter stack shows thermal cycling damage on one press-pack device. The IGCT disc surface has micro-cracks from uneven clamping. Replacing the IGCT and re-torquing the stack per OEM procedure restores reliability.

FAQ

Is 5SHY4045L0001 an IGBT module?
No. It is an IGCT press-pack semiconductor. IGCTs combine thyristor-like conduction with transistor-like turn-off through hard gate drive.

What is the difference between 5SHY4045L0001 and 3BHE009681R0101?
5SHY4045L0001 / 3BHB018162R0001 is the IGCT power device. 3BHE009681R0101 / is the gate unit assembly that drives it. They are complementary, not interchangeable.

Can I substitute another 5SHY part number?
Only if voltage class, current rating, mechanical dimensions, gate interface, and OEM approval match. Press-pack IGCTs are not generic drop-in parts.

Does the IGCT need a separate gate driver?
Yes. The IGCT requires a compatible gate unit such as . The gate unit provides isolated trigger power, fiber-optic interface, and fault monitoring.

Is this part still produced by ABB?
Availability depends on current ABB semiconductor product status. In the field, it is commonly encountered as surplus or legacy spare stock.

How do I verify authenticity?
Check the disc marking, order code 3BHB018162R0001, gate unit code 3BHE009681R0101, surface finish, and electrical test results. Cross-reference with the ABB datasheet and the converter OEM spare parts list.
