ABB 5SHY3545L0016 | IGCT Power Module + GVC736BE101 Gate Unit, 3BHB020720R0002

Description

Key Technical Specifications

Product Introduction

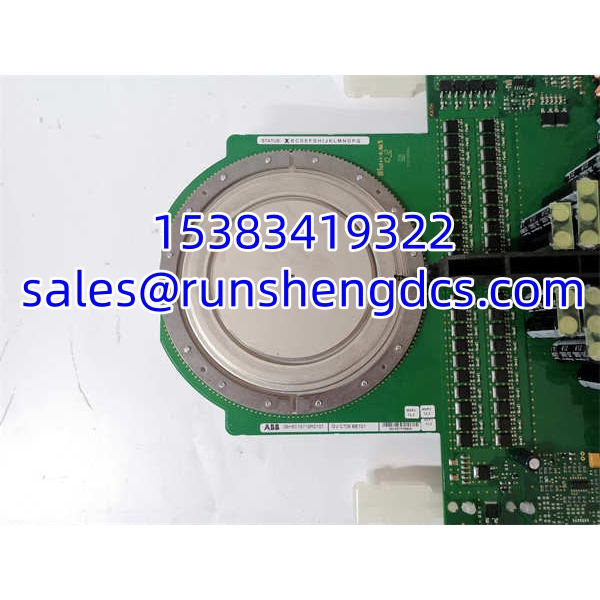

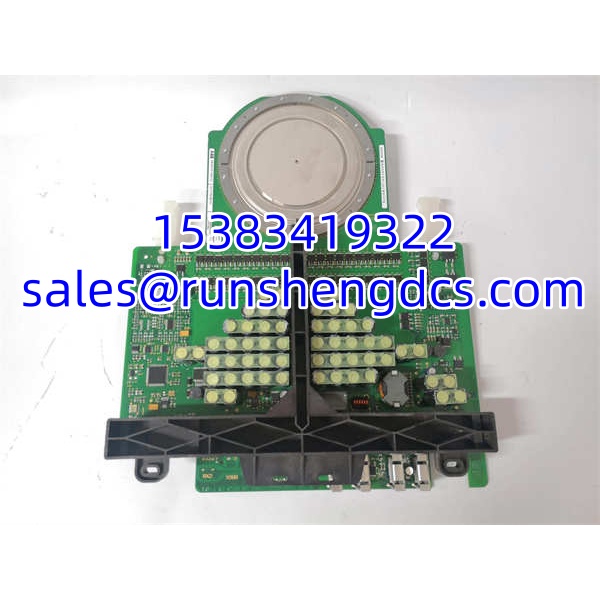

Replacing a failed IGCT module in a MW-class converter is not a simple board swap — it is a power-semiconductor event that involves gate timing, cooling, fiber optics, and busbar torque. The 5SHY3545L0016 is an ABB IGCT power device, and it is normally supplied with a dedicated gate unit identified as 3BHB020720R0002 / 3BHE019719R0101 / GVC736BE101. The IGCT handles the high-power switching, while the gate unit provides the turn-on pulse, the hard turn-off current, fault monitoring, and fiber-optic communication with the converter controller.

This assembly is typically used in high-power industrial converters such as ABB ACS 6000 drives, static var compensators, traction inverters, and large synchronous motor drives. The gate unit receives PWM or switching commands over fiber optics, drives the IGCT gate with tightly controlled pulse amplitude and dI/dt, and reports faults such as overcurrent, gate-supply loss, or overtemperature back to the controller. Because the gate electronics are integrated closely with the IGCT package, the assembly must be treated as a matched pair — the gate unit revision must correspond to the IGCT type and the converter’s valve controller.

ABB 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

QA/QC Transparency SOP

1. Intake & Origin Verification
   Confirm all four identifiers: 5SHY3545L0016, 3BHB020720R0002, 3BHE019719R0101, and GVC736BE101. Photograph the IGCT nameplate, gate-unit labels, fiber-optic connectors, and mechanical mounting surfaces.
2. Visual & Mechanical Inspection
   Inspect the IGCT housing for cracks, coolant leaks, corrosion, or damaged gate contacts. Check the gate-unit PCB for swollen capacitors, burnt components, or damaged fiber-optic ports. Verify busbar contact surfaces are clean and undamaged.
3. Gate-Unit Power-Up Test
   Apply the specified 24 VDC auxiliary supply to the gate unit. Verify normal LED status, supply rails, and absence of fault codes. Do not apply main voltage at this stage.
4. Fiber-Optic & Fault-Feedback Test
   Connect a compatible fiber-optic test source or valve controller simulator. Verify command reception, gate-pulse generation, and fault feedback transmission. Confirm that simulated overcurrent/overtemperature faults are reported correctly.
5. Final QC & Packaging
   Record gate-unit revision, firmware/parameter set if readable, and test results. Protect fiber-optic connectors with dust caps. Pack the IGCT and gate unit separately if required, with anti-static and mechanical protection.

Field Engineer Gotchas

• Four codes, one assembly
  Risk: Treating 5SHY3545L0016, 3BHB020720R0002, 3BHE019719R0101, and GVC736BE101 as four interchangeable spare parts.
  Solution: 5SHY3545L0016 is the IGCT device; 3BHB020720R0002 / 3BHE019719R0101 / GVC736BE101 refer to the gate unit/gate-unit assembly. Order the correct matched set.
  Warning: Installing a gate unit from a different IGCT family can cause incorrect gate timing, failed turn-off, or device destruction.
• Gate-unit revision mismatch
  Risk: Substituting GVC736BE101 with GVC736CE101, GVC750BE101, or another revision without OEM approval.
  Solution: Match the gate-unit revision to the original nameplate and the converter’s valve controller documentation.
  Warning: Different GVC revisions may have different pulse shapes, protection thresholds, or fiber-optic protocols.
• Fiber-optic contamination
  Risk: Dust or oil on fiber-optic connectors causes intermittent command loss, leading to missed turn-off pulses.
  Solution: Inspect and clean fiber connectors with proper tools. Verify optical power levels if test equipment is available.
  Warning: An intermittent fiber link can look like a random converter trip. Do not replace the IGCT before ruling out fiber-optic faults.
• Cooling interface failure
  Risk: IGCT modules depend on proper thermal contact and coolant flow. Poor mounting or degraded thermal paste causes hotspot failure.
  Solution: Verify heatsink flatness, torque sequence, coolant flow, and temperature sensors before energizing.
  Warning: An IGCT can survive a gate test but fail under load if the thermal interface is marginal.
• Auxiliary 24 VDC supply quality
  Risk: Noisy or unstable gate-unit supply causes false faults or missed gate pulses.
  Solution: Measure the 24 VDC supply under load. Check for ripple, ground loops, and isolation integrity.
  Warning: Gate-unit faults after replacement are often power-supply issues, not semiconductor failures.

ABB 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

Application Scenarios

• ACS 6000 drive IGCT replacement
  During a maintenance outage, a failed IGCT in an ABB ACS 6000 converter is replaced. The gate unit revision is verified, fiber-optic links are cleaned, and the gate supply is checked before returning to service.
• SVC/STATCOM valve maintenance
  A static var compensator reports repeated valve faults. Investigation identifies a degraded gate-unit optical receiver. The matched 5SHY3545L0016 + assembly is replaced after confirming controller compatibility.
• Large motor drive commissioning support
  A mill drive commissioning team verifies gate-unit fault feedback, turn-on/turn-off timing, and cooling performance before full-load testing. The gate parameters are compared against the OEM configuration backup.
• Legacy converter spare provisioning
  A plant running an older ABB IGCT-based converter stocks a verified spare assembly. The gate-unit firmware, revision, and mechanical interface are documented to avoid mismatch during emergency replacement.

FAQ

What do these four part numbers mean?
5SHY3545L0016 is the IGCT power device. 3BHB020720R0002, 3BHE019719R0101, and identify the gate unit/gate-unit assembly that drives the IGCT and communicates with the converter controller.

Is this a PLC or DCS module?
No. This is a high-power IGCT semiconductor assembly with a gate unit, used in converters and drives. It is not a PLC/DCS I/O card, even though some surplus listings group it with control-system spares.

Can I substitute a different GVC gate unit?
Not without OEM confirmation. , GVC736CE101, GVC750BE101, and other revisions are not automatically interchangeable. Match the gate-unit revision to the IGCT type and the valve controller.

What cooling is required?
ABB IGCT assemblies typically require water cooling or a specified forced-air heatsink. The exact cooling plate, flow rate, and torque values must be taken from the ABB datasheet or installation manual.

How do I verify the gate unit is working?
Apply the correct 24 VDC auxiliary supply, check LED/status indicators, verify fiber-optic command reception, and confirm fault feedback. Do not apply main voltage until the gate unit, cooling, and controller interface are verified.

Is this still supported by ABB?
Many ABB IGCT assemblies are legacy products. Availability is mainly through surplus and refurbished channels. Confirm current OEM support, firmware, and spare-part availability directly with ABB or an authorized service provider.
