Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Primary Model | 5SHX2645L0004 |
| Product Type | IGCT RC (Integrated Gate-Commutated Thyristor, reverse-conducting) |
| Associated Reference | 3BHL000389P0104 |
| Typical Voltage Class | ~4500 V-class (VDRM); confirm exact VDRM/VRSM on unit label |
| Typical Current Rating | Nominal ~1850 A; peak turn-off up to ~3700 A |
| Silicon Wafer Size | 91 mm |
| Packaging | Press-fit / disc-type high-power semiconductor package with integrated gate driver |
| Cooling | Typically water-cooled or forced-air in medium-voltage converter cabinets |
| Typical Application | ACS 6000 / ACS 5000 / industrial medium-voltage frequency converters, rolling mills, large drives |
Product Introduction
Medium-voltage drives do not fail halfway. When an IGCT module in an ACS 6000 or ACS 5000 converter cabinet goes bad, the entire drive section stops — and nobody wants to re-commission a multi-megawatt inverter from scratch. The ABB 5SHX2645L0004 is the kind of part that sits inside a press-fit power stack and handles the heavy switching current. It is not a PLC card, not a DCS module, and not a low-voltage I/O board. It is a high-power IGCT RC device, with 3BHL000389P0104 appearing as the associated reference for this IGCT assembly.
The hard part with ABB IGCT modules is variant control. 5SHX2645L0004, 5SHX1445H0001, 5SHX1960L0004, and other 5SHX devices may look similar but can differ in voltage class, current rating, driver board revision, and compatible converter firmware. Treat it as a like-for-like replacement only after matching the exact IGCT part number, driver board number, and converter cabinet model.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm the IGCT label reads “5SHX2645L0004” and the associated reference reads “3BHL000389P0104.” Inspect the press-fit housing, anode/cathode surfaces, gate connector, and integrated driver unit for corrosion, cracking, or thermal damage.
- Visual & Mechanical Inspection — Check for discoloration, gate pin damage, coolant leaks (if water-cooled), and driver board component burn marks. Verify the IGCT has not been previously re-pressed with improper torque.
- Electrical Parameter Tests — Use appropriate high-voltage semiconductor test equipment to check gate-cathode resistance, anode-cathode insulation, and driver unit output integrity. Do not apply full DC bus voltage during bench testing.
- Driver Unit Verification — Confirm the integrated gate driver powers up, reports no fault codes, and communicates correctly with the converter controller if testable.
- Final QC & Anti-Static Packaging — Seal the IGCT assembly in ESD-safe packaging with model numbers, serial/asset tags, revision codes, test status, and date. Include a test report when live testing is performed.
Field Engineer Gotchas
- 5SHX variant mismatch is not a guaranteed swap. 5SHX2645L0004, 5SHX1445H0001, and 5SHX1960L0004 can differ in voltage class, current rating, and driver compatibility. Solution: match the exact removed IGCT part number. I have seen teams order a different 5SHX variant because the physical package looked similar, only to find the driver characteristics did not match.
- 3BHL000389P0104 is the associated reference, not a standalone controller. This reference appears alongside 5SHX2645L0004 in surplus listings and denotes the IGCT RC assembly reference. Do not treat it as a separate module.
- Integrated gate driver dependency. The 5SHX2645L0004 has an integrated gate driver unit. A mismatched or damaged driver can cause gate timing errors, false overcurrent trips, or catastrophic IGCT failure. Solution: photograph both the IGCT label and the driver unit label before removal.
- Press-fit installation torque. IGCT modules require specific mounting torque and thermal interface preparation. Incorrect installation causes hot spots and early failure. Solution: follow the ABB converter maintenance manual for press-fit torque and thermal paste specification.
- Cooling system dependency. If the IGCT is water-cooled, verify coolant flow, conductivity, and leak integrity before re-energizing. A dry-run after replacement can destroy the new module within minutes.
- Series-stacked topology awareness. The 5SHX2645L0004 is often used in series-stacked configurations in medium-voltage converters. Replacing only one device in a string without checking the health of adjacent devices can lead to uneven voltage sharing and early failure.

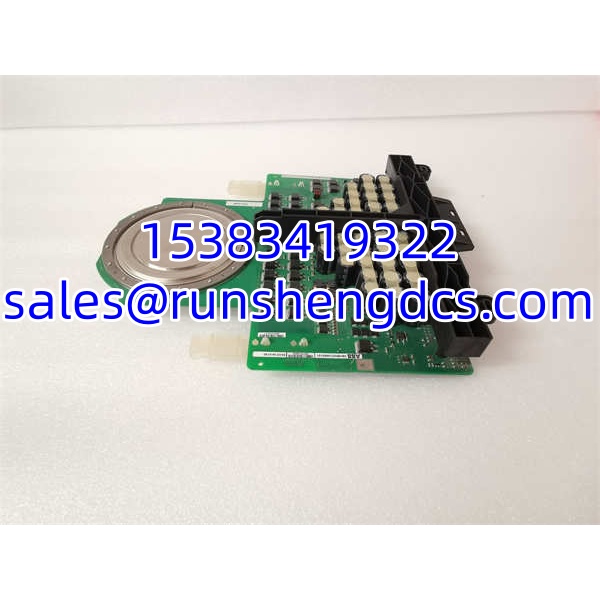

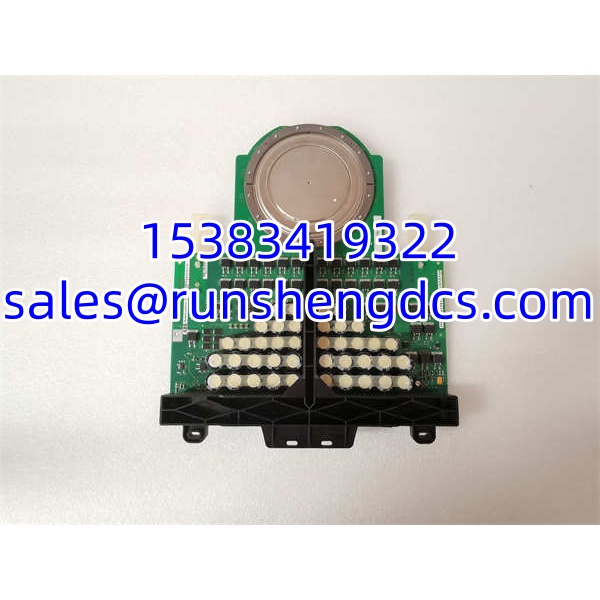

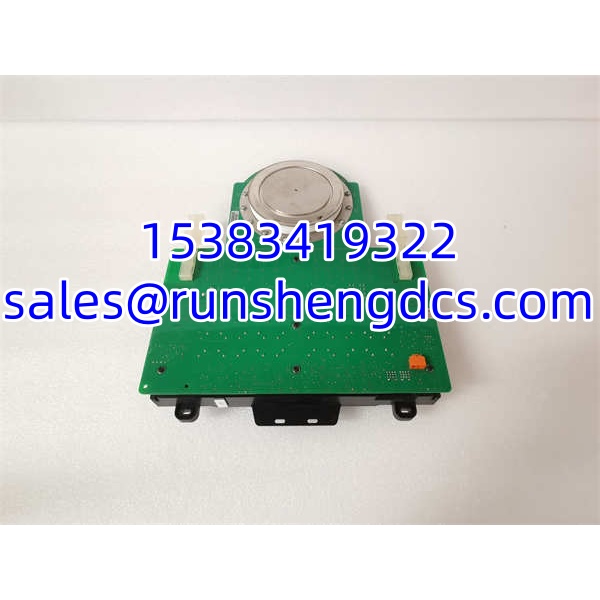

ABB 5SHX2645L0004 3BHL000389P0104
Application Scenarios
- ACS 6000 / ACS 5000 medium-voltage industrial drives. Rolling mills, mining hoists, and large fan/pump drives use 5SHX-series IGCTs in their inverter stacks.
- Legacy converter maintenance. Plants running older ABB medium-voltage converters keep IGCT modules in stock because lead times for replacements can be long.
- Power conversion systems. Large rectifiers, inverters, and industrial power supplies rely on IGCT modules for high-current switching at medium voltage.
- Migration holdover. During upgrades to newer ACS 8000 or ACS 8800 platforms, teams keep legacy IGCT spares to avoid extended downtime.
FAQ
What is the 5SHX2645L0004?
It is an ABB high-power IGCT RC (Integrated Gate-Commutated Thyristor, reverse-conducting) module used in medium-voltage industrial converters and drives.
What does 3BHL000389P0104 refer to?
This is the associated reference for the 5SHX2645L0004 IGCT RC assembly. It appears alongside the primary model number in ABB documentation and surplus listings.
What voltage and current ratings does it have?
The 5SHX2645L0004 is a ~4500 V-class IGCT with a nominal current around 1850 A and peak turn-off current up to ~3700 A, using a 91 mm silicon wafer. Confirm exact ratings on the unit label before installation.
Can I substitute a different 5SHX variant?
Not without verification. Different 5SHX variants may have different voltage ratings, current ratings, and driver board requirements. Confirm the exact part number and driver compatibility before ordering.
What converters use this IGCT?
The 5SHX2645L0004 is typically found in ABB ACS 6000 / ACS 5000-class and other medium-voltage industrial converters. Confirm the exact converter model and cabinet serial number before sourcing a replacement.
Is this still in production?
It is a legacy high-power IGCT module. Available stock is typically surplus, refurbished, or new-old-stock. Verify condition, revision, and driver compatibility before purchase.
What is the warranty on surplus IGCT modules?
A 1-year warranty is typical for verified surplus stock, covering manufacturing defects and DOA failures. Damage from incorrect installation, driver mismatch, cooling system failure, or overvoltage events is not covered.
