Description
Key Technical Specifications
- Product Type: Communication Interface Module (Bus Administrator)
- Protocol: Advant Fieldbus 100 (AF100)
- Media: Twisted Pair (Dual Redundant)
- Max Cable Diff: 4 meters between redundant cables
- Operating Temp: 0°C to +70°C
- Humidity: 5% to 95% non-condensing
- Supply Voltage: 24V DC
- Dimensions: 273mm x 40mm (H x W)
- Weight: 1.21 kg
- Certifications: EU, CE
Product Introduction
AF100 networks don’t just stop; they lose synchronization and flood the bus with error frames. The ABB 3BSE008799R1 CI627 is the Bus Administrator that keeps the dual-redundant twisted pair network from collapsing into chaos. It handles token passing, redundancy switching, and node synchronization for the entire AF100 segment.
Bottom line — this module is the traffic cop for your legacy ABB DCS. The ABB 3BSE008799R1 CI627 supports full redundant media (PR:G to PR:J) and reduced redundancy (PR:B to PR:F), but it demands precise cable length matching. If your redundant pairs differ by more than 4 meters, expect intermittent bus faults. You aren’t upgrading; you’re keeping a 20-year-old network alive. Verify the Bus Administrator role assignment before swapping.
ABB 3BSE008799R1 CI627
QA/QC Transparency SOP
- Intake & Origin Verification: We trace the ABB 3BSE008799R1 CI627 to original ABB production batches to confirm it’s not a field-pulled unit with hidden corrosion.
- Live Functional Testing: Installed on an AF100 test rack, verifying Bus Administrator token passing, redundancy switchover, and node synchronization.
- Electrical Parameter Tests: Fluke multimeter checks on 24V DC input regulation and twisted pair termination impedance.
- Firmware/Config Verification: Readout of Bus Administrator configuration registers to confirm redundant media settings and node address.
- Final QC & Anti-Static Packaging: Shipped in ESD-safe bag with printed test certificate and AF100 configuration backup.
Field Engineer Gotchas
- Bus Administrator Role Conflict: Only one node should be Bus Administrator at a time. If you install a ABB 3BSE008799R1 CI627 without disabling the BA role on the old unit, you’ll get dual-master bus contention. Always verify BA assignment in the Advant Controller configuration before powering up.
- Redundant Cable Length Mismatch: AF100 redundancy requires the two twisted pairs to be within 4 meters of each other. I’ve seen a tech run one pair through a cable tray and the other through a conduit, creating a 12-meter difference. Result: constant redundancy switchover and bus errors. Measure before you pull cable.
- Termination Resistor Missing: requires termination at both ends of the bus. If you replace a ABB 3BSE008799R1 CI627 at a mid-point node and forget the termination, you’ll get signal reflections that manifest as random node dropouts. Always verify termination at the physical ends.
- 24V DC Ground Loops: The CI627 is sensitive to ground potential differences. If your 24V DC supply shares a ground with VFDs or motor drives, you’ll see communication errors. Use isolated 24V DC supplies for nodes. I’ve seen three modules fail in six months because someone tied the bus ground to a motor frame.

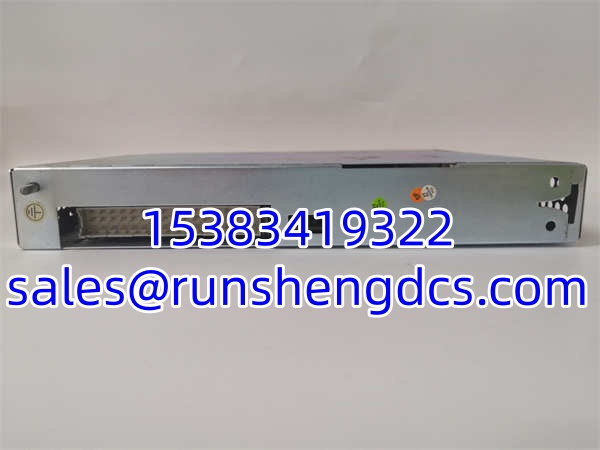

ABB 3BSE008799R1 CI627
Application Scenarios
- Legacy Power Plant DCS: Coal and gas plants running Advant Controller 110/160 systems use the to maintain bus integrity during incremental I/O expansions.
- Pulp & Paper Mills: Mills with 20-year-old ABB DCS use it to replace failed Bus Administrators without migrating to 800xA.
- Chemical Batch Processes: Plants running Advant OCS use the to maintain redundant communication for safety-critical batch sequencing.
FAQ
Yes, but you must configure it as a non-BA node in the Advant Controller. The defaults to BA mode on first power-up. If you don’t reconfigure, it’ll try to seize bus master role and cause conflicts.
Is the 3BSE008799R1 compatible with CI627A?
Functionally yes, but verify the revision suffix. The CI627A may have updated firmware for enhanced redundancy. Check your hardware manual for cross-compatibility matrix. Don’t assume interchangeability.
Standard twisted pair: 2000 meters with repeaters. Without repeaters: ~500 meters depending on baud rate. Verify with your installation guide. The doesn’t extend distance; it just manages the segment.
Why is my “CONFIG OK” LED flashing yellow?
Flashing yellow means the is trying to synchronize with an existing Bus Administrator but can’t match the configuration. Check: BA assignment, node address, and redundant media settings. Solid yellow means it’s successfully synced.
Do you have these in stock right now?
Inventory for discontinued ABB parts fluctuates daily. Check the live stock counter or contact us directly. We don’t list phantom inventory.
12 months. If the Bus Administrator fails, redundancy switching stops working, or the module won’t sync under normal conditions, we replace it. No restocking fees on DOA units.
