Description
Key Technical Specifications
- Product Model: 3BSE008508R1 DI810
- Manufacturer: ABB
- Product Type: 16-Channel Digital Input Module
- Input Voltage: 24 V DC Nominal (15-30 V DC Range)
- Channel Configuration: 16 Channels (Arranged as 2 groups of 8)
- Input Current: Approx. 6 mA per channel at 24V
- Isolation: 50 V Rated (Channel to Backplane)
- Compatible Base Units: TU810, TU812, TU814, TU830, TU838
- Dimensions: 45 mm × 119 mm × 102 mm
- Signaling: Current-sinking (NPN compatible)
Product Introduction
Intermittent digital input faults are usually a wiring or grounding issue, but sometimes the module’s internal opto-isolators just give up. The ABB 3BSE008508R1 DI810 is a standard 16-channel digital input module for the S800 I/O family, designed to read 24V DC signals from switches, proximity sensors, and relay contacts. It’s the bread-and-butter I/O card in thousands of System 800xA and AC 800M installations.
This module splits its 16 channels into two isolated groups of eight, which helps segregate noisy field signals from sensitive control wiring. The ABB 3BSE008508R1 DI810 supports voltage supervision on channel 16, allowing the system to detect if the 24V field power is lost. Bottom line — it’s a reliable, high-density input card, but make sure you have the right termination unit (TU) before you order it.
QA/QC Transparency SOP
- Intake & Origin Verification: We inspect the ABB 3BSE008508R1 DI810 for physical damage, checking for bent backplane pins, cracked housing, or burnt components near the input terminals.
- Live Functional Testing: The module is installed in an S800 test rack. We apply 24V DC to each of the 16 channels and verify the LED indicators and System 800xA status match.
- Electrical Parameter Tests: Using a Fluke 87V, we verify the input current draw (~6mA) and check isolation resistance between channel groups and backplane.
- Firmware/Config Verification: We read the module’s electronic nameplate via the ModuleBus to verify the 3BSE008508R1 order code and firmware revision.
- Final QC & Packaging: After a final visual inspection, the unit is sealed in anti-static shielding with desiccant to prevent moisture damage during storage.
Field Engineer Gotchas
Termination Unit Mismatch
- Risk: The DI810 requires a specific TU base (e.g., TU810, TU830). Plugging it into the wrong base or forcing it can bend pins.
- Solution: Verify the exact TU model before ordering. Check the mechanical keying on the base unit.
- War Story: Saw a tech try to force a DI810 into a TU852 base. Bent 4 backplane pins. Always check the compatibility matrix.
Voltage Supervision Wiring
- Risk: If voltage supervision is enabled in the config but channel 16 isn’t wired to 24V, the module will fault.
- Solution: Check the “a” parameter in the control builder. If you don’t need supervision, disable it or wire Ch16 to 24V.
- Blunt Truth: Don’t blame the module for a config error. Verify your logic first.
Sinking vs. Sourcing
- Risk: The is a current-sinking (NPN) module. Wiring a PNP (sourcing) sensor directly will not work.
- Solution: Use an interposing relay or verify your sensor output type.
- Warning: Double-check your field wiring diagram. Sinking/sourcing confusion is the #1 cause of “dead inputs.”

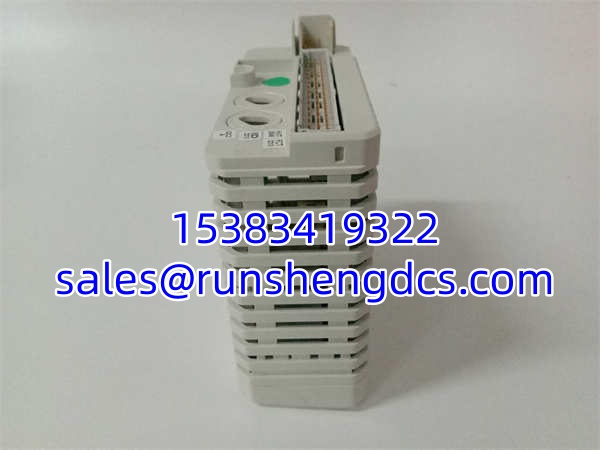

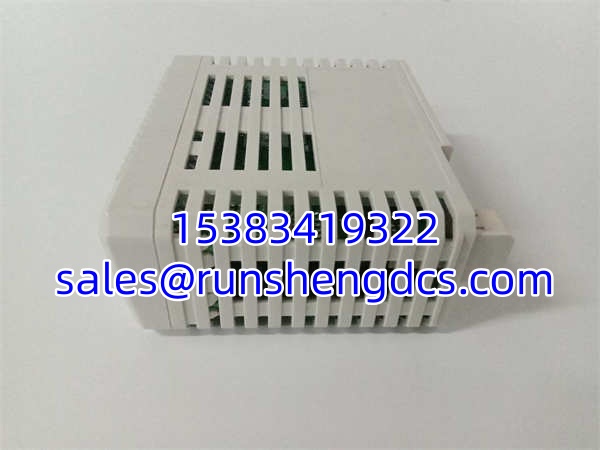

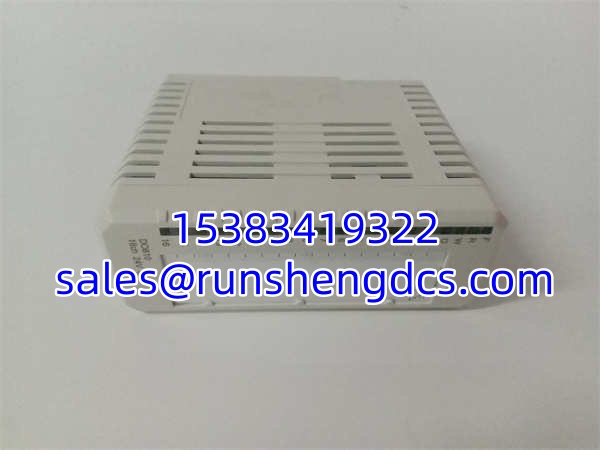

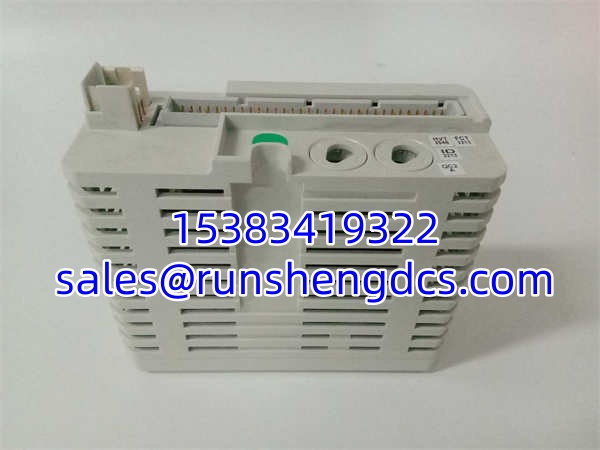

ABB 3BSE008508R1 DI810
Application Scenarios
Power Plant Auxiliary Systems: In coal-fired plants, the ABB 3BSE008508R1 monitors hundreds of limit switches on coal conveyors and ash handling systems. The 2×8 isolation helps separate the noisy motor control center signals from the control room logic.
Oil & Gas ESD Systems: Emergency Shutdown panels rely on the for critical valve position feedback. The module’s fast response time and diagnostic capabilities ensure that safety interlocks trip within milliseconds of a fault condition.
Real-World Case Study: A water treatment plant had a reporting random channel faults. The ops team replaced the module twice. We found the 24V field power supply was dropping to 12V during pump starts. The was working fine; the power supply was undersized. Upgrading the PSU solved the issue.
FAQ
Is the 3BSE008508R1 compatible with AC 800M controllers?
Yes. The is a standard S800 I/O module and works with PM85x, PM86x, and PM89x series AC 800M controllers via the TK802/TK803/TK804 I/O racks.
Can I use this module for 120V AC signals?
No. The is strictly 24V DC. For 120V AC, you need the DI820 (3BSE008512R1) or DI821 (3BSE008550R1). Applying AC to a will destroy it instantly.
Does this module support hot-swapping?
Yes, the supports hot-swapping in supported S800 configurations. However, always verify your system configuration allows it before pulling the module live.
What is the input filter time?
The input filter is configurable via software: 0ms, 1ms, 5ms, 10ms, or 20ms. Use longer filters for noisy mechanical switches to prevent chatter.
Do you provide a test report?
Yes. Every unit ships with a test report confirming channel functionality, LED operation, and isolation tests. We verify all 16 channels work.
Is this module still manufactured?
The is a mature product but still widely available. ABB continues to support it for System 800xA and AC 800M platforms.
What termination units are compatible?
TU810, TU812, TU814, TU830, and TU838. Always verify the specific TU variant matches your field wiring requirements (screw terminals, D-Sub, etc.).
