Description
Key Technical Specifications
- Product Model: ABB 3BHL000390P0104 5SHX1960L0004
- Manufacturer: ABB
- Product Type: Press-Pack IGCT
- Package Type: Press-Pack (Double-Sided Cooling)
- Key Feature: Integrated Gate-Commutated Thyristor
- Application: Medium Voltage Drives, HVDC, SVC
- Cooling Method: Forced Water or Air (Press-Pack Dependent)
- Mounting: Press-Pack Stack / Clamp
- Gate Interface: Integrated Low-Inductance Gate Connection
- Protection: Short-Circuit Tolerant, di/dt Rated
- Replacement For: Legacy GTO Thyristors
Product Introduction

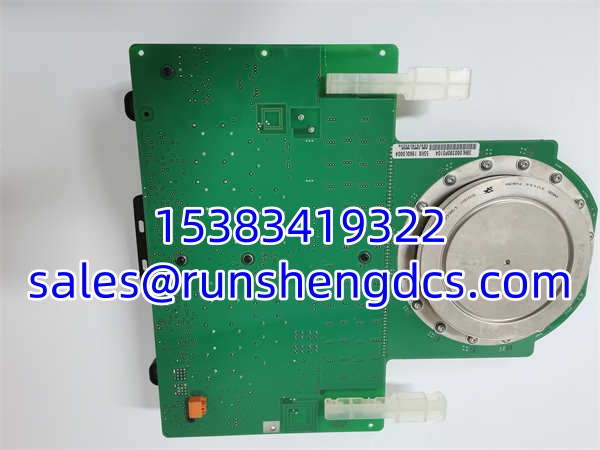

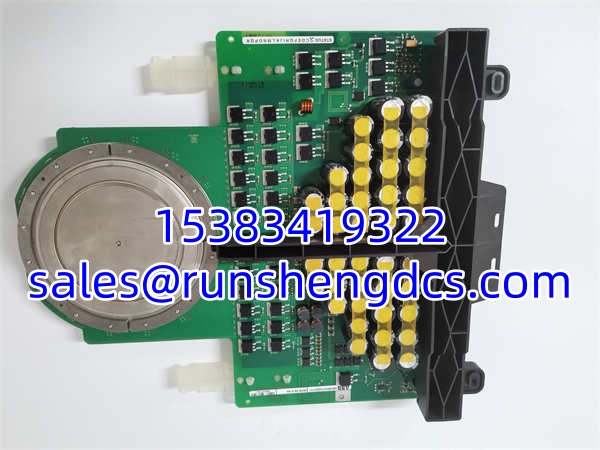

When a multi-megawatt drive trips on “Overcurrent” or “Gate Fault,” the first suspect is usually the massive press-pack device in the stack. The ABB 3BHL000390P0104 5SHX1960L0004 is that device. It’s not a standard thyristor; it’s an IGCT, combining the high-current capability of a GTO with the fast, clean switching of an IGBT. This isn’t just a power switch; it’s the heart of your ACS6000 or HVDC converter, handling thousands of amps with microsecond precision.
Bottom line — it’s a press-pack, not a module. The ABB 3BHL000390P0104 5SHX1960L0004 requires uniform clamping force across its entire surface to prevent hot spots and premature failure. If your stack’s hydraulic or spring pressure is off by even 10%, this device will fail catastrophically, often taking the gate driver and buswork with it. Verify the full 5SHX1960L0004 suffix; ABB has revised the gate ring and cathode geometry, and a mismatched revision can cause gate latch-up or uneven current sharing.
QA/QC Transparency SOP
Press-pack IGCTs are unforgiving. We don’t just test for continuity; we test for mechanical integrity. Every ABB 3BHL000390P0104 5SHX1960L0004 goes through:
- Intake & Origin Verification: We check the date code and inspect the cathode/anode surfaces for pitting, arcing marks, or uneven wear. Even minor surface damage indicates prior stack misalignment or insufficient clamping force.
- Live Functional Testing: Racked in a press-pack test fixture with calibrated clamping force, we verify the gate-cathode resistance and forward voltage drop. Vf must be within ±5% of the datasheet nominal; deviation indicates internal bond wire degradation.
- Electrical Parameter Tests: Using a high-current pulse tester, we verify the di/dt rating and turn-off time. The ABB 3BHL000390P0104 5SHX1960L0004 must commutate cleanly without voltage spikes exceeding the rated Vdrm.
- Gate Interface Verification: We test the integrated gate connection for low inductance and proper signal integrity. A bad gate ring will cause false triggering or failure to turn off.
- Final QC & Anti-Static Packaging: Sealed in ESD-safe bags with desiccant. The cathode/anode surfaces are protected with non-abrasive caps to prevent shipping damage.
Field Engineer Gotchas
- Clamping Force Uniformity: The ABB 3BHL000390P0104 5SHX1960L0004 is a press-pack. If your stack’s clamping bolts are not torqued in the correct star pattern, or if the pressure plates are warped, the device will develop hot spots and fail within hours. I’ve seen techs torque the bolts sequentially and blow up three IGCTs before realizing the pressure plate was bent.
- Gate Wiring Inductance: The integrated gate ring is low-inductance, but your external gate cables aren’t. Keep gate leads short, twisted, and shielded. I’ve seen a 30cm untwisted gate lead cause enough EMI to trigger false turn-on during commutation, destroying the ABB 3BHL000390P0104 5SHX1960L0004 and the gate driver.
- Cooling Surface Prep: The cathode/anode surfaces must be mirror-smooth. Any oxidation, grease, or fingerprint creates a thermal resistance point. Clean with isopropyl alcohol and lint-free wipes only. I’ve seen a tech use compressed air with oil in the line, contaminating the surface and causing a thermal runaway failure.
- Snubber Circuit Check: Before installing a new ABB 3BHL000390P0104 5SHX1960L0004, verify the snubber capacitors and resistors. A failed snubber will cause voltage spikes that exceed the IGCT’s Vdrm rating during turn-off. Measure the snubber capacitance; a 20% drift is enough to cause trouble.

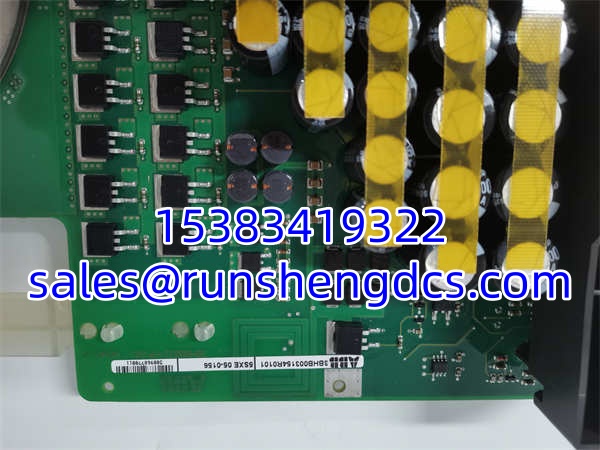

ABB 3BHL000390P0104 5SHX1960L0004
Application Scenarios
- Mining Mill Drives: Where ACS6000 drives run 24/7 in dusty, high-vibration environments, the ABB 3BHL000390P0104 5SHX1960L0004 provides the robust press-pack construction needed to withstand mechanical stress and prevent unplanned mill stops.
- HVDC Converter Stations: In high-voltage DC transmission, the ABB 3BHL000390P0104 5SHX1960L0004’s fast switching and short-circuit tolerance ensure reliable power conversion, even during grid faults.
- Marine Propulsion: In shipboard drives where space is tight and cooling is limited, the ABB 3BHL000390P0104 5SHX1960L0004’s double-sided cooling allows for higher power density in compact stacks.
FAQ
Is this the same as the 5SHX1960L0004 without the 3BHL000390P0104 prefix?
No. The 3BHL000390P0104 is the full ABB ordering code that includes the hardware revision, gate ring version, and testing batch. The ABB 3BHL000390P0104 5SHX1960L0004 is specific to certain ACS6000 builds. Using the wrong revision can cause gate timing issues or insufficient clamping force. Always match the full code.
Can I test this IGCT in the drive without a load?
No. The ABB 3BHL000390P0104 5SHX1960L0004 requires the DC link capacitance and motor load to commutate properly. Testing open-circuit can cause voltage spikes that exceed the Vdrm rating. Use a dedicated press-pack tester or install it in a known-good stack with proper snubbers.
What does “Press-Pack” mean for installation?
It means the ABB 3BHL000390P0104 5SHX1960L0004 is not soldered or bolted; it’s clamped between two cooled copper plates. Uniform pressure is critical. Follow ABB’s torque sequence and use a calibrated torque wrench. Never use impact drivers.
Is this module hot-swappable?
Absolutely not. The ABB 3BHL000390P0104 5SHX1960L0004 is connected to the high-voltage DC bus. You must de-energize the drive, wait 15 minutes for capacitors to discharge, and verify zero voltage before touching it. Pulling it live will arc the buswork and likely destroy the entire stack.
Why is my IGCT getting hot?
Normal, but monitor it. The ABB 3BHL000390P0104 5SHX1960L0004 dissipates significant heat during conduction. If it’s too hot to touch (>80°C), check the cooling flow, clamping force, and snubber circuit. Over-temperature will shorten its life significantly.
Can I repair a failed press-pack IGCT?
No. The ABB 3BHL000390P0104 5SHX1960L0004 is a sealed, press-pack device. You can’t open it or replace internal bonds. If it’s failed, it’s scrap. Buy a verified surplus unit; it’s cheaper than a stack fire.
