Description
Key Technical Specifications
- Part Number 1: 3BHE024855R0101
- Part Number 2: UFC921A101
- Processor: High-speed processor with advanced control algorithms
- Design: Modular (Power, CPU, I/O, Communication modules)
- Programming: Intuitive graphical interface, 6 programming languages
- Communication: Supports multiple protocols for seamless device integration
- Safety Features: Overload protection, short-circuit protection
- I/O Capability: Configurable input/output modules
- Mounting Type: Backplane / Rack mount
- System Compatibility: ABB AC31 series (via CS31 interface)
Product Introduction

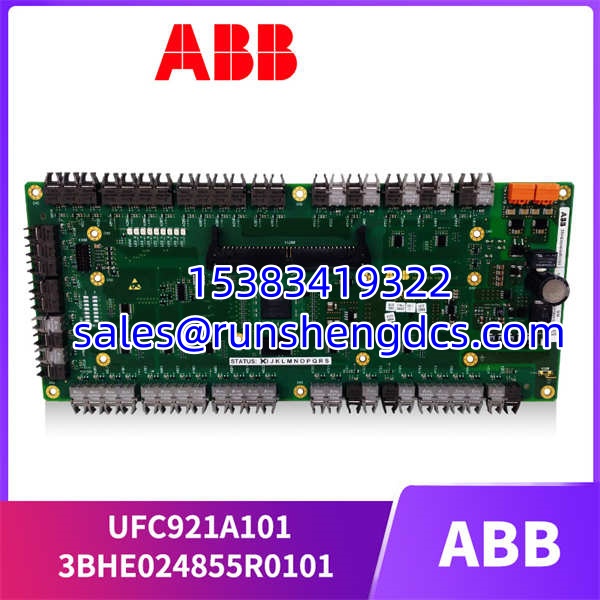

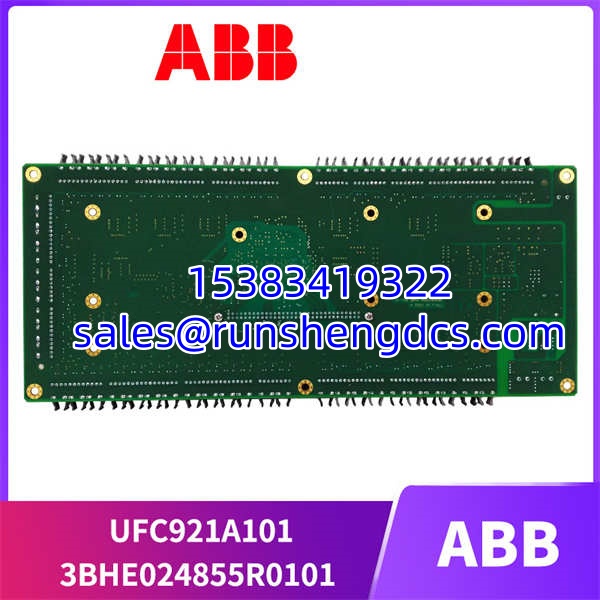

You pull this board when your legacy ABB PLC stops talking to the floor. The 3BHE024855R0101 (also known as UFC921A101) is a core control module designed for heavy-duty industrial automation. It acts as the brain for manufacturing equipment and complex control systems. Built with a modular architecture, it lets you swap out specific power, CPU, or I/O cards without replacing the entire chassis.
Why keep this specific part on the shelf? Fast, stable execution. The high-speed processor handles complex logic without choking. It also supports graphical programming and multiple communication protocols, making integration with older AC31 systems much easier. Bottom line—having the exact OEM board prevents extended downtime when a legacy system fails.
Troubleshooting Quick Reference
- Fault: Board fails to power up | Cause: Blown internal fuse or backplane power drop | Relevancy: High (85%) | Quick Check: Measure 24V DC at the module input terminals | Fix: Replace fuse or check power supply unit (PSU)
- Fault: Communication loss on network | Cause: Corrupted config or loose network cable | Relevancy: Medium (70%) | Quick Check: Ping module IP, inspect physical network port | Fix: Reseat cable, reload configuration via control software
- Fault: Erratic I/O readings | Cause: Ground loop or failing DAC/ADC | Relevancy: Medium (60%) | Quick Check: Measure output with multimeter, check shielding | Fix: Isolate ground, replace module if hardware is dead
- Fault: System watchdog timeout | Cause: Firmware crash or overloaded CPU | Relevancy: Low (40%) | Quick Check: Check CPU load in engineering software | Fix: Power cycle rack, update firmware if necessary

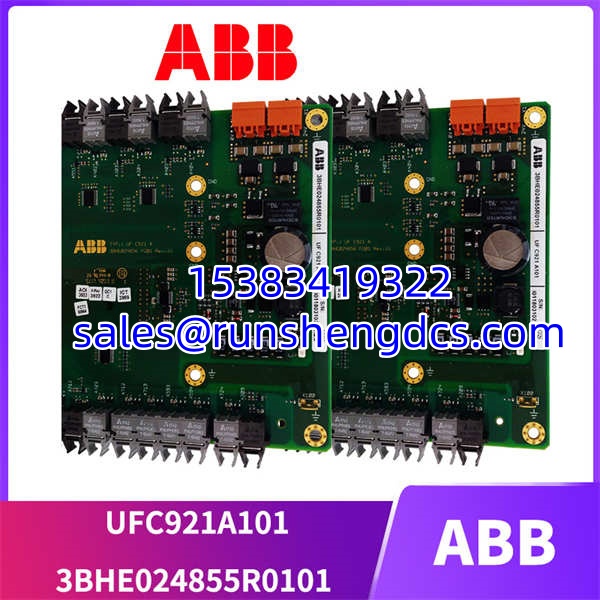

ABB-3BHE024855R0101-UFC921A101
Application Scenarios & Pain Points
- Manufacturing Lines: High-speed assembly lines demand zero-tolerance for controller failures. This modular PLC ensures continuous operation even if a single I/O card fails.
- Legacy System Upgrades: Older AC31 systems need modern communication. The CS31 interface on this board bridges the gap without a full system overhaul.
- Heavy Industrial Automation: Electrical noise from VFDs can corrupt standard control signals. This ABB control board is shielded to maintain logic stability in harsh environments.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for UFC921A101 or 3BHE024855R0101. Verify hardware revision suffix matches your existing backplane to avoid pinout conflicts.
- ⚠️ Software Compatible: Newer ABB PLC revisions. May require Control Builder parameter adjustments and a brief system outage for reconfiguration. Budget 2-4 hours of engineering time.
- ❌ Hardware Incompatible: Non-ABB PLC boards or generic I/O modules. Completely different backplane architecture and proprietary communication protocols. Do not attempt to adapt.
