Key Technical Specifications
- Control Supply Voltage: 24 V DC (±20%)
- Output Frequency: 50 kHz
- Logic Processing Speed: 550 μs
- Program Capacity: 300 KB
- Data Storage: 200 KB
- Peak Current: 30 A (instantaneous)
- Operating Temp: -40°C to 70°C
- Humidity Range: 5% to 95% (non-condensing)
- Vibration Rating: 3g (10-500 Hz)
- Protection Features: Phase overvoltage, FUSE monitoring, dead-time detection.
ABB-3BHB005243R0105
Product Introduction

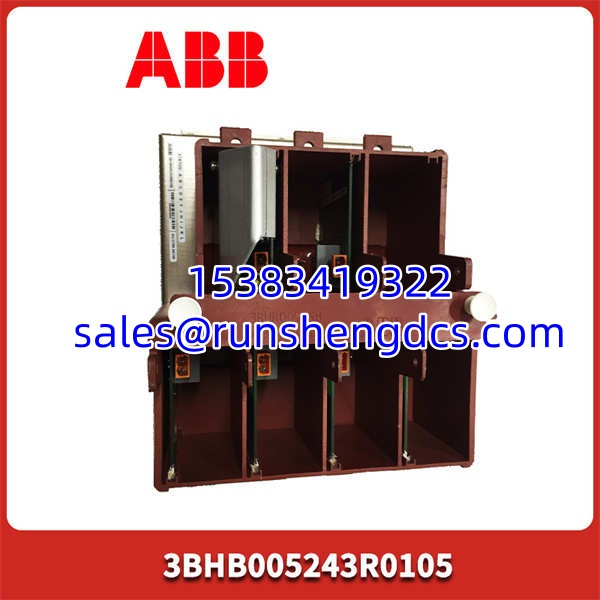

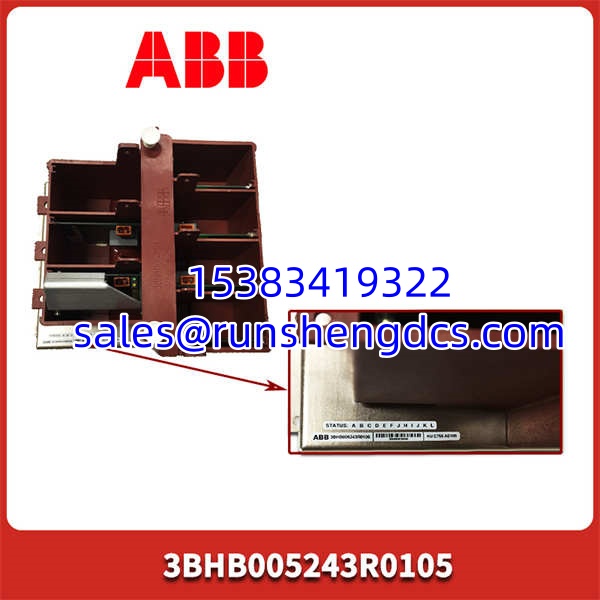

High-voltage motor drives fail fast when gate units lose clean power. The 3BHB005243R0105 (KUC755AE105) is the gate unit power supply module that prevents this. It sits inside high-voltage inverter cabinets, providing the exact pulse timing and isolated power needed to trigger IGBTs or IGCTs safely.
This board handles dirty industrial power and translates it into precise gate signals. It features built-in phase overvoltage protection and fuse fault monitoring. With a 550 μs logic processing speed and a 30 A peak current capacity, it ensures your drive responds instantly without false tripping. Bottom line: it keeps your 10 kV motors running when the grid fluctuates.
Troubleshooting Quick Reference
- Drive Trips on Fuse Fault: 80% chance it’s an actual blown gate fuse. Measure zero-sequence current. If missing, replace the physical fuse on the gate board before swapping this module.
- Gate Pulse Missing: Check the 24 V DC control supply at the terminal block. Voltage drop under load causes pulse starvation. Measure directly at the module pins.
- Overvoltage Alarm: Inspect the dead-time detection circuit. If switching transients exceed the threshold, the module locks out. Verify snubber circuits on the power stack.
- Intermittent Communication: Check the RS-485 / Modbus wiring. High-voltage noise corrupts data. Ensure shield grounding is solid at one end only.
ABB-3BHB005243R0105
Application Scenarios & Pain Points
- Steel Mill Continuous Casting: Massive 2,000 kW motors face brutal grid sags during arc furnace strikes. Standard drives trip. This module’s overvoltage protection absorbs the shock.
- Cement Plant Kilns: Extreme ambient heat and conductive dust destroy standard electronics. The -40°C to 70°C operating range keeps these boards alive in the trenches.
- Water Treatment Pump Stations: Hydraulic transients from sudden valve closures cause voltage spikes. Fast fault detection prevents catastrophic IGBT explosions.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3BHB005243R0105 / KUC755AE105 (Exact match. Verify hardware revision letter before swapping. No rewiring needed.)
- ⚠️ Software Compatible: 3BHB005243R0106 (Requires parameter migration and firmware sync. Budget 2-4 hours for commissioning and testing.)
- ❌ Hardware Incompatible: 3BHB005243R0001 (Different pinout and gate timing. Requires new backplane and rewiring. Do not attempt as direct swap.)
