Description
Key Technical Specifications
- Material Code: 3ASC25H209
- Structure Form: Modular
- Operating Voltage: 24 VDC
- Processing Speed: 10 Mbit/s
- Program Capacity: 128 MByte
- Data Capacity: 4 MByte
- I/O Points: 6
- Ambient Temperature: 55 °C
- Ambient Humidity: 5% to 95%
- Product Weight: 0.26 kg

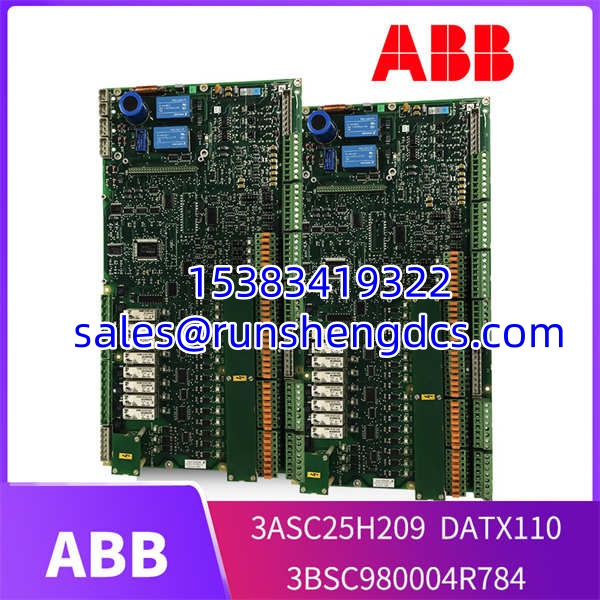

ABB-3ASC25H209-DATX110-3BSC980004R784
Product Introduction
Field wiring is a nightmare when noise gets into the signal path. This ABB 3ASC25H209 DATX110 control board acts as the central nervous system in PLC or DCS racks, bridging the gap between raw field sensors and the main controller. It sits in the control room, managing the exact timing of inputs and outputs to keep the process logic intact.
Why does this specific board matter? Signal integrity. The input module features an RC filter circuit with a typical time constant of 10 ms, effectively killing contact bounce and electrical noise. Output latency varies by type—relay outputs hover around 10 ms, while transistor outputs stay under 1 ms. That precise timing prevents control delays and keeps the production line from tripping over its own shadow.
Troubleshooting Quick Reference
- No Power LED | Dead power supply or blown fuse | 80% chance it’s the power supply | Measure terminal block for 24 VDC | Replace PSU or check rack backplane
- Intermittent I/O Faults | Ground loops or EMI interference | 60% chance it’s field wiring | Check shield grounding at one end only | Reroute signal cables away from VFDs
- Communication Loss | Firmware mismatch or bad backplane | 50% chance it’s software config | Verify firmware version matches chassis | Reseat module and check DIP switches
- Slow Response Time | High filter constant or CPU overload | 40% chance it’s scan cycle | Measure actual input-to-output delay | Reduce RC filter time constant if possible

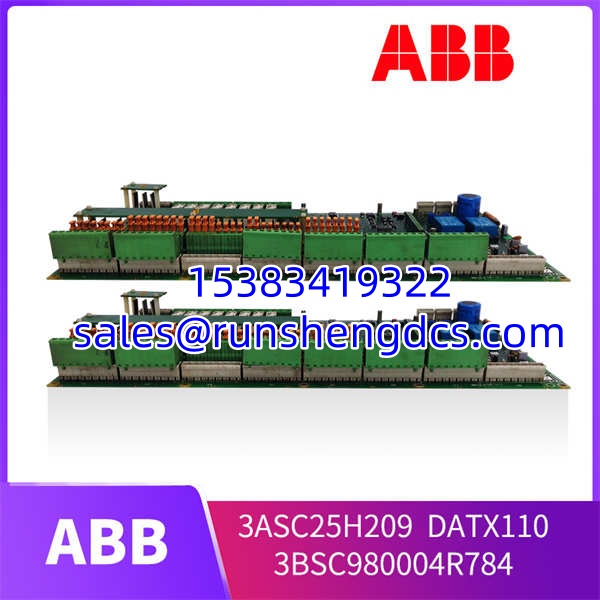

ABB-3ASC25H209-DATX110-3BSC980004R784
Application Scenarios & Pain Points
- Heavy Metallurgy: High electromagnetic interference from arc furnaces constantly corrupts sensor signals, requiring aggressive RC filtering on input modules to prevent false trips.
- Oil & Gas Refining: Explosive environments demand absolute reliability; a 10 ms output delay on a safety valve can mean the difference between a controlled shutdown and a catastrophic leak.
- Automotive Manufacturing: High-speed assembly lines require sub-millisecond transistor outputs; relay-based modules simply cannot keep up with robotic welding cell synchronization.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3ASC25H214 DATX130 — Same footprint, verify firmware revision before installing. No rewiring needed.
- ⚠️ Software Compatible: 3ASC25H210 DATX120 — Same series but different I/O mapping. Requires PLC program recompile and download. Budget 2-4 hours for reconfiguration.
- ❌ Hardware Incompatible: 3ASC25H224 DATX111 — Different pinout and bus connector. Do NOT attempt to force-install. Requires new rack slot and rewiring.
