Description
Key Technical Specifications

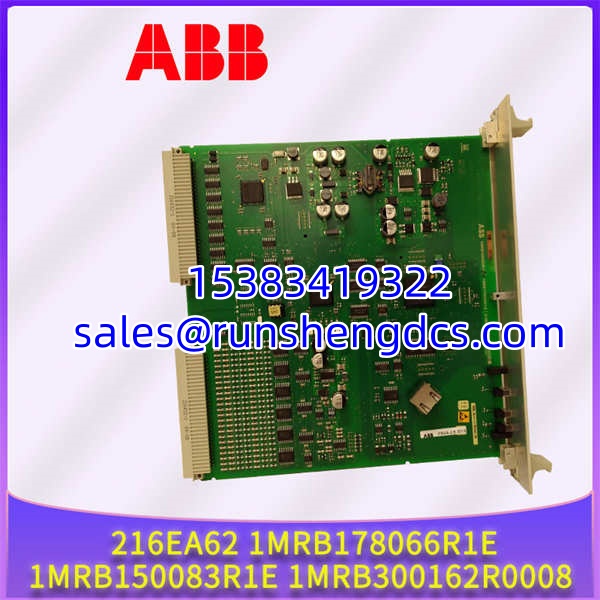

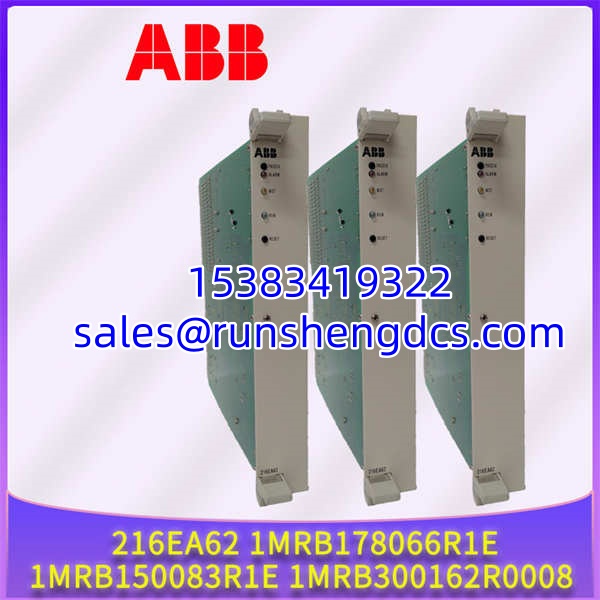

- Product Type: Analog Input Unit (Sampling Module)
- Order Number: 216EA62
- Cross-References: 1MRB178066R1/E, 1MRB150083R1/E, 1MRB300162R0008
- Input Channels: 24 simultaneous inputs (grouped in sets of 6)
- Sampling Frequency: 600 Hz (at 50 Hz system) / 720 Hz (at 60 Hz system)
- Dynamic Range: 15-bit
- Samples per Cycle: 12 samples at rated power system frequency
- Signal Processing: Digital filtering for DC and harmonic suppression
- Rack Space: 2 rack partitions
- Bus Interface: Parallel Bus B448C (IEEE P896 based)
- Power Supply: Internal 24 V DC from shared auxiliary unit
Product Introduction
Generator protection doesn’t wait for a second opinion. The 216EA62 is the analog front-end sitting in the REG216 rack, grabbing 24 channels of voltage and current at exactly the same time. It samples at 600 Hz (or 720 Hz for 60 Hz grids) to feed the digital protection algorithms with clean, synchronized data.
You need this specific board because timing is everything in fault detection. With a 15-bit dynamic range and built-in digital filters that kill DC offsets and harmonics, it ensures your protection relays don’t misoperate during external faults or grid disturbances. It talks to the rest of the REG216 system over the parallel bus B448C. Bottom line: if this module drifts or fails, your generator is flying blind.
Troubleshooting Quick Reference
- Protection False Trips: 80% chance it’s a CT/VT wiring issue or saturation. Check secondary circuit integrity. Verify the 15-bit dynamic range isn’t being clipped by DC offset.
- Bus Communication Errors: Inspect the Parallel Bus B448C connectors. Bent pins or oxidation cause handshake failures. Reseat the module and check the bus termination resistors.
- Erratic Sampling Values: Measure the internal 24 V DC supply. Voltage ripple or drop from the auxiliary power unit (216NG61/62/63) corrupts the A/D conversion.
- Module Not Recognized: Check the rack slot assignment. The REG216 system expects this module in specific partitions. Verify the hardware configuration matches the actual physical layout.

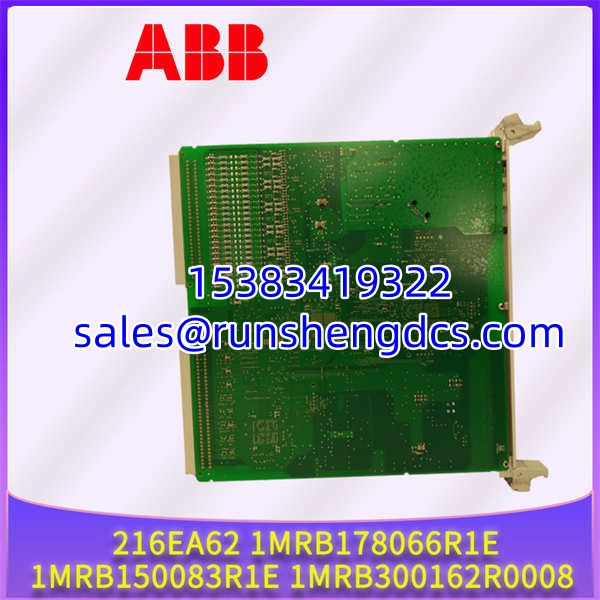

ABB-216EA62-1MRB178066R1E-1MRB150083R1E-1MRB300162R0008
Application Scenarios & Pain Points
- Thermal Power Plants: Grid faults cause massive current surges. Standard CTs saturate, but this module’s 15-bit range and digital filtering keep the protection logic stable.
- Hydroelectric Stations: Variable frequency operation stresses protection algorithms. The 600/720 Hz adaptive sampling tracks the generator’s actual speed, not just grid frequency.
- Industrial Cogeneration: Sudden load rejection causes voltage spikes. Fast, simultaneous sampling ensures the excitation and breaker control react in the correct sequence.
Compatible Replacement Models
- ✅ Drop-in Replacement: 216EA62 / 1MRB178066R1/E (Exact match. Verify the “/E” revision suffix. No rewiring or configuration changes needed.)
- ⚠️ Software Compatible: 1MRB150083R1/E / 1MRB300162R0008 (Cross-reference variants. May require parameter verification and bus configuration check. Budget 2-4 hours for validation.)
- ❌ Hardware Incompatible: 216EA61 / 216EA63 (Different channel count or sampling architecture. Requires full system reconfiguration and protection relay retesting. Do not attempt as a direct swap.)
