Description
Key Technical Specifications
- Primary Function: Analog I/P (Current-to-Pressure / Signal) Conversion
- Application Domain: Industrial Process Control & Automation
- Module Type: 216EA61B Analog Input Board
- Cross-Reference Part 1: HESG324015R1
- Cross-Reference Part 2: HESG324258R3I
- Cross-Reference Part 3: HESG448230R1
- System Integration: DCS / PLC Analog I/O Subsystem
- Signal Processing: Precision Analog I/P Signal Handling
- Form Factor: Rack-Mounted Control Board
- Lifecycle Status: Legacy / Discontinued
Product Introduction
You are staring at the sensory nerves of a legacy ABB control system. The 216EA61B (tracked across multiple part numbers like HESG324015R1 and HESG448230R1) is a specialized analog signal processing module. It handles the critical translation of raw I/P (current-to-pressure or analog) signals from the field into clean digital data for your DCS. When a pressure transmitter or flow meter needs to talk to the main controller without introducing noise, this board does the heavy lifting.
Why keep hunting for this specific module? Because replacing an entire analog I/O subsystem means recalibrating hundreds of field instruments. These boards are aging out of the active supply chain, and finding a verified, tested spare prevents a multi-week factory rebuild. Honestly, it’s a highly reliable piece of kit. Sourcing them now is your best insurance to keep legacy process plants running smoothly without a massive DCS migration.
Troubleshooting Quick Reference
- Erratic Analog Readings | Signal Noise / Ground Loop | 60% Probability | Check shield grounding at the module | Single-point ground required. Verify field wiring isn’t running parallel to VFD cables.
- Module Won’t Boot | Corrupt Firmware | 30% Probability | Boot from USB recovery | Flash failed. Re-image using known-good USB stick. If it loops, the flash memory is dead.
- Intermittent Data Drops | Backplane Seating Issue | 40% Probability | Reseat module in rack | Vibration loosens connections. Clean backplane pins with contact cleaner.
- Overtemperature Alarm | Cooling Failure | 50% Probability | Check cabinet fan RPM and filters | Clogged filters kill analog boards. Clean heat sinks. Verify airflow direction.
- Calibration Drift | Component Aging | 20% Probability | Run self-diagnostics and recalibrate | Internal reference voltage degraded. If it fails self-test, the module is dead.

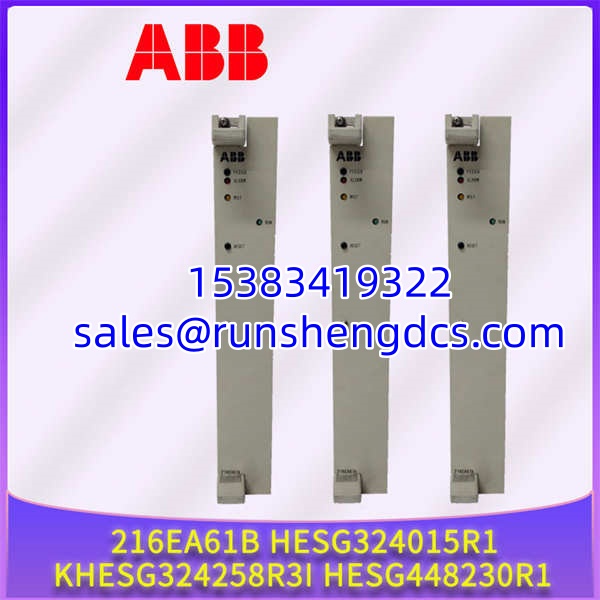

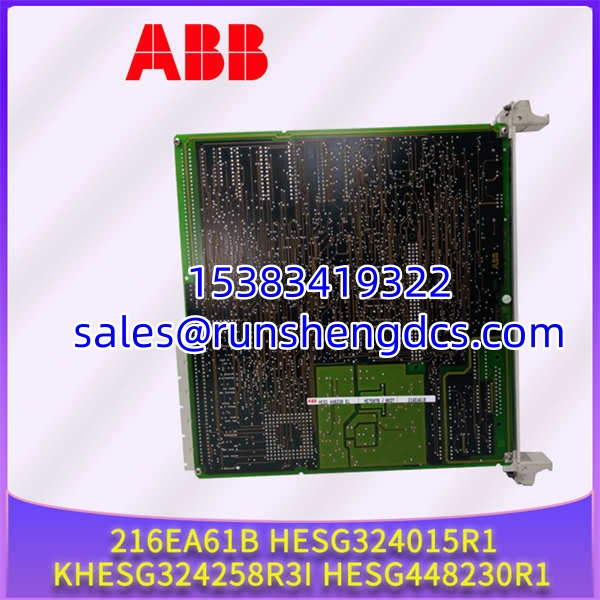

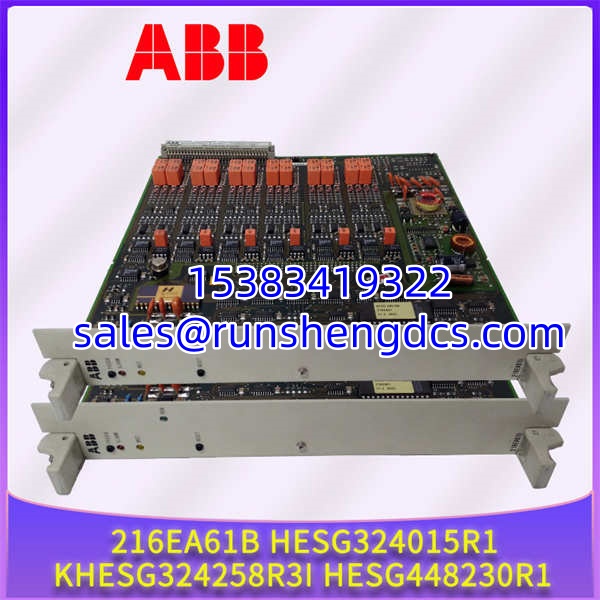

ABB-216EA61b-HESG324015R1-KHESG324258R3I-HESG448230R1
Application Scenarios & Pain Points
- Chemical Reactor Control: Precise pressure and flow measurements are mandatory. A failing analog board introduces noise that causes PID loops to oscillate, ruining product quality.
- Brownfield Power Plants: Legacy 4-20 mA networks refuse to die. This module bridges 20-year-old field transmitters to newer control layers without adding expensive signal conditioners.
- Heavy Metallurgy Mills: Massive EMI from nearby motors destroys standard analog signals. The 216EA61B’s ruggedized filtering keeps field data clean in brutal environments.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB 216EA61B / HESG324015R1 / HESG448230R1. Exact same hardware revision. Verify serial number and firmware version match your existing rack. No reprogramming needed if versions align.
- ⚠️ Software Compatible: ABB 216EA62 / 1MRB150083R1. Same 216 Series engineering tool and signal protocol. Hardware pinout or channel count may differ. Expect 2-4 hours for parameter migration and functional testing.
- ❌ Hardware Incompatible: Standard AC800M Analog I/O Modules. Completely different backplane bus and engineering software. Rewiring and full DCS migration required. Do not attempt as a quick swap.
