Description
Key Technical Specifications
- Product Type: Stepping Linear Control Motherboard
- Brand: ABB
- Material: Industrial-grade Metal and PCB
- Output Frequency: Standard kHz
- System Compatibility: DCS / PLC Systems
- Installation Type: Direct DIN Rail Mount
- Manufacturing Origin: Switzerland
- Condition: New Surplus / Original Factory Packaging
- Application: Industrial Automation Control
- Customization: Non-customizable standard spare part
Product Introduction
When a legacy DCS system goes down, finding a specific control board can feel like hunting for a needle in a haystack. The ABB 086349-002 is a stepping linear control motherboard designed to keep older industrial automation setups breathing. It takes the heavy lifting of logic sequencing and translates it into precise stepping commands for the rest of the rack. I’ve seen plants lose thousands of dollars an hour just waiting for this exact board to ship from overseas.
Engineers grab this specific motherboard because it bridges the gap between old hardware and continuous production. It is built with standard kHz output frequencies and mounts directly onto standard DIN rails, making field swaps a straightforward mechanical job. Just be warned: this is a discontinued part. The market is flooded with counterfeits, so if the PCB solder mask looks glossy instead of matte, or if the silkscreen font is slightly off, send it back.
Quality SOP & Tech Pitfalls (The Reality Check)
Before any ABB 086349-002 leaves our bench, it goes through a strict protocol. We start with a visual counterfeit check, inspecting the PCB traces and IC date codes. Next, it goes on a live test rack to verify the stepping logic and kHz output timing. We check insulation resistance with a Fluke 115 to ensure no internal shorts, verify the component layout against factory schematics, and seal it in fresh anti-static packaging. I can provide the test video if you need peace of mind.
Here is the brutal reality of swapping these old boards: ESD is the silent killer. I once watched a tech slide this board into a rack without wearing a grounding strap, and the static discharge fried the internal logic gate instantly. Also, never force the DIN rail clips. The plastic on these older ABB boards gets incredibly brittle after years in a hot cabinet. If you snap the clip, the board will vibrate loose during operation, causing a catastrophic system fault.
Installation & Configuration Guide
- Pre-Installation: ⚠️ SAFETY FIRST. Power down the DCS rack and verify zero voltage with a multimeter. Wait at least 5 minutes for internal capacitors to discharge. Take high-resolution photos of the existing wiring and all jumper/DIP switch positions.
- Removal: Label every single wire with a sharpie. Release the DIN rail clips carefully using a flathead screwdriver to relieve tension. Do not pry from the center of the board.
- Installation: Copy the DIP/Jumper settings exactly. This step prevents 90% of startup failures. Slide the new ABB 086349-002 onto the DIN rail and press firmly until the backplane connector seats fully. Reconnect wires according to your photos.
- Power-On & Testing: Apply power to the DCS rack. Watch the module LEDs. The fault light should blink briefly during boot, then go out. Verify the stepping sequence using your PLC software and check the output frequency with an oscilloscope to ensure it matches the standard kHz spec.

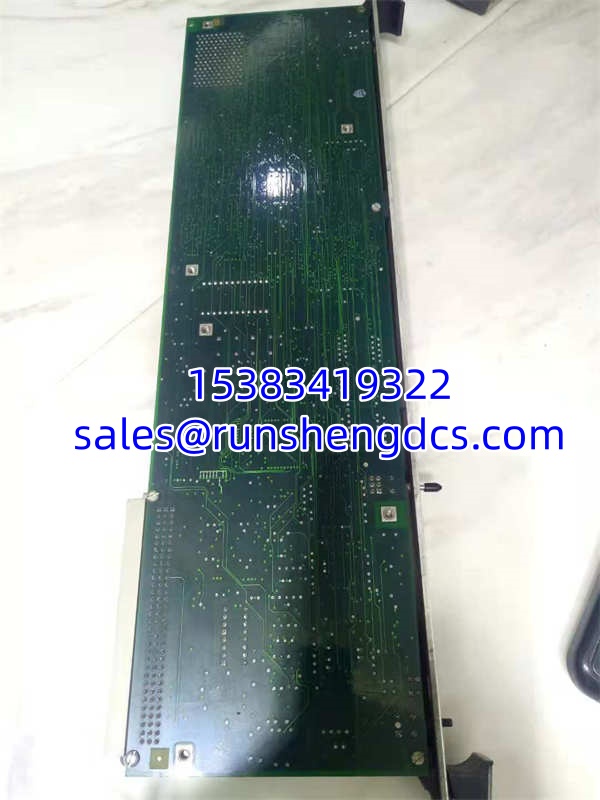

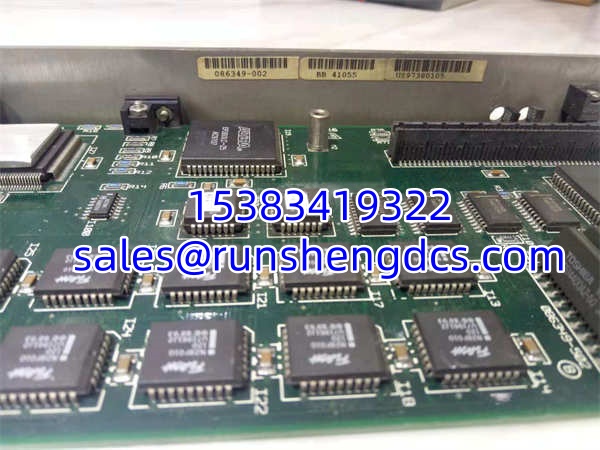

ABB 086349-002
Compatible Replacement Models
| Replacement Model | Compatibility Tier | Notes |
|---|---|---|
| ABB 086349-001 | ✅ Drop-in Replacement | Previous hardware revision. Hardware and software match, but always verify firmware compatibility. |
| ABB 086318-002 | ⚠️ Software Compatible | Same family board. May require checking firmware compatibility or minor logic adjustments. |
| ABB 086318-501 | ⚠️ Software Compatible | Alternate revision. Requires checking I/O mapping in the DCS configuration before installing. |
Frequently Asked Questions (FAQ)
Can I hot-swap the 086349-002 while the DCS is running?
No. This is a legacy control motherboard, not a modern hot-swappable I/O card. Pulling it under load will cause a backplane fault and likely crash the entire DCS node.
Why is my 086349-002 showing a fault after installation?
Check your DIP switch settings first. If the board’s hardware ID doesn’t match what the DCS expects, it will fault immediately. Also, verify the DIN rail is properly grounded to prevent noise interference.
Is the 086349-002 still manufactured by ABB?
No, it is officially obsolete. You are buying New Surplus or refurbished stock. Lead times vary wildly depending on who has it sitting on a shelf.
Can I use a standard multimeter to test the output?
You can check for basic voltage presence, but to truly verify the stepping linear control, you need an oscilloscope. A multimeter won’t accurately capture the standard kHz frequency transitions.
Does this module have internal diagnostics?
Yes, it communicates fault states back to the DCS processor via the backplane. If the board fails its internal self-test during boot, it will lock out and require a power cycle or replacement.
What happens if I mix 086349-002 and 086318-002 in the same rack?
It depends on the backplane architecture. If they share the same base protocol, it might work. But if the timing tolerances differ, you will get intermittent communication drops. Always stick to the exact OEM part number unless a factory bulletin says otherwise.
