Description
Key Technical Specifications

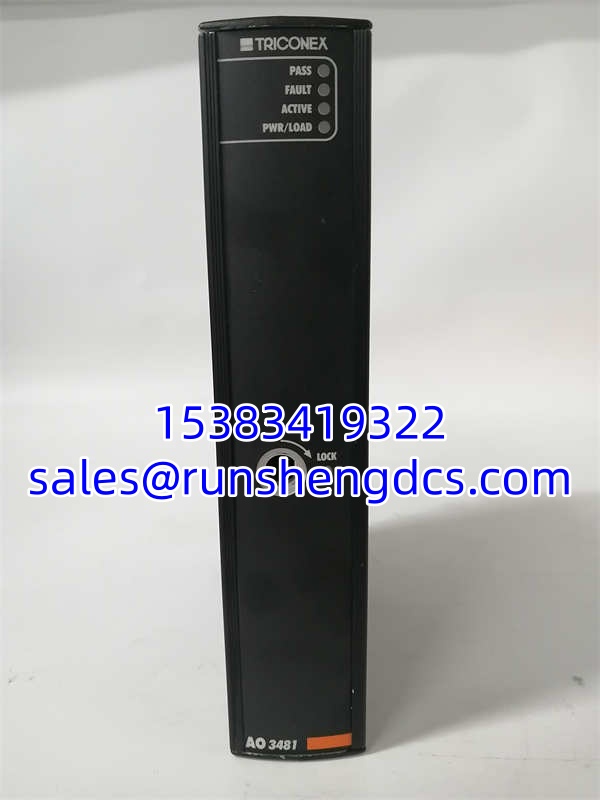

| Parameter | Specification |
|---|---|
| Product Model | TRICONEX 3481 |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Type | 4-Channel Analog Output Module |
| Output Signal | 4-20 mA (0-22 mA Overrange) |
| Resolution | 12-bit |
| Output Accuracy | < 0.25% of FSR |
| Channel Isolation | Point-to-Point Isolated |
| Loop Power | External 24VDC Required |
| Safety Integrity Level | SIL 3 (TÜV Certified) |
| Diagnostic Features | FSD (Field Switch Diagnostic) |
| Operating Temp | 0°C to 70°C |
| Installation | Tricon Chassis, Hot-Swappable |
Product Introduction
I’ve seen control valves drift because a cheap analog output card couldn’t handle the electrical noise from a nearby VFD. The TRICONEX 3481 is the analog output module designed to stop that drift. It takes digital commands from the Tricon controller and converts them into precise 4-20mA signals that drive final control elements. With point-to-point isolation on all four channels, ground loops are eliminated, and signal integrity is maintained even in the noisiest industrial environments.
Engineers trust this module because it actually delivers on its accuracy spec. The < 0.25% FSR accuracy means your control valves are exactly where you commanded them to be. The 12-bit resolution gives you fine control authority, and the 0-22mA overrange capability lets you detect broken wires or failed devices without guessing. My only advice: make sure your external loop power is clean and stable. This module doesn’t source its own loop power, so a noisy 24VDC supply will show up in your output signal.
Quality SOP & Tech Pitfalls
We don’t ship blind. Every TRICONEX 3481 goes through a rigorous QA process. First, visual and counterfeit inspection. Then, it goes on the Tricon test rack where we command 4mA, 12mA, and 20mA outputs and verify the actual current with a precision multimeter. We check isolation resistance between channels and to ground. Firmware revision is logged, and the module is sealed in anti-static packaging.
Here is where people get burned: This module does NOT provide loop power. I’ve watched techs spend hours troubleshooting why their valves aren’t moving, only to discover they never connected the external 24VDC loop supply. Also, don’t ignore the FSD diagnostic. If the Field Switch Diagnostic indicates a problem, don’t just reset it. Find out why the field circuit is failing. I once saw a tech bypass three consecutive FSD alarms before the valve finally stuck open during a real emergency.
Installation & Configuration Guide
- Pre-Installation: ⚠️ SAFETY FIRST. Power down the Tricon chassis or isolate the slot. Wait 60 seconds for backplane capacitors to discharge. Take a photo of the old module’s jumper settings and wiring.
- Removal: Label every wire. Release the ejector levers gently. If the module resists, don’t force it. You’ll damage the backplane connector.
- Installation: Verify all jumper settings match the old module. This prevents 90% of startup headaches. Align the TRICONEX 3481 and press firmly until the backplane connector seats fully. Reconnect wires per your photo.
- Power-On & Testing: Restore power. Watch the LED indicators. Pass should be green, Fault should be off. Command a 50% output and verify with a multimeter at the terminal block. Check that the external loop power is present and stable.
TRICONEX O3481
Compatible Replacement Models
- ✅ Drop-in Replacement: TRICONEX 3481 (Exact match. Direct swap. Verify revision letter for firmware compatibility.)
- ⚠️ Software Compatible: TRICONEX 3482 (Similar specs, but verify output range and diagnostic features. May require logic recompile. Budget 2 hours for verification.)
- ❌ Hardware Mod Required: Non-3481 Series AO Modules (Different pinout, different backplane protocol. Do not attempt to adapt. Requires full chassis upgrade.)
Frequently Asked Questions (FAQ)
Does this module provide loop power?
No. The TRICONEX 3481 requires external 24VDC loop power. You must wire the loop supply to your field devices. The module only sinks the current.
My output is reading 0mA even though I’m commanding 12mA. What’s wrong?
Check your external loop power first. No 24VDC means no output current. If power is good, check the FSD diagnostic. A field open or short will force the output to 0mA as a fail-safe.
Can I hot-swap this module?
Yes, the TRICONEX 3481 supports hot-swap in a TMR configuration. The system will continue to operate on the remaining good channels while you replace the faulty one. Just follow the OEM hot-swap procedure exactly.
What does the FSD indicator mean?
Field Switch Diagnostic. It means the module has detected an abnormal condition in the field circuit—open wire, short, or out-of-range impedance. Don’t ignore it. Investigate the field wiring before resetting.
Is this the same as the AO3481?
Yes. TRICONEX 3481 and AO3481 are the same module. AO3481 is just the descriptive prefix. The ordering code is 3481.
How accurate is this module really?
The spec is < 0.25% of full scale range. In my experience, it typically performs better than that at room temperature. But if you’re running at 65°C ambient, expect some drift. Always calibrate at operating temperature if precision matters.
Does it support HART?
No. The TRICONEX 3481 is a standard 4-20mA analog output module. It does not support HART communication. If you need HART, you need a different module.
