Description
Key Technical Specifications
- Product Number: 2351
- Common Variant: AI2351
- Order Code: 7400210-100
- Brand: Triconex / Schneider Electric
- Product Type: Analog input baseplate
- System Family: Triconex TMR safety control system
- Input Channels: 8 analog inputs
- Supported Signals: 4–20 mA, 0–10 V
- Accuracy: Approximately ±0.1% F.S.
- Function: Field analog signal acquisition for TMR controller
- Application Class: Safety instrumented / process control I/O
- Compatibility: Must match Tricon/Trident hardware configuration and I/O slot requirements
Product Introduction

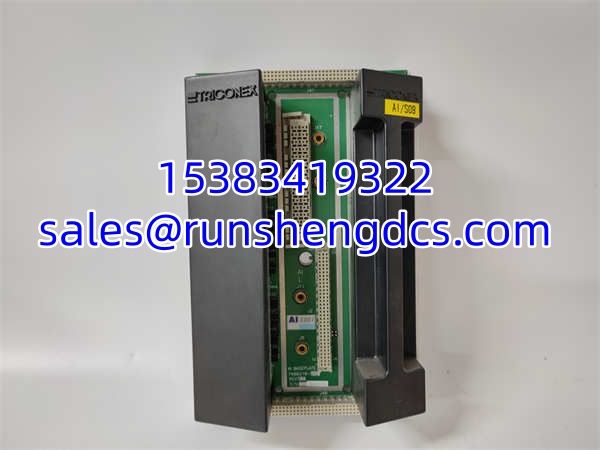

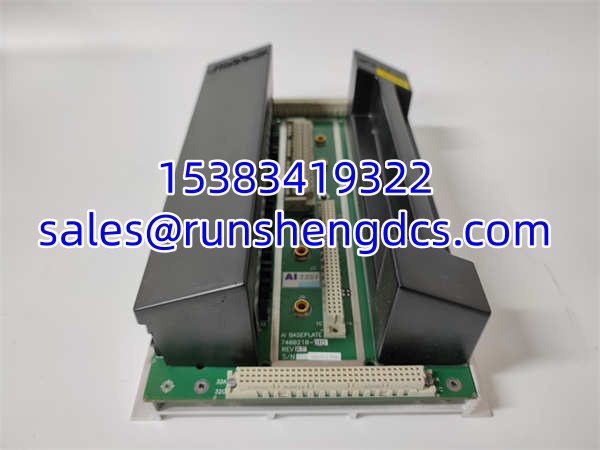

In a Triconex safety system, the baseplate is not just a mechanical holder. It is the interface between field wiring and the TMR controller. The TRICONEX 2351 / AI2351 is generally treated as an analog input baseplate used to bring continuous process signals — pressure, temperature, flow, level, valve feedback — into the safety controller.
That makes it a high-consequence spare. If you install the wrong “2351” variant, you may get a module that physically fits but does not match the controller’s I/O configuration, channel type, or safety application. The right use case is replacing a failed or damaged AI2351 / 7400210-100 baseplate in an existing Triconex cabinet where the system already expects an analog input module at that position.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| Channel reads 0 or stuck value | Field wiring, fuse, or transmitter issue | Measure 4–20 mA at terminal | Check 24 V loop power, wiring, and transmitter output |
| Fault LED active | Module/baseplate fault or configuration mismatch | Read controller I/O diagnostics | Verify module type matches controller config |
| Intermittent values | Loose terminal, corroded pin, or bad backplane contact | Reseat module if allowed by procedure | Inspect terminals and baseplate contacts |
| Wrong scaling | Engineering range mismatch | Compare transmitter range to controller scaling | Recheck 4–20 mA / 0–10 V configuration |
| Module not recognized | Wrong variant or revision | Check nameplate: 2351, AI2351, 7400210-100 | Replace with exact matching part/revision |
| Safety fault persists after swap | Upstream I/O bus or MP module issue | Check TriBus / I/O bus status | Do not force; verify with Triconex documentation |
TRICONEX 2351
Application Scenarios & Pain Points
- Petrochemical / refining: Pressure, temperature, and flow signals feed safety interlocks. The pain is a failed AI baseplate causing bad process values and possible spurious trips.
- Power generation: Boiler, turbine, or auxiliary protection systems rely on accurate analog inputs. A degraded baseplate can create drift that is hard to separate from transmitter failure.
- Oil and gas processing: Harsh environments increase the risk of terminal corrosion, backplane contact issues, and intermittent channel faults.
- Chemical plants: Safety instrumented functions depend on correct analog scaling. Wrong baseplate variants can pass physical installation but fail configuration checks.
- SIS maintenance / turnaround: The bottleneck is often not the controller — it is finding the exact Triconex baseplate with the correct revision.
