Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Family | Schneider Electric Modicon Quantum 140 |
| Part Number | 140DDO84300 |
| Module Type | DC discrete output module |
| Output Points | 16 |
| Output Grouping | 2 groups of 8 outputs |
| Output Logic | Negative logic / sinking |
| Output Voltage | 10–60 VDC |
| Voltage Limit | 10.2–72 VDC |
| Absolute Maximum Output | 72 VDC continuous |
| Voltage Drop | ≤1 V at 2 A |
| Load Current per Point | 2 A |
| Load Current per Group | 6 A |
| Load Current per Module | 12 A |
| Surge Current | ≤7.5 A for 50 s |
| Response Time | ≤1 ms, 0→1 and 1→0 |
| Leakage Current | ≤1 mA at 60 V |
| Internal Protection | 8 A fuse per output group; 2 A per point |
| Channel-to-Bus Isolation | 2,500 Vrms DC for 1 min |
| Group-to-Group Isolation | 700 Vrms DC for 1 min |
| Address Requirement | 1 output word |
| Bus Current | 160 mA |
| Power Consumption | 1 W + (1 V × total module load current) |
| Indicators | 16 green output LEDs, 1 red fault LED, 1 green bus/activity LED |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–85 °C |
| Humidity | 95% RH, non-condensing |
| Altitude | ≤5,000 m |
| Weight | ~0.45 kg |
| Certifications | CE, C-Tick, FM Class I Div 2, GOST-R, MRS, UL 508, CSA C22.2 No. 142 |
| Environmental Compliance | RoHS Green Premium; REACH SVHC below threshold |
Product Introduction
The Schneider Electric 140DDO84300 is a Modicon Quantum 16-point DC discrete output module. It provides 16 sinking DC outputs arranged in two isolated groups of eight, each rated for 2 A per point and 6 A per group. The module is designed for 10–60 VDC loads such as solenoid valves, relay coils, contactor coils, pilot lights, and small DC actuators.
This is not a universal 24 VDC-only output card. Its 10–60 VDC range makes it suitable for applications where the field supply may vary, or where 24 VDC, 48 VDC, or other DC control voltages are used. Because it uses negative logic / sinking outputs, the module switches the low side of the load. The external DC supply positive connects to the load, and the module completes the circuit to the negative side.
The 140DDO84300 is a legacy Quantum I/O module. It remains relevant for maintaining existing Modicon Quantum racks, especially in power, water, manufacturing, and process applications where replacing the entire I/O platform is not yet justified. Replacement modules should be verified for correct firmware, mechanical condition, and point-level functionality before being installed in a live rack.
QA/QC Transparency SOP
- Nameplate Verification: Confirm Schneider Electric branding, part number 140DDO84300, and series designation. Reject units with missing labels, cracked housings, or damaged front connectors.
- Connector & Backplane Inspection: Check the module edge connector for bent pins, corrosion, or oxidation. Ensure clean seating in the Quantum rack.
- Power-Up Self-Test: Install in a powered Quantum rack and verify bus/activity LED behavior. Confirm no persistent red fault indication.
- Point-Level Output Test: Apply a safe 24 VDC or 48 VDC test supply. Force each output on and off. Verify LED indication, voltage drop, and load switching.
- Group Current & Fuse Check: Confirm that each group of eight outputs operates correctly under load. Verify internal fuse protection behavior per specification.
- Isolation Check: Perform insulation verification between channel groups and between channels and the backplane bus where test equipment and procedures allow.
- Final QC & Packaging: Record test results, LED status, and condition grade. Pack with connector protection and ESD-safe materials.
Field Engineer Gotchas
- It is a sinking / negative logic output. The module switches the low side. Do not wire it as a sourcing / PNP output.
- Per-point current is 2 A, not unlimited. Exceeding 2 A per point or 6 A per group can trip internal protection or damage the module.
- Group isolation matters. The 16 outputs are not fully channel-isolated. They are isolated in two groups of eight. Keep load supplies and grounding consistent within each group.
- Voltage range is 10–60 VDC. Do not connect AC loads or voltages above 72 VDC.
- Inductive loads need suppression. Solenoids, relays, and contactor coils should have flyback diodes or surge suppression to protect the output stage.
- Legacy module availability varies. Many units in the market are surplus or refurbished. Always request test records before deployment in critical service.

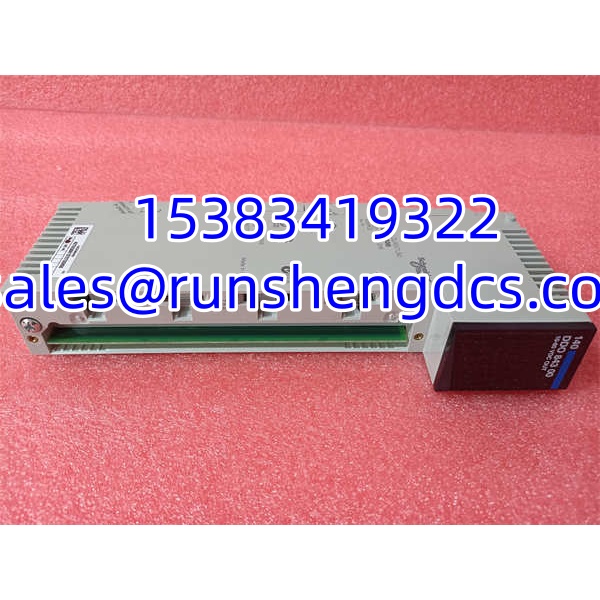

Schneider 140DDO84300
Application Scenarios
- Modicon Quantum maintenance: Replacing failed DC output points in an existing Quantum I/O rack without changing the control program.
- Solenoid valve control: Driving pneumatic or hydraulic solenoids in manufacturing, packaging, and process systems.
- Relay and contactor interfacing: Switching DC relay coils or contactor coils for motor starters and auxiliary circuits.
- Indicator and alarm outputs: Controlling pilot lights, horns, or status indicators from the PLC.
- Legacy plant sparing: Keeping verified 140DDO84300 modules as spares for plants that still rely on Modicon Quantum I/O.
FAQ
What is the Schneider 140DDO84300?
It is a Modicon Quantum 16-point DC discrete output module for 10–60 VDC sinking outputs.
How many outputs does it have?
16 outputs, arranged as two groups of eight.
What is the output current rating?
2 A per point, 6 A per group, 12 A per module.
Is it sourcing or sinking?
It is a sinking / negative logic DC output module.
Can it drive AC loads?
No. It is a DC discrete output module rated for 10–60 VDC.
What should I check before installing a replacement?
Verify the part number, output wiring polarity, load current per point and per group, supply voltage, inductive load suppression, and Quantum rack slot configuration.
Is this module still in production?
It is generally treated as a legacy Modicon Quantum module. New OEM availability should be confirmed directly with Schneider Electric or an authorized distributor; otherwise, expect surplus or refurbished supply.
