Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model | Pioneer Magnetics PM3326B-6-1-2-E (80026-529-01) |
| Input Voltage Range | 90-264 VAC (universal single-phase) |
| Input Current | 18.2 A (at minimum input voltage, full load) |
| Output Voltage | 56 VDC |
| Output Current | 17.9 A |
| Output Power | 1000 W |
| Efficiency | 90% |
| Isolation Voltage | 2 kVrms (input-to-output) |
| Hold-up Time | 20 ms |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Protection Functions | Overvoltage protection (OVP), short-circuit protection (SCP) |
| Dimensions | 270 x 260 x 40 mm |
| Weight | 3.87 kg |
| Ripple and Noise | Not specified in available documentation |
| HS Code | 8504.40.00 (Static converters) |

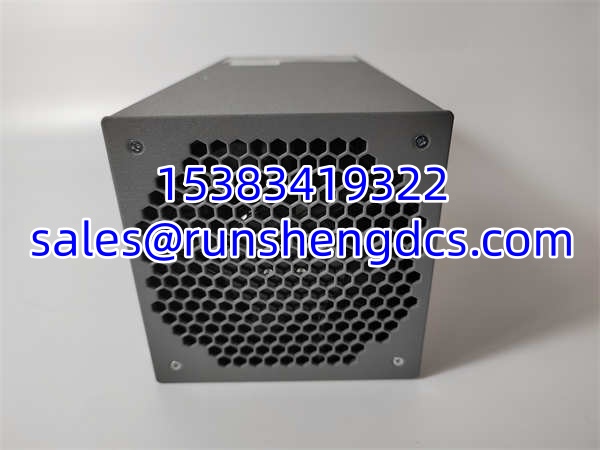

Product Introduction
When you’re integrating a power supply into a 19-inch rack-mounted industrial control cabinet or a semiconductor test fixture, you need something that doesn’t rely on a fan to stay cool — because fans fail, and in a cleanroom or a sealed enclosure, fan failure means unscheduled downtime. The Pioneer Magnetics PM3326B-6-1-2-E was built for exactly that scenario. At 1000W output, it delivers 56VDC at 17.9A through natural convection cooling alone, converting a universal 90-264VAC input with 90% efficiency and 2kVrms of input-to-output isolation.
The 56VDC output is a telltale sign of its intended application domain. This isn’t a generic 24VDC control power supply — 56VDC sits right in the sweet spot for telecom rectifier systems (nominal 48V battery banks float at ~54-56V), industrial servo drive bus pre-charge circuits, and certain semiconductor process equipment architectures. The 20ms hold-up time gives downstream control systems enough ride-through to handle brief AC input sags without tripping. And the fanless convection-cooled design means zero acoustic noise and zero fan bearing wear — critical for equipment deployed in cleanrooms, medical diagnostic systems, or any environment where particulate generation from fan wear is unacceptable.
The OEM part number 80026-529-01 indicates this unit was built to a specific customer specification, likely for integration into a larger system (semiconductor test equipment, medical imaging systems, or industrial process control racks). Pioneer Magnetics has long been a supplier of custom and semi-custom power modules to OEMs, and the 80026-529-01 suffix is the OEM’s internal part identifier mapped to the PM3326B base design.
Troubleshooting Quick Reference
| Fault | Likely Cause | Probability | Quick Check | Fix |
|---|---|---|---|---|
| No DC output voltage | AC input not present or input wiring loose | ~70% | Measure AC voltage at input terminals; verify 90-264VAC range | Check input wiring connections; verify AC source is live and within spec |
| Output voltage unstable or dropping | Overload condition or degraded output capacitors | ~65% | Measure output current draw; compare to 17.9A rated max | Reduce load to within spec; if capacitors are bulging/leaking, module needs rebuild or replacement |
| Module overheats despite convection design | Ambient temperature exceeds 70°C or airflow blocked | ~60% | Measure ambient temperature near module; check for obstructed ventilation | Ensure adequate clearance around module; reduce ambient temperature; verify derating above 55°C |
| Overvoltage protection trips | Output OVP threshold exceeded or internal regulation fault | ~55% | Measure output voltage at trip moment; compare to 56VDC nominal | If output exceeds ~60-62VDC before trip, internal regulation may be faulty — replace module |
| Short-circuit protection engages | Downstream short on 56VDC bus | ~50% | Disconnect load; measure resistance across output terminals | Locate and clear downstream short; reset module by cycling AC input |
| Intermittent output dropout | Input voltage sag below 90VAC or loose terminal connection | ~45% | Monitor AC input voltage during dropout events; check terminal torque | Verify AC source stability; tighten input/output terminal connections to specified torque |
