Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-PDIL01 |
| Part Number | 51405040-175 |
| Product Type | Digital Input 24 VDC Module |
| I/O Block Name | DI-24 |
| Number of Channels | 32 digital inputs |
| Rated Voltage | 24 VDC nominal |
| Input Type | Sink / source, IEC Class I sink input |
| Logic 1 Threshold | ≥ 15 VDC or ≥ 2.5 mA |
| Logic 0 Threshold | ≤ 5 VDC or ≤ 1 mA |
| Input Current | Max 90 mA from field supply; max 130 mA from backplane 5 VDC |
| Isolation | 500 VAC opto-isolation, field-to-logic, 1 minute |
| Cable Length | Up to 500 m shielded; 300 m unshielded |
| Max Operating Temp | 55°C (verify nameplate for exact rating) |
| Hazardous Location | FM Approved Class I Div 2; ATEX Zone 2, Ex nA IIC T4 |
| Compatible Controller | Honeywell Experion C300 controller |
| Compatible Terminal Board | CC-TDIL01 (non-redundant DI terminal board) |
Product Introduction

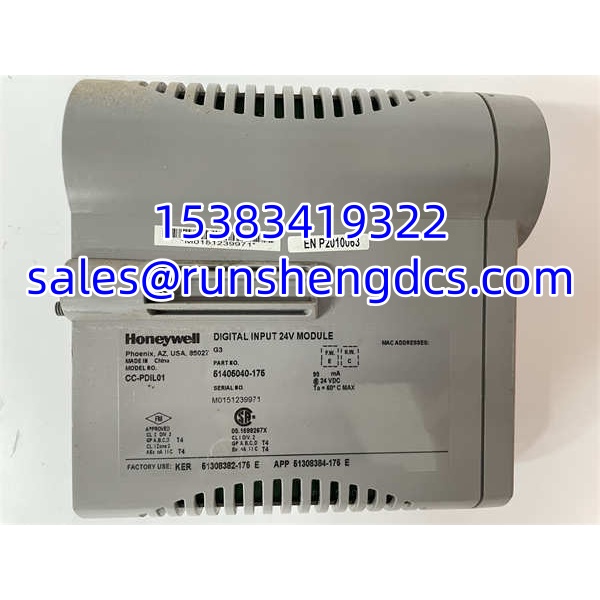

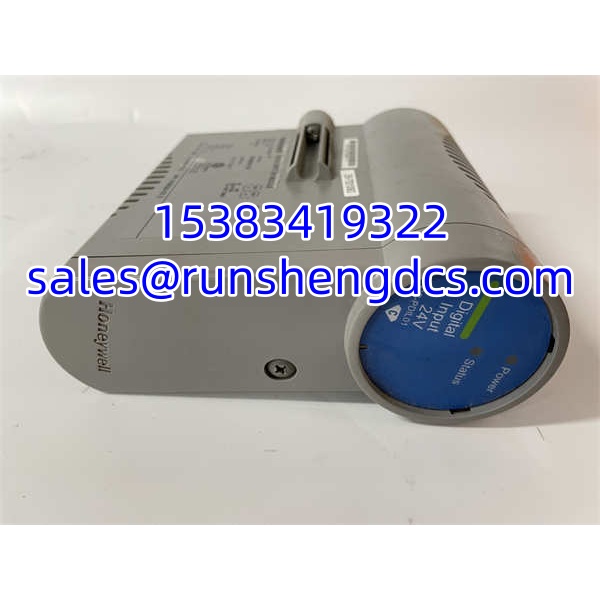

When a 32-point DI module drops offline in an Experion rack, the first thing that disappears is visibility — valve positions, permissive contacts, and auxiliary status signals all go dark at once. The CC-PDIL01 is the workhorse 24 VDC digital input module for Honeywell Experion PKS systems, sitting in the PM I/O chassis alongside the C300 controller and feeding discrete field status back into the control strategy.
It accepts 32 channels of 24 VDC field contacts, with 500 VAC opto-isolation between field and logic sides. The module is FM and ATEX rated for Class I Div 2 / Zone 2 hazardous locations, making it suitable for process cabinets in refining, chemical, and power generation applications. It mounts to the CC-TDIL01 terminal board and communicates with the C300 over the PM I/O backplane. Bottom line — it is a straightforward replacement, but only if the terminal board, firmware revision, and I/O map actually match the installed configuration.
QA/QC Transparency SOP
- Intake & Origin Verification — Record full model CC-PDIL01, part number 51405040-175, firmware revision, serial number, and cabinet origin. Inspect for bent DIN pins, corroded connectors, or prior rework on the PCB.
- Live Functional Testing — Power the module on a verified Honeywell PM I/O test rack or compatible bench setup. Confirm backplane communication, LED status, and channel response using 24 VDC dry-contact simulation across multiple points.
- Electrical Parameter Tests — Measure field-side input current, backplane 5 VDC draw, and opto-isolation integrity. Check for shorts between adjacent channels, abnormal current draw, or failed isolation barriers.
- Firmware/Config Verification — Read firmware revision and module identity via Experion diagnostics. Back up readable configuration data and confirm compatibility with the target C300 firmware level.
- Final QC & Anti-Static Packaging — Photograph nameplate, PCB condition, and test readings. Pack in anti-static shielding with desiccant and rigid protection. Include a test summary and traceability record.
Field Engineer Gotchas
- Channel count confusion — Some surplus listings claim 16 channels. CC-PDIL01 is a 32-channel module. If you receive a 16-channel unit, it is the wrong part.
- Terminal board mismatch — The CC-PDIL01 pairs with the CC-TDIL01 terminal board (non-redundant). Installing it on a DO or AI terminal board will not work and can damage connectors.
- Sink vs. source wiring — This is an IEC Class I sink input module. Field wiring polarity must match the sink configuration. Reversed polarity will cause channels to read false-off.
- Firmware revision drift — A replacement module with an older or newer firmware revision may require a C300 firmware compatibility check. Do not assume plug-and-play across all Experion PKS versions.
- Field supply quality — The module draws up to 90 mA from the field 24 VDC supply. A marginal or noisy field supply can cause intermittent channel faults that look like module failures.
- Hot-swap caution — PM I/O modules support modular replacement, but hot-swap eligibility depends on the Experion PKS version, C300 firmware, and I/O configuration. Confirm the plant procedure before pulling the module live.
Honeywell CC-PDIL01
Application Scenarios
- Refinery process monitoring — Reading valve limit switches, pump run contacts, and pressure switch status in a Honeywell Experion I/O rack.
- Chemical plant interlock inputs — Accepting discrete permissive and trip signals from field contacts where 24 VDC dry contacts feed the control logic.
- Power plant balance-of-plant I/O — Monitoring damper positions, fan status, and auxiliary equipment contacts in hazardous-location-rated cabinets.
- Outage spare-parts validation — Pre-testing a replacement CC- before a scheduled turnaround to minimize commissioning risk.
FAQ
It is a 32-channel digital input module. Some third-party listings incorrectly describe it as 16 channels.
What terminal board does it use?
It pairs with the CC-TDIL01 non-redundant DI terminal board.
Is it sink or source input?
It is an IEC Class I sink input type, compatible with both sink and source field wiring when wired correctly.
What is the part number?
The associated part number is 51405040-175.
Is it hazardous-location rated?
Yes. It carries FM Class I Div 2 and ATEX Zone 2 (Ex nA IIC T4) approval.
Can I hot-swap this module?
PM I/O modules are designed for modular maintenance, but hot-swap eligibility depends on the Experion PKS version and I/O configuration. Confirm the plant procedure before removing a live module.
Does it support SOE (Sequence of Events)?
No. The CC- is a standard DI module. For SOE functionality, the CC-PDIS01 module is the appropriate variant.
Do you supply calibration certificates?
This is a digital input module, not an analog measurement instrument, so formal calibration certificates typically do not apply. Functional test reports and incoming inspection records are the more relevant documentation.
