Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part number | 51306673-100 EPNI |
| Product type | Ethernet interface / network communication module |
| Platform | Honeywell Experion PKS |
| Primary function | Ethernet network interface for PKS controllers and racks |
| Network protocol | Ethernet TCP/IP, Modbus TCP/IP |
| FTE support | Compatible with Fault Tolerant Ethernet (FTE) architecture |
| Operating temperature | 0°C to 50°C |
| Installation | Rack-mounted in Experion PKS control cabinet |
| Integration | Connects CPM/controllers, workstations, servers, and third-party systems |
| Condition | Typically surplus or refurbished |

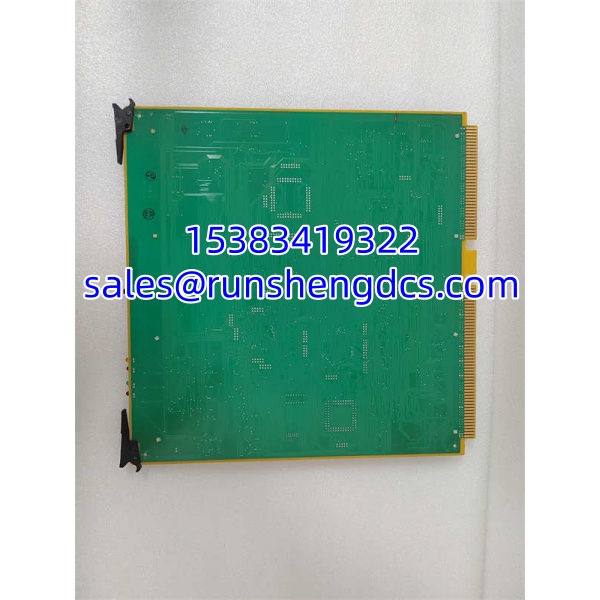

Product Introduction
The 51306673-100 EPNI is an Ethernet interface module for the Honeywell Experion PKS platform. In a PKS cabinet, it sits between the controller hardware and the plant network, allowing control data, status, and alarms to move across Ethernet TCP/IP and, where configured, Modbus TCP/IP. It can participate in Honeywell’s Fault Tolerant Ethernet architecture, which uses redundant physical paths to maintain network availability if one link or switch fails.
This is not a generic Ethernet card. Its firmware, driver support, and mechanical fit must match the installed Experion PKS release. A module that physically seats in the rack may still fail to initialize if the firmware revision, FTE driver version, or controller release is incompatible. For brownfield systems, the safest approach is to match the existing module’s revision and confirm the PKS release before ordering.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm full part number 51306673-100 EPNI, hardware revision, and serial number. Photograph nameplate, Ethernet port, connector face, and mounting hardware. Reject units with damaged ports, bent pins, or missing labels.
- Live Functional Testing: Install into a compatible Experion PKS test rack or approved bench setup. Verify module power-up, LED status, and recognition by the PKS system or configuration software.
- Communication Testing: Test Ethernet link negotiation, TCP/IP connectivity, and Modbus TCP/IP register access where applicable. Verify no packet loss, address conflicts, or intermittent link drops under sustained communication.
- Firmware & Compatibility Verification: Record firmware revision and compare against the installed Experion PKS release. Confirm FTE driver compatibility if the module will operate in a redundant FTE network.
- Final QC & Anti-Static Packaging: Label with part number, firmware revision, tested protocols, LED status, and PKS release compatibility. Pack in ESD-safe materials with port protection. Include photos and a test summary.
Field Engineer Gotchas
- EPNI is not a universal Ethernet card: It must match the Experion PKS release, controller type, and cabinet architecture. Do not substitute based on part number alone.
- Firmware revision matters: A newer or older firmware revision may not handshake correctly with existing CPMs, servers, or FTE drivers. Always record the revision before replacing.
- FTE vs standard Ethernet: If the system uses Fault Tolerant Ethernet, the module must support the installed FTE configuration. Plugging it into a non-FTE port or mismatched switch topology can cause communication loss.
- Modbus TCP mapping must be verified: If the EPNI is used for Modbus integration, confirm register mapping, polling rate, and endpoint addressing before and after replacement.
- Surplus listings are inconsistent: Some vendors label similar Honeywell Ethernet modules interchangeably. Verify the exact 51306673-100 EPNI marking and revision rather than relying on generic “PKS Ethernet module” descriptions.
- Operating environment limits: The module is rated for 0–50°C. Installation in unconditioned cabinets or near heat sources can cause premature failures.

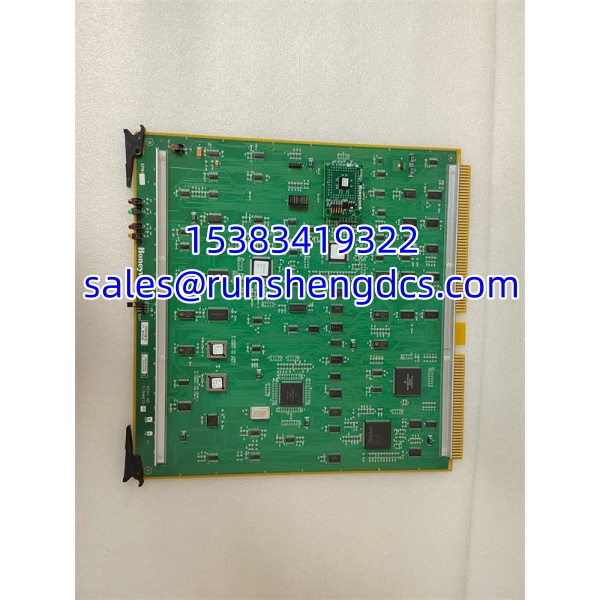

HOINEYWELL 51306673-100 EPN
Application Scenarios
- Experion PKS controller network integration: Provides Ethernet connectivity for CPMs or controller racks, enabling communication with operator stations, engineering stations, and servers over FTE or standard Ethernet.
- Modbus TCP/IP integration with third-party systems: Allows Experion PKS to exchange process data with PLCs, analyzers, skid packages, or external HMIs via Modbus TCP/IP.
- Replacement for failed Ethernet interface: When a controller rack loses network visibility but the controller itself remains healthy, the EPNI module, cabling, and switch port become primary troubleshooting targets.
FAQ
What is the 51306673-100 EPNI?
It is an Ethernet interface module for Honeywell Experion PKS, providing TCP/IP and Modbus TCP/IP connectivity for the control system.
Does it support FTE?
Yes, the EPNI family is associated with Experion PKS Fault Tolerant Ethernet architecture. Confirm FTE driver and release compatibility before installation.
Can it communicate via Modbus TCP/IP?
Yes, it supports Modbus TCP/IP for integration with third-party devices and systems.
Is it compatible with all Experion PKS versions?
Not automatically. Compatibility depends on the installed PKS release, firmware revision, and controller hardware. Verify against the Honeywell documentation for your system.
What is the operating temperature?
0°C to 50°C per available product data.
Should I buy this as surplus?
It can be a practical spare if the firmware revision, physical condition, and PKS release compatibility are documented. Avoid units without test records or revision information.
