Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 51196655-100 |
| Model / Family | ACX633 |
| Product Type | Dual-node power supply module |
| System Fit | Honeywell TDC 3000 / TPS DCS |
| Input Voltage | Typically 100–240 VAC, 50/60 Hz |
| Output Voltage | +24 VDC nominal |
| Protection | Overvoltage, overcurrent, short-circuit protection |
| Configuration | Dual node, EC version |
| Availability | Surplus / refurbished / new old stock |
| OEM Documentation | Confirm against Honeywell TDC 3000/TPS manuals |
Product Introduction
The Honeywell 51196655-100 ACX633 is a dual-node DCS power supply module used in legacy Honeywell TDC 3000 and TPS systems. It is not a PLC I/O card or a general-purpose industrial power supply; it belongs to Honeywell’s DCS rack architecture, where it provides regulated DC power to controllers, communication modules, and associated backplane loads.
The “dual node” designation means it is intended to support redundant or dual-node rack configurations, while the “EC” suffix typically refers to an enhanced or export-compliant configuration in Honeywell legacy documentation. Because this module sits in a critical power path, replacement decisions should be based on the exact rack type, node configuration, and existing power architecture — not just the part number.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm Honeywell branding, part number 51196655-100, model ACX633, serial number, and revision. Inspect for burnt components, swollen capacitors, corroded terminals, or damaged rack connectors.
- Live Functional Testing: Install into a compatible Honeywell DCS test rack or verified spare rack. Apply rated AC input and verify DC output voltage stability under load.
- Electrical Parameter Tests: Measure output voltage ripple, load regulation, overcurrent trip behavior, and insulation resistance. Verify protection functions do not nuisance-trip during normal startup.
- Rack/Node Verification: Confirm dual-node behavior, rack recognition, and compatibility with adjacent controller or communication modules. Check that redundancy or load-sharing behavior matches the existing system.
- Final QC & Anti-Static Packaging: Label with part number, test date, measured output voltage, and pass/fail status. Pack with connector protection, anti-static bag, and rigid outer packaging.
Field Engineer Gotchas
- Do not treat this as a generic 24 VDC power supply. It is a Honeywell DCS rack power module. Even if the output voltage looks correct, rack signaling, slot rules, and node logic may prevent proper operation in a non-Honeywell system.
- “Dual node” is not cosmetic. The module may participate in redundancy, load sharing, or node-specific power distribution. Replacing a single-node supply with a dual-node version — or vice versa — requires confirmation.
- EC revision matters. The 51196655-100 is listed as an EC dual-node power supply, but Honeywell legacy racks may have multiple power variants. Verify against the existing nameplate and rack manual.
- AC input wiring must be correct. Wrong phase, missing ground, or unstable plant AC can cause intermittent resets, protection trips, or premature module failure.
- Surplus units may lack load testing. Many sellers only confirm “powers on.” For DCS power modules, require loaded output verification and protection function checks.

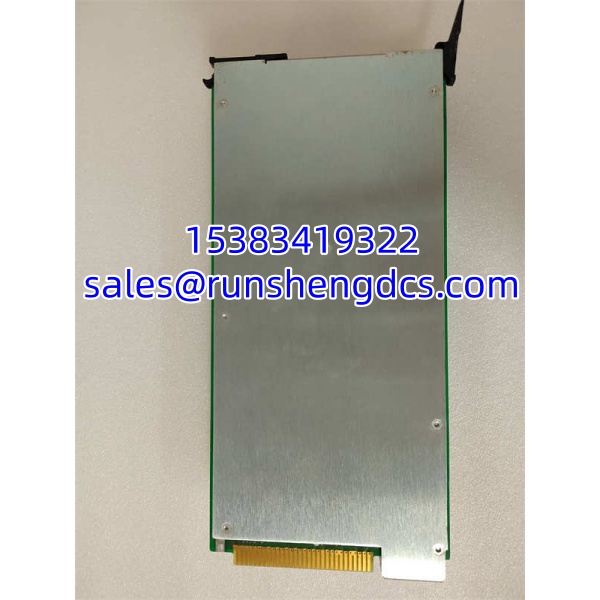

Honeywell 51196655-100 ACX633
Application Scenarios
- TDC 3000 rack power restoration. Replaces a failed dual-node power supply in a legacy Honeywell DCS cabinet where OEM spares are scarce.
- TPS system maintenance. Supports continued operation of GUS/US operator stations and controller racks during brownfield lifecycle management.
- Redundant node power replacement. Restores dual-node power integrity where one supply has degraded or tripped repeatedly.
- DCS spare pool buildup. Provides a verified replacement for plants running Honeywell TDC 3000/TPS with long lead times on legacy parts.
FAQ
Is 51196655-100 a general-purpose power supply?
No. It is a Honeywell DCS dual-node power supply module for TDC 3000/TPS systems.
What does ACX633 mean?
ACX633 is the model/family identifier associated with the 51196655-100 power supply in surplus and distributor listings.
Can I replace it with another Honeywell power module?
Not automatically. Even within the TDC 3000/TPS family, power modules may differ by slot, node count, current rating, and EC revision.
What input voltage does it accept?
Listings typically specify 100–240 VAC, 50/60 Hz, but always confirm against the actual nameplate.
What output does it provide?
Nominal +24 VDC for downstream DCS modules, with overvoltage, overcurrent, and short-circuit protection.
Is this still available new from Honeywell?
Treat availability as legacy/surplus unless confirmed by an authorized Honeywell distributor. Many market units are refurbished or new old stock.
What should I check before buying?
Confirm the part number, ACX633 model, EC/dual-node designation, rack compatibility, and whether the supplier has performed loaded output testing.
