Description
Key Technical Specifications
- Power Supply: 24V DC (±10%)
- Fan Configuration: Triple Axial Fans
- Airflow Capacity: 300 m³/h (176 CFM)
- Redundancy: Dual Power Supply Inputs
- Diagnostics: Integrated Fan Run Monitor
- Voltage Monitoring: Over/Under Voltage Protection
- Mounting: Standard 19-Inch Rack (1U)
- Operating Temp: -20°C to +60°C
- Protection Class: IP20
- Control Signal: Digital or Analog Speed Control
- Weight: Approx. 1.8 kg
- Dimensions: 120 x 80 x 40 mm (Module footprint)
Product Introduction
Overheating kills safety controllers faster than logic faults. The HIMA K9203 fan unit sits in the rack to keep CPUs and I/O modules within spec. It pulls ambient air across the backplane.
Three axial fans provide continuous airflow with built-in run monitoring. If one fan stalls, the monitor alerts the SIS controller before thermal shutdown occurs. Redundant 24V DC inputs ensure cooling survives a single power supply failure.

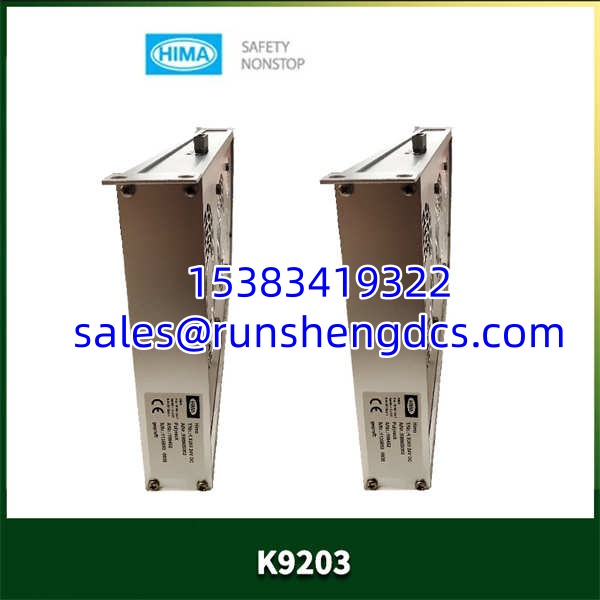

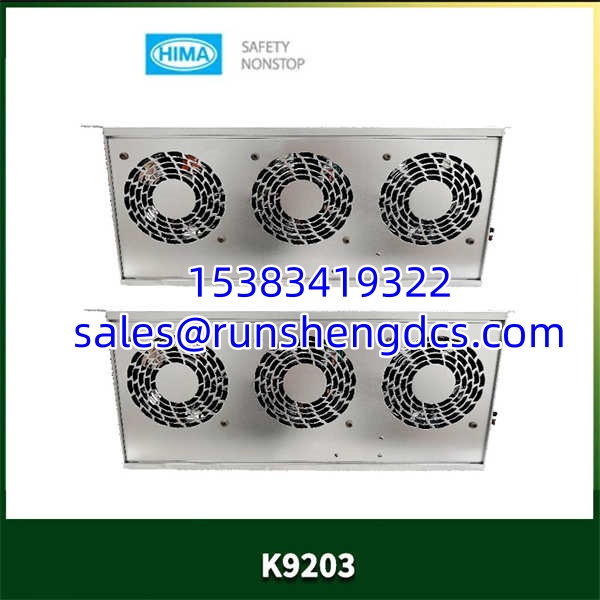

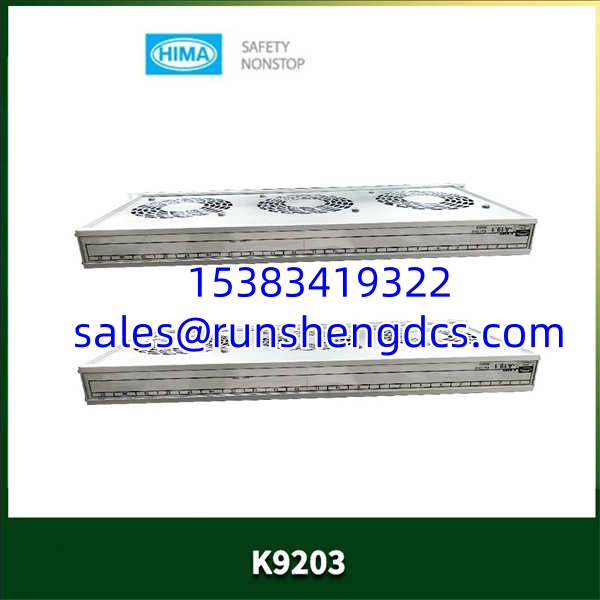

HIMA K9203
Troubleshooting Quick Reference
- Symptom: Fan run alarm active. Probable Cause: Single fan motor failure. Quick Check: Listen for bearing noise; measure RPM. Fix: Replace K9203 unit immediately.
- Symptom: No fan operation. Probable Cause: 24V DC supply loss. Quick Check: Measure voltage at fan unit terminals. Fix: Restore 24V DC ±10%; check rack fuse.
- Symptom: Intermittent alarms. Probable Cause: Dust buildup on blades. Quick Check: Visual inspection through rack vents. Fix: Clean fans with compressed air; schedule PM.
- Symptom: Excessive noise/vibration. Probable Cause: Bearing wear or loose mount. Quick Check: Physical inspection while running. Fix: Replace unit; do not attempt bearing repair.
Application Scenarios & Pain Points
- Offshore Platforms: Salt-laden air corrodes standard fans. HIMA units use coated components for marine environments.
- Refinery SIS Cabinets: High ambient temps (50°C+) push cooling limits. Triple-fan design maintains margin.
- Power Plant Control Rooms: Nuisance fan alarms cause operator fatigue. Integrated monitoring reduces false trips.
HIMA K9203
Compatible Replacement Models
- ✅ Drop-in Replacement: HIMA K9203A. Same pinout, same rack slot, same configuration. Pay premium for new stock.
- ⚠️ Software Compatible: N/A. Fan units have no firmware. Mechanical/electrical fit is the only concern.
- ❌ Hardware Incompatible: Generic 19″ rack fans. May fit physically but lack HIMA run monitoring integration. Avoid unless emergency bypass is approved.
