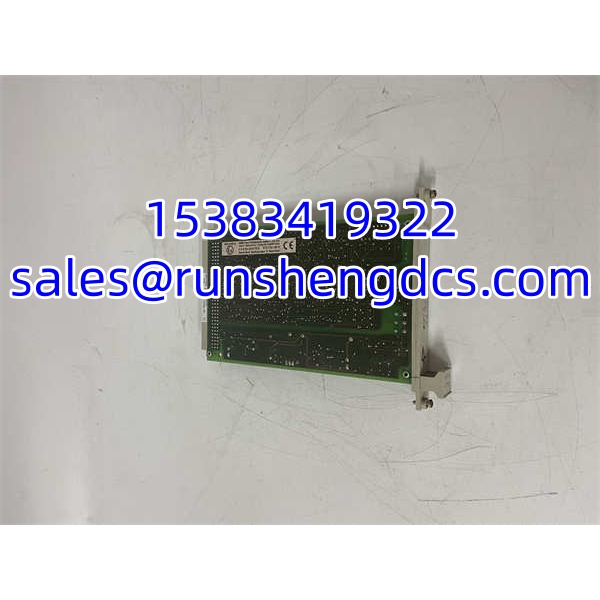

HIMA F7553 | I/O Bus Coupling Module for PES H51q, B9302

Description

Key Technical Specifications

Product Introduction

In H51q safety systems, the weak link is rarely the CPU itself — it is the I/O expansion path. The F7553 sits exactly there: a coupling module that links the H51q central unit to a B9302 I/O subrack and keeps the I/O bus, watchdog supervision, and subrack power monitoring under control. It does not execute safety logic on its own. It makes remote I/O visible to the safety CPU.

Its practical value is maintainability without compromising diagnostics. The front-panel WD switch allows a supervised watchdog bypass during module replacement, which matters when a failed coupler must be swapped without forcing an unnecessary plant trip. With S1–S4 hardware addressing and continuous self-test, it keeps the I/O expansion deterministic. Treat it as legacy hardware; do not assume drop-in compatibility across all H51q revisions without checking the project documentation.

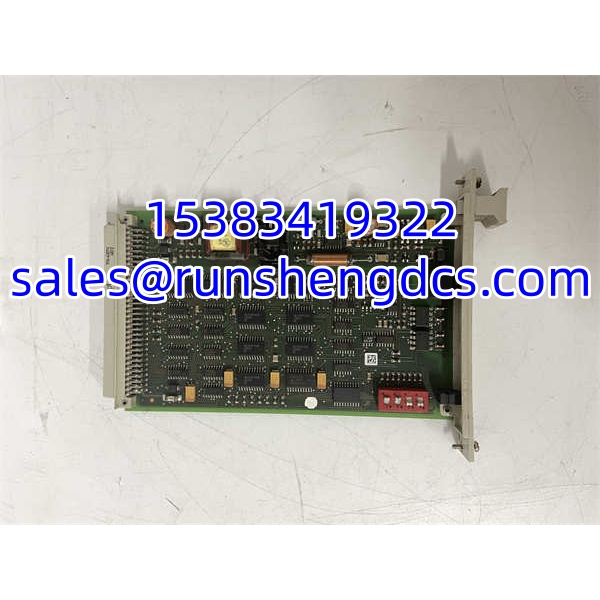

HIMA F7553

QA/QC Transparency SOP

1. Intake & Origin Verification: Record model number, full suffix, serial number, revision label, and rack markings. Reject units with burnt connectors, corroded pins, or missing coding-switch covers.
2. Live Functional Testing: Install the F7553 in a compatible B9302 subrack on a known-good H51q test bench. Power the module at 5 V DC and 24 V DC. Confirm WD LED, SEL LED, and communication with the central unit.
3. Electrical Parameter Tests: Measure supply current at 5 V DC and 24 V DC. Check terminal continuity, insulation resistance, and backplane contact integrity. Flag any draw outside expected ranges.
4. Firmware/Config Verification: Read S1–S4 switch settings and confirm bus/subrack address matches the test configuration. Verify watchdog bypass switch operation and restore it to normal after testing.
5. Final QC & Anti-Static Packaging: Label with serial number, switch settings, and test results. Pack in anti-static material with a printed test report. Do not release without a matched serial-to-report record.

Field Engineer Gotchas

• Wrong subrack assumption: The F7553 belongs in a B9302 I/O subrack for H51q. It will not fit arbitrary third-party racks just because the TE width looks similar. Solution: confirm B9302 compatibility before ordering.
• S1–S4 address mismatch: If the coding switches do not match the H51q project configuration, the central unit will not see the subrack correctly. Solution: photograph switch positions before removal and verify against the SIS I/O map.
• Watchdog bypass misuse: The WD switch can suppress the watchdog signal during replacement, but leaving it in bypass defeats a critical safety diagnostic. Solution: use it only during approved maintenance, then return it to normal and confirm WD status.
• Power rail confusion: The module uses both 5 V DC and 24 V DC. A weak 5 V rail on the subrack can cause intermittent communication faults that look like module failure. Solution: measure voltage at the subrack under load.
• Hot-swap risk: The WD bypass may support supervised replacement, but only if the safety procedure and system architecture allow it. Solution: follow the site SIS maintenance procedure; do not treat this as a generic hot-swap card.

HIMA F7553

Application Scenarios

• Offshore platform F&G expansion: Adds a remote I/O subrack for flame and gas detectors while keeping watchdog supervision tied back to the H51q central unit.
• Refinery ESD I/O extension: Connects additional digital input and output modules to an existing H51q rack without redesigning the main cabinet.
• Power plant turbine trip auxiliary I/O: Provides a diagnosed expansion path for auxiliary trip signals while the primary overspeed protection remains on dedicated hardware.
• Chemical plant brownfield upgrade: Replaces a failed F7553 coupler during a turnaround to restore communication with an existing B9302 subrack.

FAQ

No. It is an I/O bus coupling module for H51q subracks. It connects the central unit to remote I/O; it does not run safety logic by itself.

Which subrack does it fit?
It is designed for the I/O subrack in HIMA PES H51q systems.

What do the S1–S4 switches do?
They set the I/O bus number and subrack number. If they are wrong, the central unit cannot address the subrack correctly.

Can I replace it without tripping the process?
The front-panel WD switch allows supervised watchdog bypass during replacement, but only if the safety procedure permits it. Never assume hot-swap is allowed without approval.

Does it work in H41q or HIMatrix systems?
It is documented for H51q I/O subracks. Do not force it into other families without OEM confirmation.

Is new stock still available?
Most listings today are surplus or refurbished. Verify serial number, revision, and test history before purchase.
