Description
Key Technical Specifications
- Processor: 600 MHz Intel EP80579 Microprocessor
- Memory: 256 MB DDR2 SDRAM with SRAM and Flash
- Network Interfaces: Dual redundant Ethernet (ENET1/ENET2) with RJ-45
- Communication Protocols: TCP/IP, Profinet, Modbus TCP/IP, Ethernet/IP
- Safety Integrity Level: SIL3 Certified
- Operating System: VxWorks or QNX (GE ControlST configured)
- I/O Compatibility: Direct integration with Mark VIe IS420 I/O Packs
- Thermal Design: Low-power, fanless heat dissipation
- Environmental Rating: Rated for high temp, high humidity, and industrial vibration
Product Introduction
Gas turbine control loops demand zero latency and absolute fault tolerance. The GE IS420UCSBH1A serves as the primary UCSB (Universal Control System Board) processor within the Mark VIe architecture, executing sequence control, combustion optimization, and turbine protection logic. It acts as the central brain, receiving analog/digital inputs and driving field actuators while maintaining continuous data synchronization with HMI and SCADA systems.
Built around a 600 MHz Intel EP80579 processor and 256 MB of DDR2 SDRAM, this module handles intensive real-time calculations without breaking a sweat. Its true value lies in the dual redundant Ethernet ports and SIL3 safety certification. If the primary controller fails, the redundant UCSB module takes over seamlessly. Bottom line — it’s a fanless, highly reliable processor designed to survive the brutal thermal and vibrational environment of a power plant.

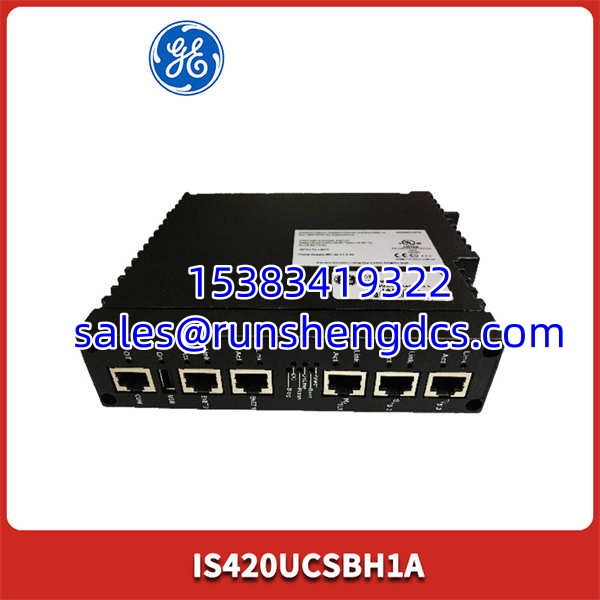

GE IS420UCSBH1A
QA/QC Transparency SOP
We don’t ship blind. Here is how we validate these processors:
- Intake & Origin Verification: We inspect the PCB silkscreen, BGA solder joints, and serial numbers to guarantee authentic GE manufacturing and rule out board-level refurbishments.
- Live Functional Testing: The IS420UCSBH1A is seated in a Mark VIe test rack to verify successful boot-up, VxWorks OS initialization, and ControlST software handshake.
- Electrical Parameter Tests: We measure power rail voltages and test the RJ-45 link lights to confirm both ENET1 and ENET2 ports establish physical layer connectivity.
- Firmware/Config Verification: We read the flash memory to log the exact firmware revision, ensuring it matches the customer’s existing redundant pair.
- Final QC & Anti-Static Packaging: The module is wrapped in anti-static shielding and packed with rigid foam to protect the backplane connector pins during transit.
Field Engineer Gotchas
- Firmware Rev Mismatch: Mark VIe redundancy requires identical firmware. War Story: I’ve seen a plant trip because a tech swapped in a newer UCSB board without matching the older standby controller’s firmware, causing a continuous sync-fault loop. Always verify the exact revision tag before racking it.
- Backplane Seating Force: These boards have dense backplane connectors. Pushing them in crooked will bend the pins. Fix: Use the extraction tool and apply even pressure on both sides of the front panel until the locking levers click. Never use a hammer.
- ESD Sensitivity: The EP80579 CPU and DDR2 RAM are highly susceptible to static. Fix: Ground yourself and the chassis before touching the board. A static zap can silently degrade the flash memory, leading to random boot failures weeks later.
Application Scenarios
- Heavy-Duty Gas Turbines: Managing start-up sequences, speed control, and exhaust temperature limits on GE Frame 7/9 turbines.
- Combined Cycle Power Plants: Coordinating steam turbine and heat recovery steam generator (HRSG) logic with dual-redundant safety.
- Oil & Gas Pipeline Compression: Executing anti-surge control and emergency shutdown (ESD) logic in remote compressor stations.
GE IS420UCSBH1A
FAQ
Q: Can I mix this UCSBH1A with a UCSBH3A in a redundant pair?
No. Redundancy requires identical hardware and firmware. Mixing H1A and H3A boards will cause the Mark VIe system to reject the sync and fault.
Q: Does this module come pre-loaded with ControlST logic?
No. The IS420UCSBH1A ships with base firmware only. You must download your specific turbine application logic via ControlST after installation.
Q: Is this module hot-swappable?
Yes, the Mark VIe architecture supports online replacement of UCSB modules. However, always verify the redundant controller is actively running and healthy before pulling the faulty board.
Q: What happens if both ENET ports fail?
The module will trigger a critical communication fault. While the local control logic continues to run, you will lose HMI visibility and remote command capability. Replace immediately.
Q: Are these tested with actual gas turbine I/O?
We test communications, boot integrity, and memory. Full turbine logic validation requires a site-specific ControlST build, which is done during your commissioning phase.
