Description
Key Technical Specifications
- Output Type: 0-20 mA Current Loop
- Channel Count: 8 Single-Ended Channels
- Accuracy: ±0.5% Full Scale
- Operating Temp: -30°C to +65°C
- Communication: Dual 100MB Full-Duplex Ethernet
- Power Supply: 24V DC (Backplane Powered)
- Isolation: 1500V AC Channel-to-Ground
- Dimensions: 8.26 cm (H) x 4.19 cm (W) x 12.1 cm (D)
- Connector: DC-37 Pin to Terminal Board
- Safety Rating: SIL 2/3 (IEC 61508)
- Processor: Integrated BPPB Local Processor
- Origin: USA
Product Introduction
Gas turbine trips at 2 AM. Fuel valve won’t close. You’re staring at a fault code pointing to the analog output pack, and the spare in the cabinet is three years old with questionable storage history. The IS220PAOCH1A isn’t just a card; it’s the final handshake between your MK VIe controller and the physical machinery. It takes the digital command and forces 0-20 mA through the loop to drive servo valves or IGV actuators. No signal, no valve movement. No valve movement, no power.
This module handles eight independent channels with ±0.5% accuracy, which matters when you’re tuning fuel staging during load transitions. Dual Ethernet ports keep it on the network even if one cable gets chewed by a rat or corroded by salt air. It’s built for the Mark VIe environment—vibration, heat, electrical noise. Honestly, if this card fails, your turbine is likely already in a safe state, but getting it back online requires an exact match. Don’t substitute. The 363A4940CSP5 ordering code matters for internal component revisions.
Troubleshooting Quick Reference
- No Output Current | Open Loop or Blown Fuse | High (70%) | Measure resistance across output terminals | Check field wiring continuity; replace 250mA fuse if present
- Output Stuck at 0mA | Backplane Power Loss | Medium (50%) | Verify 24V DC at backplane connector pins | Reseat card; check power supply module status LEDs
- Erratic/Noisy Signal | Ground Loop or Shield Issue | High (80%) | Check shield grounding at terminal board only | Isolate shield from chassis ground; verify single-point ground
- Card Not Recognized | Firmware Mismatch | Medium (40%) | Check MK VIe toolchest for card ID | Verify 363A4940CSP5 revision matches system config
- Over-Temp Fault | Cabinet Cooling Failure | Low (20%) | Measure ambient temp inside rack | Check cabinet fans/filters; card rated to 65°C max

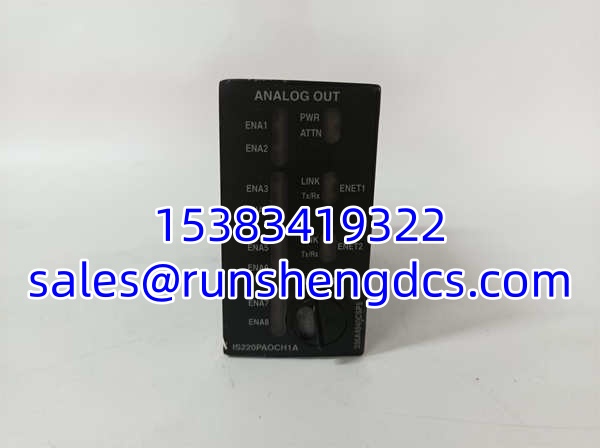

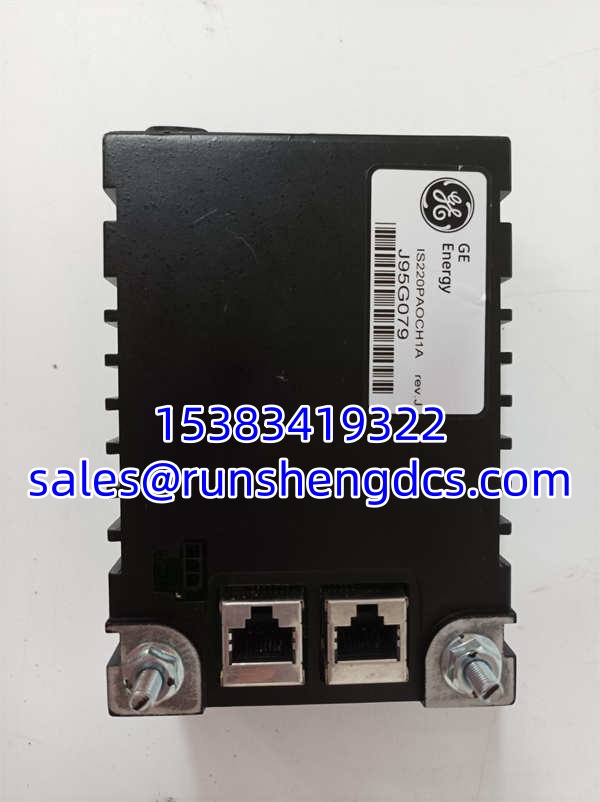

GE 363A4940CSP5 IS220PAOCH1A
Application Scenarios & Pain Points
- Gas Turbine Fuel Control: High-vibration environment near the turbine deck. Standard PLC cards fail from micro-fractures in solder joints within months. This pack uses conformal coating and mechanical retention designed for 5-500Hz vibration profiles.
- IGV Actuator Positioning: Requires precise 0-20 mA modulation. Cheap replacements drift with temperature swings, causing surge margin errors. The ±0.5% spec holds across the full -30°C to +65°C range.
- Steam Valve Trim: Dual Ethernet redundancy matters here. If the primary network switch fails during a load reject, the secondary port keeps the valve command active. Single-port cards leave you blind.
Compatible Replacement Models
- ✅ Drop-in Replacement: IS220PAOCH1A (Exact match required. Verify 363A4940CSP5 revision. No config change needed.)
- ⚠️ Software Compatible: IS200PAOCH1A (Mark VI legacy. Requires recompile and potential terminal board swap. Budget 4-6 hours engineering time.)
- ❌ Hardware Incompatible: IS220PAICH1A (Analog Input pack. Same form factor, wrong function. Do not force-install.)
